ES6500 K2 A/A (EA1) - Honda Generator, Made in Japan (SN: EA1-1160001 - EA1-9999999) CONTROL BOX (3) Parts Diagram

Generator, Made in Japan

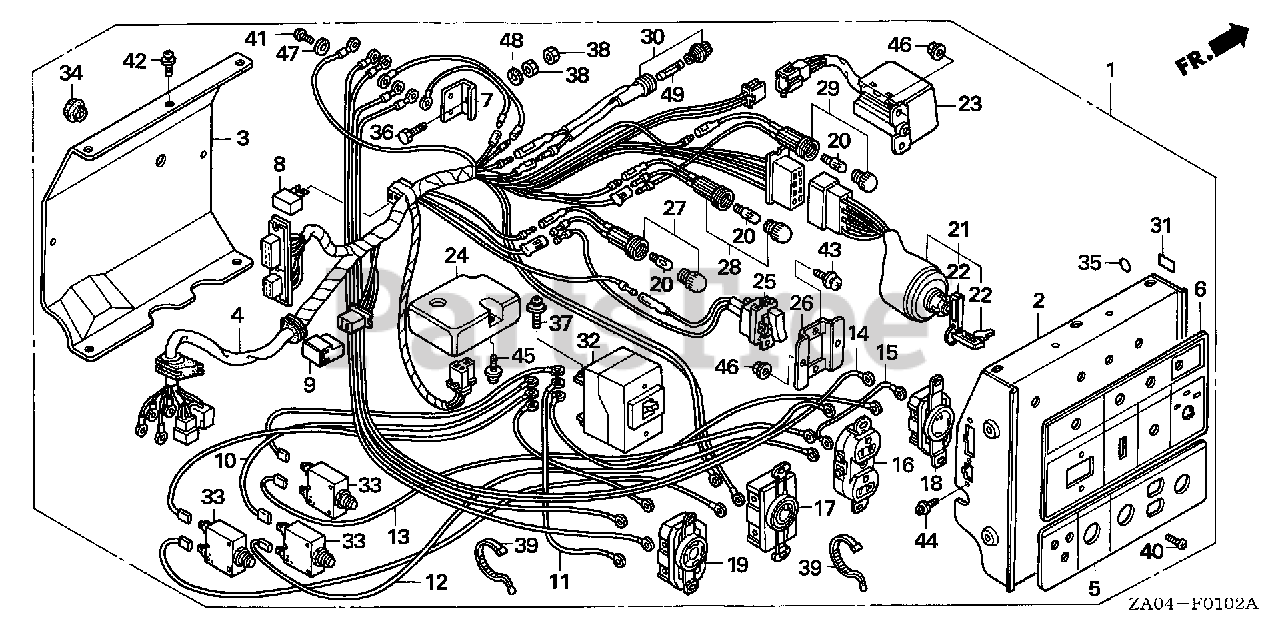

CONTROL BOX (3) Parts Diagram

  • Title

1

Honda 31400-ZA0-B33ZA

BOX ASSY., CONTROL *NH105* (MAT BLACK)

$

$

Not available

2

Honda 31402-ZA0-635

PANEL, FR.

$

$

Not available

3

Honda 31403-ZA0-014

COVER

$106.99

$

Usually ships in 3-6 days

0

4

Honda 31404-ZA0-B33

WIRE HARNESS

$

$

Not available

5

Honda 31405-ZA0-633

MARK, RECEPTACLE PANEL

$69.99

$

Usually ships in 3-6 days

0

6

Honda 31406-ZA0-633

MARK, SWITCH PANEL

$

$

Not available

7

Honda 31429-ZA0-004

PLATE, GROUND

$21.99

$

Usually ships in 3-6 days

0

8

Honda 31700-124-003

SEE PART DETAILS - PRI; RECTIFIER ASSY., SILICON (STANLEY) (Honda Code 0351346).
(Superseded to 31700-124-008)

$42.99

$

In Stock, only 2 left!

0

8

Honda 31700-124-008

SEE PART DETAILS - PRI; RECTIFIER ASSY., SILICON (SHINDENGEN)

$42.99

$

In Stock, only 2 left!

0

9

Honda 31710-893-003

STACK ASSY., DIODE (2.7A)

$126.99

$

Usually ships in 3-6 days

0

10

Honda 32191-ZA0-B32

SUB-WIRE (A)

$

$

Not available

11

Honda 32192-ZA0-B32

SUB-WIRE (B)

$

$

Not available

12

Honda 32193-ZA0-B32

SUB-WIRE (C)

$

$

Not available

13

Honda 32194-ZA0-B32

SUB-WIRE (D)

$

$

Not available

14

Honda 32195-ZA0-B32

SUB-WIRE (E)

$55.99

$

Usually ships in 3-6 days

0

15

Honda 32196-ZA0-B32

SUB-WIRE (F)

$

$

Not available

16

Honda 32330-ZS3-G31

RECEPTACLE (20A/125V) (EAGLE / RONG FENG)

$69.99

$

Usually ships in 3-6 days

0

17

Honda 32331-899-630

RECEPTACLE (20A/125V) (NOT AVAILABLE)

$40.99

$

Usually ships in 3-6 days

0

18

Honda 32332-880-710

SEE PART DETAILS - PRI; RECEPTACLE (3-PRONG) (30A/125V)
(Superseded to 32332-ZB4-630)

$50.99

$

In Stock, only 1 left!

0

19

Honda 32334-ZA0-631

SEE PART DETAILS - PRI; RECEPTACLE (30A/125-250V)

$38.99

$

Usually ships in 3-6 days

0

20

Honda 34909-ZA0-003

BULB, DASH (28V-3W)

$9.49

$

Usually ships in 3-6 days

0

21

Honda 35100-ZA0-013

SEE PART DETAILS - PRI; SWITCH ASSY., COMBINATION (Honda Code 3634904).
(Superseded to 35100-ZA0-023)

Note: Use up to Frame SN 1165065.

$124.99

$

Usually ships in 3-6 days

0

21

Honda 35100-ZA0-023

SEE PART DETAILS - PRI; SWITCH ASSY., COMBINATION

$124.99

$

Usually ships in 3-6 days

0

22

Honda 35111-880-013

SEE PART DETAILS - PRI; KEY (Honda Code 7635063).

$12.99

$

In Stock, Qty 5

0

23

Honda 35520-ZA0-003

RELAY, ALERT

$349.99

$

Usually ships in 3-6 days

0

24

Honda 36210-ZA0-003

CONTROL UNIT, IDLE

$330.99

$

Usually ships in 3-6 days

0

25

Honda 36214-ZA0-B22

SWITCH ASSY., IDLE CONTROL

$86.99

$

Usually ships in 3-6 days

0

26

Honda 36217-ZA0-803

STAY, SWITCH

$7.99

$

Usually ships in 3-6 days

0

27

Honda 37560-ZA0-003

SEE PART DETAILS - PRI; SOCKET ASSY., PILOT LAMP

$39.99

$

Usually ships in 3-6 days

0

28

Honda 37570-ZA0-003

SEE PART DETAILS - PRI; SOCKET ASSY., LAMP

$39.99

$

Usually ships in 3-6 days

0

29

Honda 37575-ZA0-003

SEE PART DETAILS - PRI; SOCKET ASSY., LAMP

$

$

Not available

30

Honda 38211-895-003

SEE PART DETAILS - SUP; HOLDER, FUSE
(Superseded to 38211-ZB5-831)

$33.99

$

In Stock, only 1 left!

0

31

Honda 38214-ZA0-640

MARK, FUSE CAPACITY

$1.99

$

Usually ships in 3-6 days

0

32

Honda 38220-ZA0-B32

BREAKER, CIRCUIT (25A)

$69.99

$

In Stock, only 1 left!

0

33

Honda 38240-ZC6-E31

SEE PART DETAILS - PRI; PROTECTOR, CIRCUIT (20A)

$87.99

$

Usually ships in 3-6 days

0

34

Honda 64315-GB4-000

GROMMET, TOP COVER

$2.99

$

Usually ships in 3-6 days

0

35

Honda 87534-892-640

SEE PART DETAILS - PRI; MARK, GROUND

$2.99

$

In Stock, Qty 5

0

36

Honda 90103-ZA0-642

BOLT, HEX. (8MM)

$7.49

$

Usually ships in 3-6 days

0

37

Honda 90103-Z08-E30

SCREW-WASHER (6X12)

$2.49

$

Usually ships in 3-6 days

0

38

Honda 90301-ZA0-004

NUT, HEX. (8MM)

$5.49

$

Usually ships in 3-6 days

0

39

Honda 90672-ZB7-811

TIE, CABLE (NATURAL 154X3.4)

$4.99

$

Usually ships in 3-6 days

0

40

Honda 93500-04006-0H

SEE PART DETAILS - PRI; SCREW, PAN (4X6) (Honda Code 0285627).

$1.49

$

In Stock, Qty 7

0

41

Honda 93500-06012-3J

SCREW, PAN (6X12)

$2.49

$

Usually ships in 3-6 days

0

42

Honda 93891-04008-08

SCREW-WASHER (4X8)

$1.99

$

In Stock, Qty 10

0

43

Honda 93892-03006-08

SCREW-WASHER (3X6)

$1.49

$

Usually ships in 3-6 days

0

44

Honda 93892-04010-08

SEE PART DETAILS - PRI; SCREW-WASHER (4X10)

$1.99

$

Usually ships in 3-6 days

0

45

Honda 93892-05010-08

SEE PART DETAILS - PRI; SCREW-WASHER (5X10)

$1.99

$

Usually ships in 3-6 days

0

46

Honda 94050-04080

NUT, FLANGE (4MM)

$1.99

$

In Stock, Qty 8

0

47

Honda 94111-06800

WASHER, SPRING (6MM) (Honda Code 0258210).

$1.99

$

Usually ships in 3-6 days

0

48

Honda 94111-08000

SEE PART DETAILS - PRI; WASHER, SPRING (8MM) (Honda Code 0058982).

$1.49

$

Usually ships in 3-6 days

0

49

Honda 98200-21500

FUSE B (15A)

$1.49

$

Usually ships in 3-6 days

0
