ES6500 K1 AR (EA1) - Honda Generator, Made in Japan (SN: EA1-1000005 - EA1-1099999) FRONT HOUSING Parts Diagram

Generator, Made in Japan

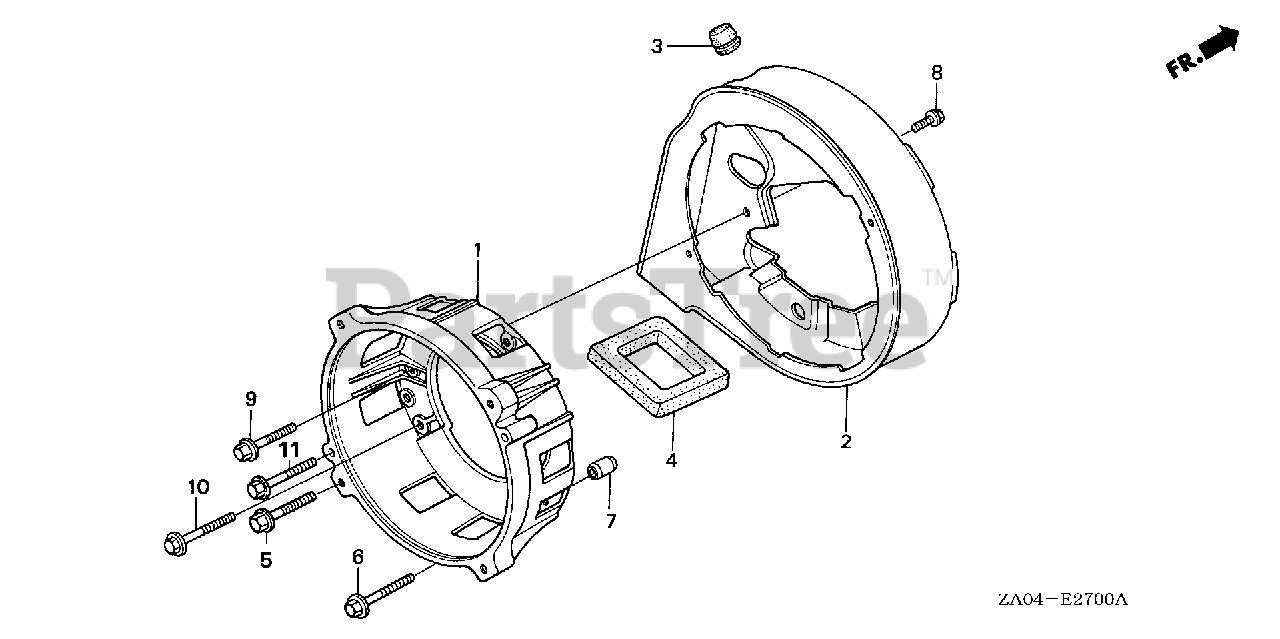

FRONT HOUSING Parts Diagram

  • Title

1

Honda 31109-ZA0-950

HOUSING, FR.

$281.99

$

Usually ships in 3-6 days

0

2

Honda 31315-ZA0-930

COVER, DUCT

$151.99

$

Usually ships in 3-6 days

0

3

Honda 31316-ZA0-000

GROMMET, DUCT COVER

$6.49

$

Usually ships in 3-6 days

0

5

Honda 90020-ZA0-930

BOLT, FLANGE (8X32)

Note: Use from Engine SN 1102181.

$3.99

$

Usually ships in 3-6 days

0

5

Honda 95701-08032-00

BOLT, FLANGE (8X32)

Note: Use up to Engine SN 1102180.

$1.99

$

In Stock, Qty 5

0

6

Honda 90021-ZA0-930

BOLT, FLANGE (8X40)

Note: Use from Engine SN 1102181.

$3.99

$

Usually ships in 3-6 days

0

6

Honda 95700-08040-00

SEE PART DETAILS - SUP; BOLT, FLANGE (8X40)
(Superseded to 95701-08040-00)

Note: Use up to Engine SN 1102180.

$1.99

$

In Stock, Qty 20+

0

6

Honda 95701-08040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40)

Note: Use up to Engine SN 1102180.

$1.99

$

In Stock, Qty 20+

0

7

Honda 94301-10140

PIN A, DOWEL (10X14)

$3.49

$

Usually ships in 3-6 days

0

8

Honda 95700-06012-00

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Not available

8

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

9

Honda 95701-08032-00

BOLT, FLANGE (8X32)

$1.99

$

In Stock, Qty 5

0

10

Honda 95700-08040-00

SEE PART DETAILS - SUP; BOLT, FLANGE (8X40)
(Superseded to 95701-08040-00)

$1.99

$

In Stock, Qty 20+

0

10

Honda 95701-08040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40)

$1.99

$

In Stock, Qty 20+

0

11

Honda 95701-06040-00

BOLT, FLANGE (6X40)

$2.49

$

Usually ships in 3-6 days

0
