ES6500 K1 A/B (EA1) - Honda Generator, Made in Japan (SN: EA1-1072229 - EA1-1099999) FRONT HOUSING Parts Diagram
Generator, Made in Japan

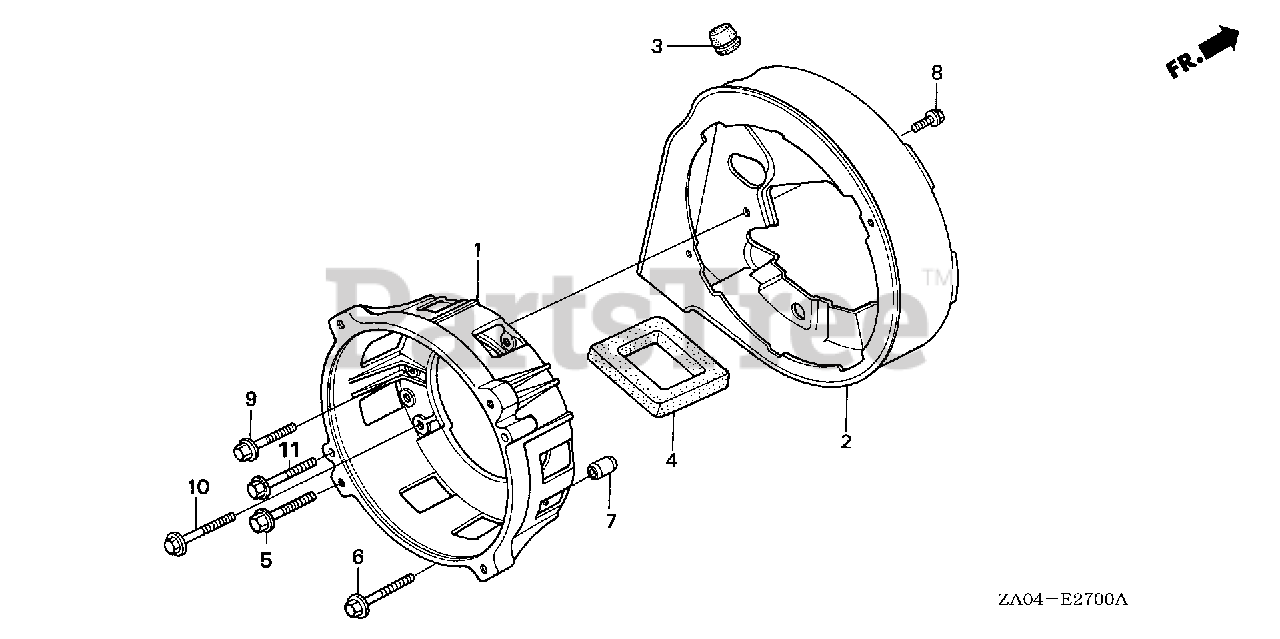

FRONT HOUSING Parts Diagram
Honda 31109-ZA0-950
HOUSING, FR. (Honda Code 1972306).
$281.99
$
Usually ships in 3-6 days
Honda 31315-ZA0-930
COVER, DUCT (Honda Code 1972322).
$151.99
$
Usually ships in 3-6 days
Honda 31316-ZA0-000
GROMMET, DUCT COVER (Honda Code 1313162).
$6.49
$
Usually ships in 3-6 days
Honda 90020-ZA0-930
BOLT, FLANGE (8X32) (Honda Code 2311355).
$3.99
$
Usually ships in 3-6 days
Honda 90021-ZA0-930
BOLT, FLANGE (8X40) (Honda Code 2311363).
$3.99
$
Usually ships in 3-6 days
Honda 94301-10140
SEE PART DETAILS - PRI; PIN A, DOWEL (10X14) (Honda Code 0069336).
$3.49
$
Usually ships in 3-6 days
Honda 95701-06012-00
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.
$2.49
$
In Stock, Qty 20+
Honda 95701-08032-00
SEE PART DETAILS - PRI; BOLT, FLANGE (8X32) (Honda Code 2751725).
$1.99
$
In Stock, Qty 5
Honda 95701-08040-00
SEE PART DETAILS - PRI; BOLT, FLANGE (8X40) Use up to Engine SN 1003236.
$1.99
$
In Stock, Qty 20+
Honda 95701-06040-00
SEE PART DETAILS - PRI; BOLT, FLANGE (6X40) (Honda Code 2410942).
$2.49
$
Usually ships in 3-6 days
