ES6500 K1 A/A (EA1) - Honda Generator, Made in Japan (SN: EA1-1000001 - EA1-1072228) TIMING BELT Parts Diagram

Generator, Made in Japan

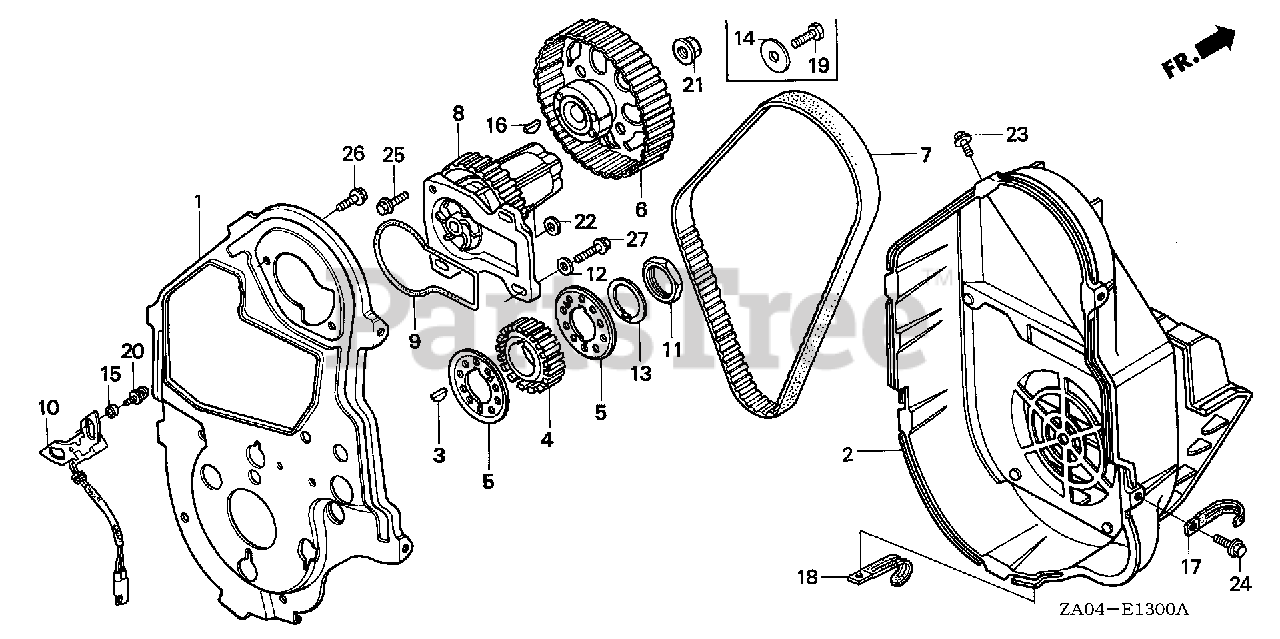

TIMING BELT Parts Diagram

  • Title

1

Honda 11810-ZA0-930

COVER B, TIMING BELT (Honda Code 1978311).

$120.99

$

Usually ships in 3-6 days

0

2

Honda 11840-ZA0-930

COVER, TIMING BELT (Honda Code 1971894).

$238.99

$

Usually ships in 3-6 days

0

3

Honda 13331-357-000

KEY, SPECIAL WOODRUFF (25X18) (Honda Code 0348433).

Note: Use up to Engine SN 1114961.

$5.49

$

In Stock, only 4 left!

0

3

Honda 90741-ZE2-000

KEY, SPECIAL WOODRUFF (25X18) (Honda Code 2027159).

Note: Use from Engine SN 1114962.

$3.99

$

In Stock, Qty 17

0

4

Honda 14311-ZA0-005

PULLEY, TIMING (Honda Code 1279298).

$45.99

$

Usually ships in 3-6 days

0

5

Honda 14312-ZA0-000

FLANGE, TIMING PULLEY (Honda Code 1279314).

$6.49

$

Usually ships in 3-6 days

0

6

Honda 14101-ZA0-700

SEE PART DETAILS - SUP; CAMSHAFT
(Superseded to 04106-ZA0-700)

Note: Use up to Engine SN 1142975.

$

$

Not available

6

Honda 14320-ZA0-700

SEE PART DETAILS - SUP; PULLEY, CAMSHAFT
(Superseded to 04106-ZA0-700)

Note: Use up to Engine SN 1142975.

$

$

Not available

6

Honda 14320-ZA0-701

PULLEY, CAMSHAFT (Honda Code 2579993).

Note: Use from Engine SN 1142976.

$105.99

$

Usually ships in 3-6 days

0

7

Honda 14400-ZA0-003

BELT, TIMING (Honda Code 1278290).

$66.99

$

In Stock, only 1 left!

0

8

Honda 19200-ZA0-020

SEE PART DETAILS - PRI; WATER PUMP

$226.99

$

In Stock, only 1 left!

0

9

Honda 19222-ZA0-004

O-RING, WATER PUMP (Honda Code 1277839).

$6.49

$

In Stock, Qty 11

0

11

Honda 90202-ZA0-000

NUT, LOCK (30MM) (Honda Code 1279165).

$10.99

$

Usually ships in 3-6 days

0

12

Honda 90401-ZA0-000

WASHER, PLAIN (6.5X15) (Honda Code 1279173).

$1.49

$

Usually ships in 3-6 days

0

13

Honda 90451-ZA0-000

WASHER, LOCK (30MM) (Honda Code 1279199).

$5.49

$

Usually ships in 3-6 days

0

14

Honda 90563-706-000

WASHER, WHEEL (6MM)

Note: Use up to Engine SN 1131491.

$

$

Not available

14

Honda 90563-ZA0-000

WASHER, PLAIN (6MM)

Note: Use from Engine SN 1131492 to 1142975.

$2.99

$

Usually ships in 3-6 days

0

16

Honda 90741-921-000

SEE PART DETAILS - SUP; KEY, CAM PULLEY
(Superseded to 90741-969-000)

$

$

Not available

18

Honda 91410-679-000

CLIP (6X20) (Honda Code 0840215).

$15.99

$

Usually ships in 3-6 days

0

19

Honda 92101-06016-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X16)

Note: Use up to Engine SN 1131291.

$1.99

$

In Stock, Qty 20+

0

19

Honda 90021-KE8-010

BOLT, HEX. (6X16)

Note: Use from Engine SN 1131292 to 1142975.

$2.99

$

Usually ships in 3-6 days

0

21

Honda 94050-10080

SEE PART DETAILS - PRI; NUT, FLANGE (10MM) (Honda Code 0623405).

Note: Use from Engine SN 1142976.

$3.99

$

In Stock, Qty 20+

0

22

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

23

Honda 95700-06010-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 0344952).

$2.49

$

In Stock, Qty 20+

0

23

Honda 95701-06010-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2204709).

$2.49

$

In Stock, Qty 20+

0

24

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use from Engine SN 2086984.

$2.49

$

In Stock, only 1 left!

0

25

Honda 95701-06022-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X22) (Honda Code 2129682).

$2.49

$

Usually ships in 3-6 days

0

26

Honda 96001-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (Honda Code 2105930).

$2.49

$

In Stock, Qty 5

0

27

Honda 96001-06022-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X22) (Honda Code 2112191).

$1.99

$

In Stock, only 3 left!

0
