ES6500 K1 A/A (EA1) - Honda Generator, Made in Japan (SN: EA1-1000001 - EA1-1072228) MUFFLER (1) Parts Diagram

Generator, Made in Japan

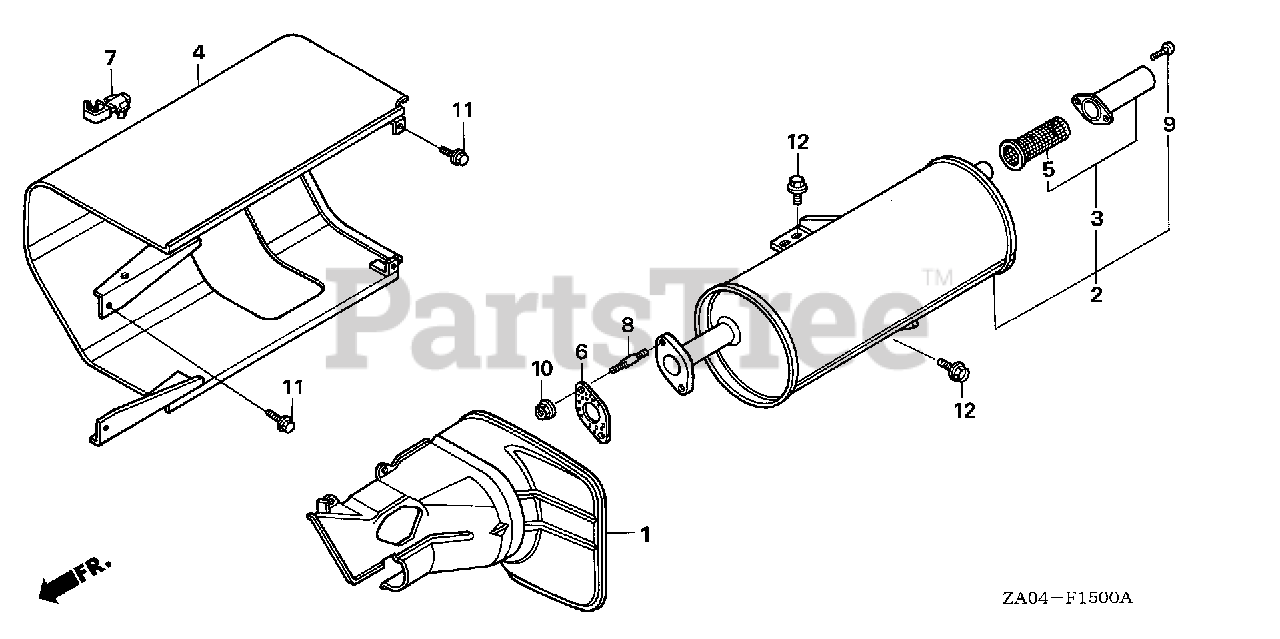

MUFFLER (1) Parts Diagram

  • Title

1

Honda 18200-ZA0-010

COVER, EX.

$135.99

$

Usually ships in 3-6 days

0

2

Honda 183B1-ZA0-631

SEE PART DETAILS - PRI; MUFFLER (Honda Code 1978592).

$

$

Currently unavailable

3

Honda 183B5-ZA0-630

CAP SET, ARRESTER (NOT AVAILABLE)

$

$

Not available

4

Honda 18325-ZA0-020

SEPARATOR, MUFFLER

$207.99

$

Usually ships in 3-6 days

0

5

Honda 18355-890-630

SEE PART DETAILS - PRI; ARRESTER, SPARK (Honda Code 1806744).

$

$

Not available

6

Honda 18381-ZA0-800

SEE PART DETAILS - PRI; GASKET, MUFFLER (Honda Code 4210878).

$6.99

$

Usually ships in 3-6 days

0

7

Honda 90678-ZA0-601

CLIP, HARNESS (5MM-15MM) (BLACK)

$4.49

$

Usually ships in 3-6 days

0

8

Honda 92900-08019-0B

SEE PART DETAILS - PRI; BOLT, STUD (8X35) (Honda Code 3737723).

$2.99

$

Usually ships in 3-6 days

0

9

Honda 93500-05008-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X8) (Honda Code 0145540).

$1.49

$

In Stock, Qty 8

0

10

Honda 94050-08080

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447).

$1.49

$

In Stock, Qty 15

0

11

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 20+

0

12

Honda 95700-08020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20) (Honda Code 0477463).
(Superseded to 95701-08020-00)

$2.49

$

In Stock, only 3 left!

0

12

Honda 95701-08020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20) Use up to Engine SN 1609606.

$2.49

$

In Stock, only 3 left!

0
