ES6500 A (GX360) - Honda Generator, Made in Japan (SN: GX360-1000001 - GX360-1017635) GOVERNOR KIT Parts Diagram

Generator, Made in Japan

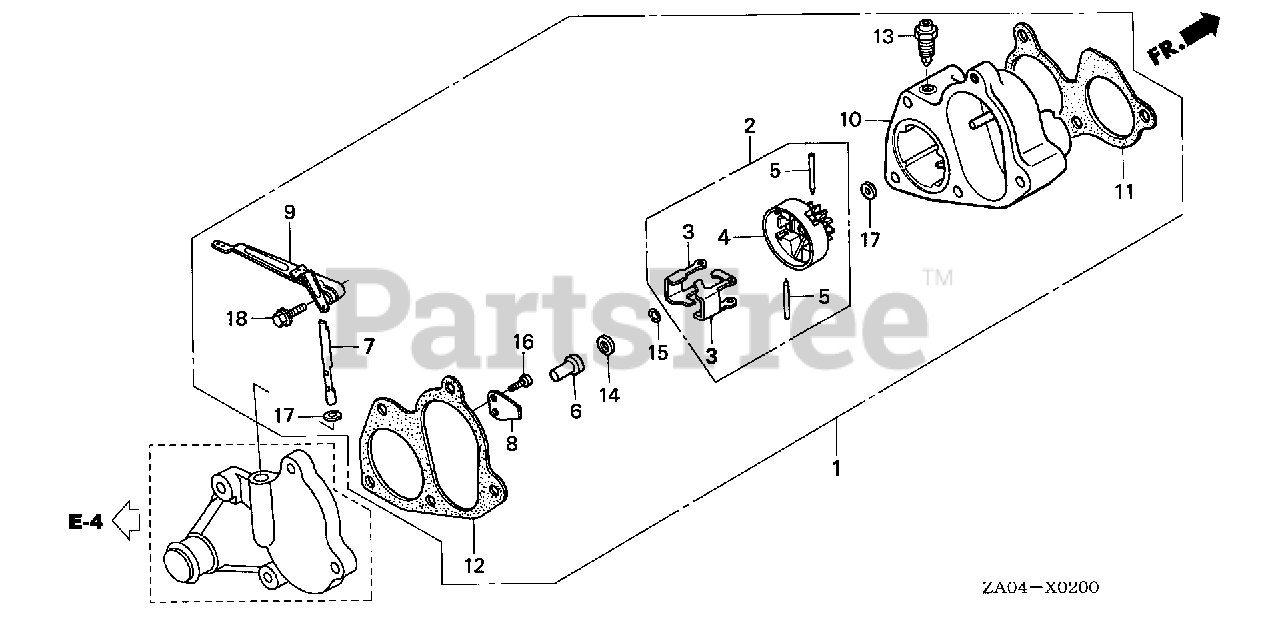

GOVERNOR KIT Parts Diagram

  • Title
1

Honda 041A0-ZA0-000

GOVERNOR KIT (EL/ES) (NOT AVAILABLE)

Note: (Optional).

$

$

Currently unavailable

2

Honda 16510-ZA0-305

GOVERNOR ASSY. (NOT AVAILABLE)

Note: (Optional).

$24.99

$

Usually ships in 3-6 days

0

3

Honda 16511-ZA0-010

WEIGHT, GOVERNOR

Note: (Optional).

$7.99

$

Usually ships in 3-6 days

0

4

Honda 16512-ZA0-306

HOLDER, GOVERNOR WEIGHT

Note: (Optional).

$

$

Currently unavailable

5

Honda 16513-ZA0-300

PIN, GOVERNOR WEIGHT

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

6

Honda 16531-ZA0-306

SLIDER, GOVERNOR (NOT AVAILABLE)

Note: (Optional).

$

$

Not available

7

Honda 16541-ZA0-306

SHAFT, GOVERNOR ARM (NOT AVAILABLE)

Note: (Optional).

$

$

Currently unavailable

8

Honda 16542-ZA0-010

FORK, GOVERNOR

Note: (Optional).

$

$

Not available

9

Honda 16551-ZA0-000

ARM, GOVERNOR (NOT AVAILABLE)

Note: (Optional).

$

$

Not available

10

Honda 16560-ZA0-306

CASE, GOVERNOR

Note: (Optional).

$

$

Not available

11

Honda 16563-ZA0-306

SEE PART DETAILS - SUP; GASKET, GOVERNOR CASE
(Superseded to 16563-ZA0-800)

Note: (Optional).

$9.49

$

In Stock, only 2 left!

0

11

Honda 16563-ZA0-800

SEE PART DETAILS - PRI; GASKET, GOVERNOR CASE

Note: (Optional).

$9.49

$

In Stock, only 2 left!

0

12

Honda 19318-ZA0-305

GASKET, THERMOSTAT COVER (NOT AVAILABLE)

Note: (Optional).

$

$

Currently unavailable

13

Honda 19516-PC1-000

BOLT, BREATHING WATER

Note: (Optional).

$27.99

$

Usually ships in 3-6 days

0

14

Honda 90451-ZE1-000

WASHER, THRUST (6MM)

Note: (Optional).

$2.49

$

In Stock, only 2 left!

0

15

Honda 90602-ZE1-000

CLIP, GOVERNOR HOLDER

Note: (Optional).

$1.99

$

In Stock, only 3 left!

0

16

Honda 93500-03006-0H

SCREW, PAN (3X6)

Note: (Optional).

$1.49

$

In Stock, only 3 left!

0

17

Honda 94101-06800

WASHER, PLAIN (6MM)

Note: (Optional).

$0.99

$

In Stock, Qty 20+

0

18

Honda 95701-06020-00

BOLT, FLANGE (6X20)

Note: (Optional).

$2.49

$

In Stock, Qty 6

0
