ES4500 K1 A (500K1) - Honda Generator, Made in Japan (SN: ES4500K1-1100001 - ES4500K1-9999999) ES4500 CARBURETOR K0-K1 Parts Diagram

Generator, Made in Japan

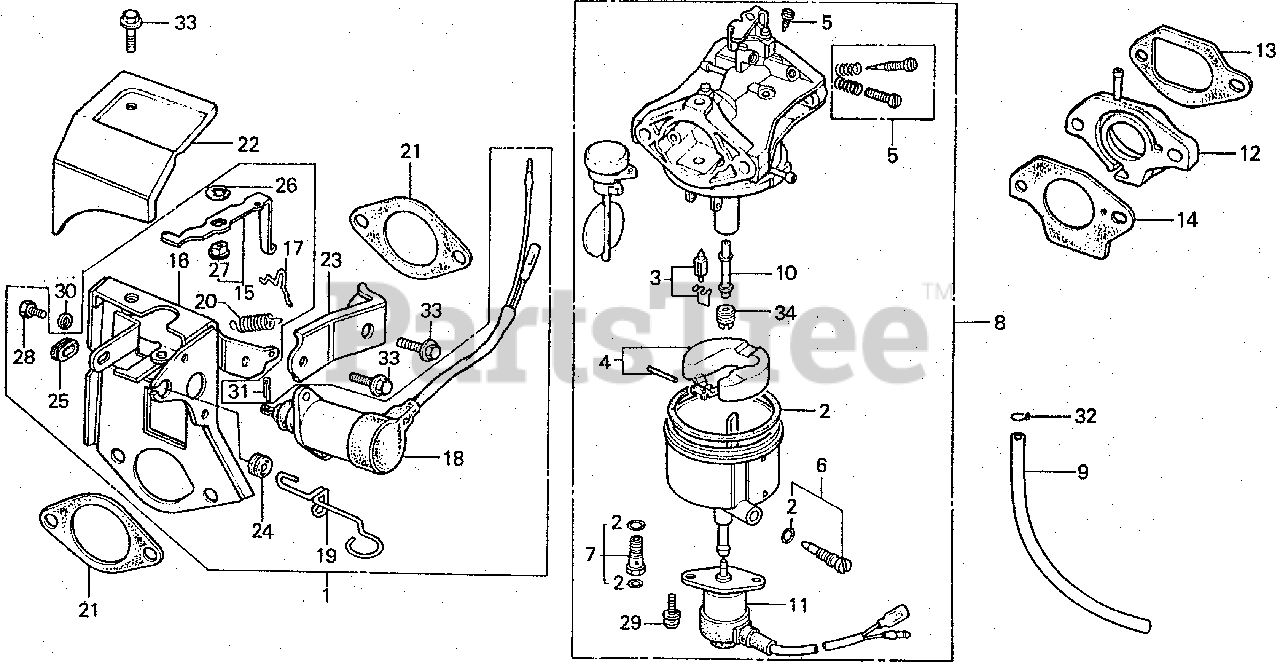

ES4500 CARBURETOR K0-K1 Parts Diagram

  • Title

NI

Honda 16015-890-671

CHAMBER SET, FLOAT

$

$

Not available

1

Honda 06102-893-305

SEE PART DETAILS - SUP; STAY SET, SOLENOID

Note: Use up to Engine SN 1331591.

$

$

Not available

1

Honda 06102-893-315

SEE PART DETAILS - PRI; STAY SET, SOLENOID (NOT AVAILABLE)

Note: Use up to Engine SN 1331591.

$

$

Currently unavailable

2

Honda 16010-890-733

SEE PART DETAILS - PRI; GASKET SET

$27.99

$

In Stock, only 1 left!

0

3

Honda 16011-382-004

SEE PART DETAILS - SUP; VALVE SET, FLOAT
(Superseded to 16011-KCK-910)

$48.99

$

In Stock, only 3 left!

0

4

Honda 16013-890-015

FLOAT SET

Note: Use up to Engine SN BB37B B.

$42.99

$

Usually ships in 3-6 days

0

4

Honda 16013-890-015

FLOAT SET

Note: Use from Engine SN BB37B C.

$42.99

$

Usually ships in 3-6 days

0

5

Honda 16016-883-661

SEE PART DETAILS - SUP; SCREW SET A

Note: Use up to Engine SN BB37B D.

$

$

Currently unavailable

5

Honda 16016-890-015

SEE PART DETAILS - PRI; SCREW SET A

Note: Use up to Engine SN BB37B D.

$

$

Not available

5

Honda 16016-ZA1-701

SCREW SET A

Note: Use from Engine SN BB37B E.

$13.99

$

Usually ships in 3-6 days

0

6

Honda 16024-124-760

SEE PART DETAILS - PRI; SCREW SET, DRAIN

$15.99

$

Usually ships in 3-6 days

0

7

Honda 16028-ZA0-931

SEE PART DETAILS - PRI; SCREW SET

$30.99

$

In Stock, only 3 left!

0

7

Honda 16028-890-781

SEE PART DETAILS - SUP; SCREW SET B

$

$

Currently unavailable

8

Honda 16100-890-736

CARBURETOR ASSY. (BB37B B) (NOT AVAILABLE)

Note: Use up to Engine SN 1291828.

$

$

Currently unavailable

8

Honda 16100-890-737

CARBURETOR ASSY. (BB37A C/D) (NOT AVAILABLE)

Note: Use from Engine SN 1291829 to 1370404.

$

$

Currently unavailable

8

Honda 16100-890-738

CARBURETOR ASSY. (BB37B E) (NOT AVAILABLE)

Note: Use from Engine SN 1370405.

$

$

Currently unavailable

9

Honda 16150-880-000

TUBE, DRAIN

$

$

Not available

10

Honda 16166-890-731

NOZZLE, MAIN

$

$

Not available

11

Honda 16200-890-005

VALVE ASSY., SOLENOID

$

$

Not available

12

Honda 16211-893-000

INSULATOR, CARBURETOR (NOT AVAILABLE)

$

$

Not available

13

Honda 16212-890-306

SEE PART DETAILS - SUP; GASKET, INSULATOR
(Superseded to 16212-890-800)

$1.49

$

Usually ships in 3-6 days

0

13

Honda 16212-890-800

SEE PART DETAILS - PRI; GASKET, INSULATOR

$1.49

$

Usually ships in 3-6 days

0

14

Honda 16221-890-306

SEE PART DETAILS - SUP; GASKET, CARBURETOR
(Superseded to 16221-890-800)

$2.99

$

In Stock, only 4 left!

0

14

Honda 16221-890-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.99

$

In Stock, only 4 left!

0

15

Honda 16250-893-000

SEE PART DETAILS - SUP; LEVER, SOLENOID CHOKE

Note: Use from Engine SN 1331592.

$

$

Not available

15

Honda 16250-893-010

SEE PART DETAILS - PRI; LEVER, SOLENOID CHOKE

Note: Use from Engine SN 1331592.

$

$

Currently unavailable

16

Honda 06102-893-305

SEE PART DETAILS - SUP; STAY SET, SOLENOID

Note: Use up to Engine SN 1331591.

$

$

Not available

16

Honda 16260-893-020

SEE PART DETAILS - SUP; STAY, SOLENOID

Note: Use up to Engine SN 1331591.

$

$

Not available

16

Honda 16261-893-000

STAY, SOLENOID

Note: Use from Engine SN 1331592.

$

$

Not available

17

Honda 16264-880-010

ROD, CHOKE (NOT AVAILABLE)

Note: Use up to Engine SN 1331591.

$

$

Not available

17

Honda 16264-880-030

ROD, CHOKE

Note: Use from Engine SN 1331592.

$

$

Not available

18

Honda 16265-880-023

SEE PART DETAILS - SUP; CHOKE, SOLENOID (N/A: USE ALTERNATE P/N 06162-ZA0-315)

Note: Use up to Engine SN 1331591.

$

$

Not available

18

Honda 16265-880-033

SEE PART DETAILS - PRI; CHOKE, SOLENOID (NA USE ALT:06162-ZA0-315)

Note: Use from Engine SN 1331592.

$

$

Not available

19

Honda 16266-893-000

ROD, MANUAL CHOKE (NOT AVAILABLE)

$

$

Currently unavailable

20

Honda 16268-893-000

SPRING, CHOKE RETURN

$4.49

$

In Stock, Qty 11

0

21

Honda 16269-890-306

SEE PART DETAILS - SUP; GASKET, AIR CLEANER
(Superseded to 16269-890-800)

$1.99

$

In Stock, only 3 left!

0

21

Honda 16269-890-800

SEE PART DETAILS - PRI; GASKET, AIR CLEANER

$1.99

$

In Stock, only 3 left!

0

22

Honda 16270-893-010

COVER, SOLENOID

$

$

Not available

23

Honda 16273-893-000

BRACKET, CHOKE STAY

$

$

Not available

24

Honda 16613-893-000

GROMMET, CHOKE ROD

$4.49

$

In Stock, Qty 18

0

25

Honda 16615-893-000

GUIDE, CHOKE ROD

$5.49

$

In Stock, only 1 left!

0

26

Honda 38689-680-960

E-RING (4MM)

Note: Use from Engine SN 1331592.

$4.49

$

Usually ships in 3-6 days

0

27

Honda 91502-ZA0-300

SEE PART DETAILS - SUP; BUSH, CHOKE LEVER
(Superseded to 91502-ZA0-310)

Note: Use from Engine SN 1331592.

$3.49

$

Usually ships in 3-6 days

0

27

Honda 91502-ZA0-310

SEE PART DETAILS - PRI; BUSH, CHOKE LEVER

Note: Use from Engine SN 1331592.

$3.49

$

Usually ships in 3-6 days

0

28

Honda 92101-05008-0A

SEE PART DETAILS - PRI; BOLT, HEX. (5X8)

Note: Use up to Engine SN 1331591.

$1.49

$

Usually ships in 3-6 days

0

28

Honda 93500-05008-0A

SCREW, PAN (5X8)

Note: Use from Engine SN 1331592.

$1.49

$

In Stock, Qty 7

0

29

Honda 93892-05012-08

SCREW-WASHER (5X12)

$1.99

$

In Stock, Qty 13

0

30

Honda 94111-05000

WASHER, SPRING (5MM)

Note: Use up to Engine SN 1331591.

$1.99

$

Usually ships in 3-6 days

0

31

Honda 94201-16250

PIN, COTTER (1.6X25)

Note: Use up to Engine SN 1331591.

$1.49

$

Usually ships in 3-6 days

0

31

Honda 94201-20100

PIN, SPLIT (2.0)

Note: Use from Engine SN 1331592.

$

$

Not available

32

Honda 95002-50000

CLIP, TUBE (C9)

$1.99

$

In Stock, Qty 20+

0

33

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

34

Honda 99101-124-0980

JET, MAIN (#98)

$14.99

$

Usually ships in 3-6 days

0

34

Honda 99101-124-1000

JET, MAIN (#100)

$12.99

$

Usually ships in 3-6 days

0

34

Honda 99101-124-1020

JET, MAIN (#102)

$12.99

$

Usually ships in 3-6 days

0

34

Honda 99101-124-0820

JET, MAIN (#82)

$12.99

$

Usually ships in 3-6 days

0

34

Honda 99101-124-0850

JET, MAIN (#85)

$12.99

$

Usually ships in 3-6 days

0

34

Honda 99101-124-0880

JET, MAIN (#88)

$12.99

$

Usually ships in 3-6 days

0

34

Honda 99101-124-0920

JET, MAIN (#92)

$12.99

$

Usually ships in 3-6 days

0
