ES4500 K1 A (500K1) - Honda Generator, Made in Japan (SN: ES4500K1-1100001 - ES4500K1-9999999) BATTERY TRAY + BATTERY CORD Parts Diagram

Generator, Made in Japan

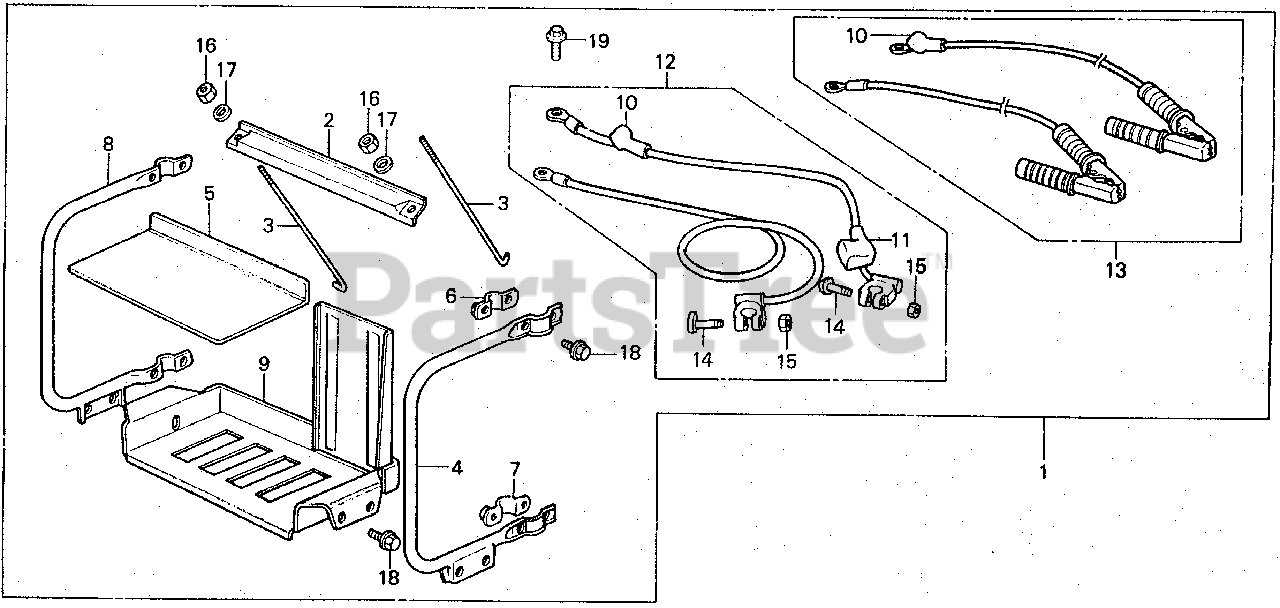

BATTERY TRAY + BATTERY CORD Parts Diagram

  • Title
1

Honda 06550-880-812

TRAY KIT, BATTERY

$

$

Currently unavailable

2

Honda 31512-880-810

PLATE, BATTERY SETTING

$

$

Not available

3

Honda 31513-634-000

BOLT, BATTERY SETTING (220MM)

$11.99

$

Usually ships in 3-6 days

0

4

Honda 31520-880-810

PIPE, FR. BATTERY GUARD

$

$

Not available

5

Honda 31521-880-000

PLATE, BATTERY

$22.99

$

Usually ships in 3-6 days

0

6

Honda 31526-880-810

PLATE A, SETTING

$

$

Currently unavailable

7

Honda 31527-880-810

PLATE B, SETTING

$

$

Currently unavailable

8

Honda 31530-880-810

PIPE, RR. BATTERY GUARD

$

$

Not available

9

Honda 31550-880-811

CASE, BATTERY

$

$

Currently unavailable

10

Honda 32136-659-000

COVER, TERMINAL

$6.99

$

Usually ships in 3-6 days

0

11

Honda 32411-679-620

COVER, BATTERY PLUS TERMINAL

$

$

Currently unavailable

12

Honda 32400-880-811

CABLE ASSY., STARTING

$

$

Not available

13

Honda 32800-880-812

WIRE, BATTERY

$

$

Not available

14

Honda 90151-568-600

BOLT (6X32)

$

$

Currently unavailable

15

$

$

Currently unavailable

16

Honda 94001-06080-0S

NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 6

0

17

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

18

Honda 95700-06012-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Currently unavailable

18

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0

19

Honda 95700-08016-00

SEE PART DETAILS - SUP; BOLT, FLANGE (8X16)
(Superseded to 95701-08016-00)

$2.49

$

In Stock, Qty 20+

0

19

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 20+

0
