ES4500 A (ES4500) - Honda Generator, Made in Japan (SN: ES4500-1000005 - ES4500-1020560) WHEEL Parts Diagram

Generator, Made in Japan

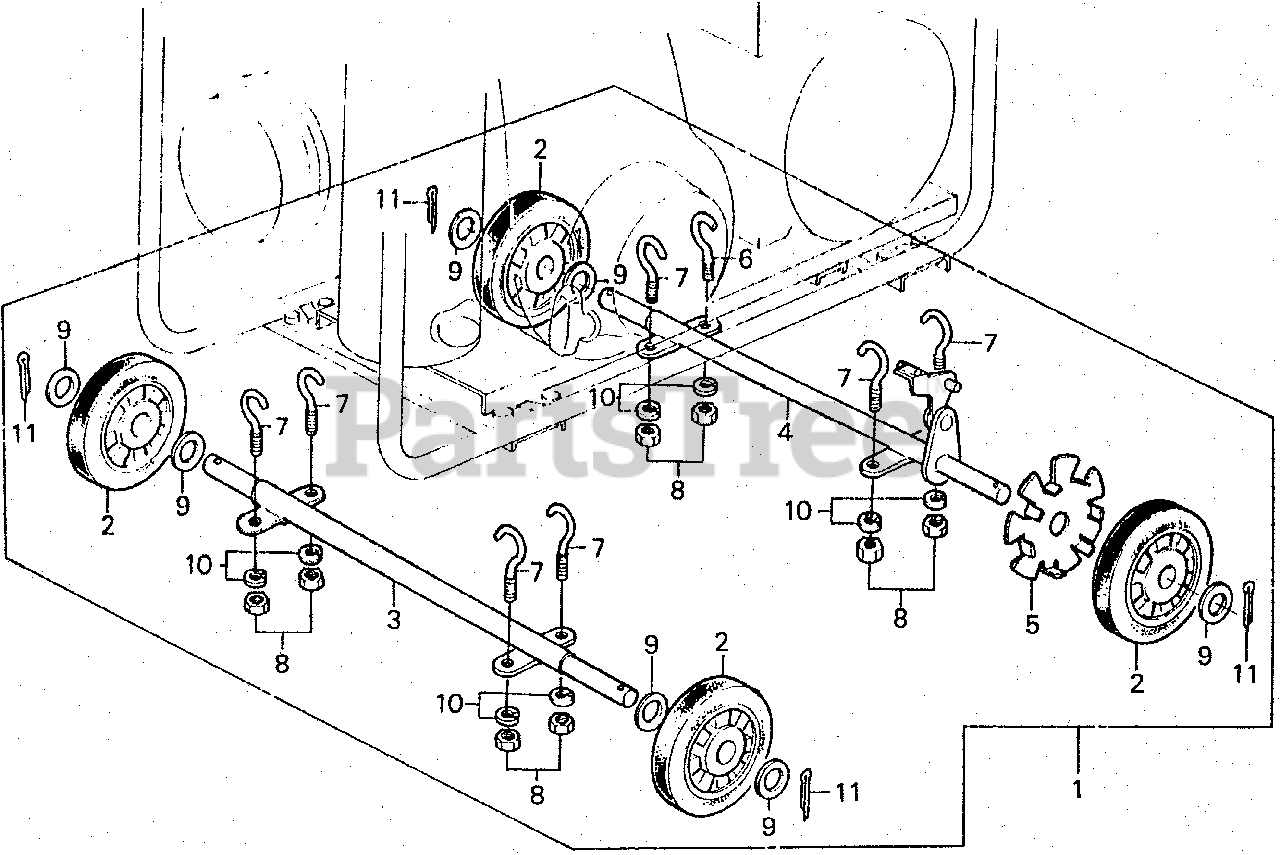

WHEEL Parts Diagram

  • Title
1

$

$

Currently unavailable

2

Honda 42710-862-010

SEE PART DETAILS - SUP; WHEEL

$

$

Currently unavailable

2

Honda 42710-862-505

SEE PART DETAILS - PRI; WHEEL

$

$

Not available

3

Honda 42730-880-810

SHAFT A, WHEEL

$

$

Currently unavailable

4

Honda 42740-880-811

SHAFT B, WHEEL

$

$

Currently unavailable

5

Honda 42753-880-810

PLATE, LOCK

$32.99

$

Usually ships in 3-6 days

0

6

Honda 42754-880-810

BOLT A, HOOK

$

$

Not available

7

Honda 42755-880-810

BOLT B, HOOK

$

$

Currently unavailable

8

Honda 94001-08000-0S

NUT, HEX. (8MM)

$1.99

$

In Stock, Qty 10

0

9

Honda 94102-20000

WASHER, PLAIN (20MM)

$1.49

$

In Stock, Qty 8

0

10

Honda 94111-08000

WASHER, SPRING (8MM)

$1.49

$

Usually ships in 3-6 days

0

11

Honda 90702-YB1-003

SEE PART DETAILS - SUP; PIN, SPLIT (4.0X28)

$

$

Currently unavailable

11

Honda 94201-40300

SEE PART DETAILS - PRI; PIN, SPLIT (4.0X30)

$1.49

$

In Stock, Qty 5

0
