ES4500 A (ES4500) - Honda Generator, Made in Japan (SN: ES4500-1000005 - ES4500-1020560) GOVERNOR ARM + CONTROL PLATE Parts Diagram

Generator, Made in Japan

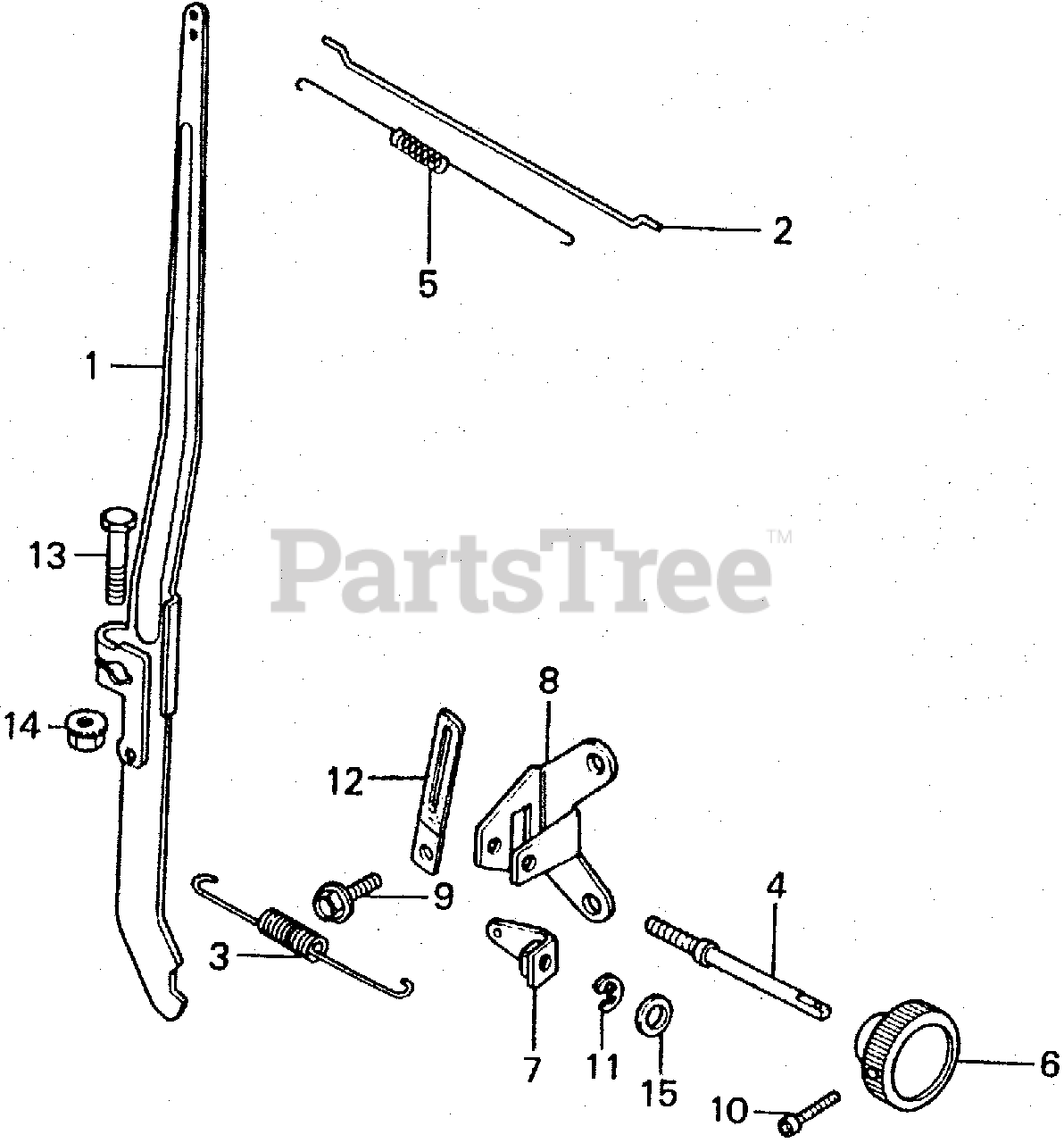

GOVERNOR ARM + CONTROL PLATE Parts Diagram

  • Title

1

Honda 16551-893-000

ARM, GOVERNOR

$21.99

$

Usually ships in 3-6 days

0

2

Honda 16555-889-010

ROD, GOVERNOR

$4.99

$

Usually ships in 3-6 days

0

3

Honda 16561-890-010

SPRING, GOVERNOR

Note: Use up to Engine SN 1074889.

$

$

Not available

3

Honda 16561-893-010

SPRING, GOVERNOR (NOT AVAILABLE)

Note: Use from Engine SN 1074890.

$

$

Currently unavailable

4

Honda 16562-880-010

SPRING, ADJUSTMENT

Note: Use up to Engine SN 1022281.

$

$

Currently unavailable

4

Honda 16562-880-020

SPRING, ADJUSTMENT (NOT AVAILABLE)

Note: Use from Engine SN 1022282.

$

$

Currently unavailable

5

Honda 16562-889-010

SEE PART DETAILS - PRI; SPRING, THROTTLE RETURN

Note: Use up to Engine SN 1026946.

$

$

Not available

5

Honda 16562-889-010

SEE PART DETAILS - PRI; SPRING, THROTTLE RETURN

Note: Use from Engine SN 1026947 to 1085753.

$

$

Not available

6

Honda 16564-812-020

KNOB, CONTROL

$

$

Not available

7

Honda 16571-865-630

PLATE, CONTROL (NOT AVAILABLE)

$

$

Not available

8

Honda 16573-880-000

BASE, CONTROL

Note: Use up to Engine SN 1022281.

$

$

Currently unavailable

8

Honda 16573-880-010

BASE, CONTROL (NOT AVAILABLE)

Note: Use from Engine SN 1022282.

$

$

Currently unavailable

9

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

10

Honda 90192-836-000

BOLT, KNOB (3MM) (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 90652-880-000

E-RING

$

$

Currently unavailable

12

Honda 91405-671-000

CLIP, WIRE

Note: Use from Engine SN 1085755.

$12.99

$

Usually ships in 3-6 days

0

13

Honda 92000-06025-0H

BOLT, HEX. (6X25)

$

$

Currently unavailable

14

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, only 3 left!

0

15

Honda 94101-06000

SEE PART DETAILS - SUP; WASHER, PLAIN (6MM)

$

$

Currently unavailable

15

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0
