ES4500 A (ES4500) - Honda Generator, Made in Japan (SN: ES4500-1000005 - ES4500-1020560) FUEL TANK GUARD + ENGINE BED Parts Diagram

Generator, Made in Japan

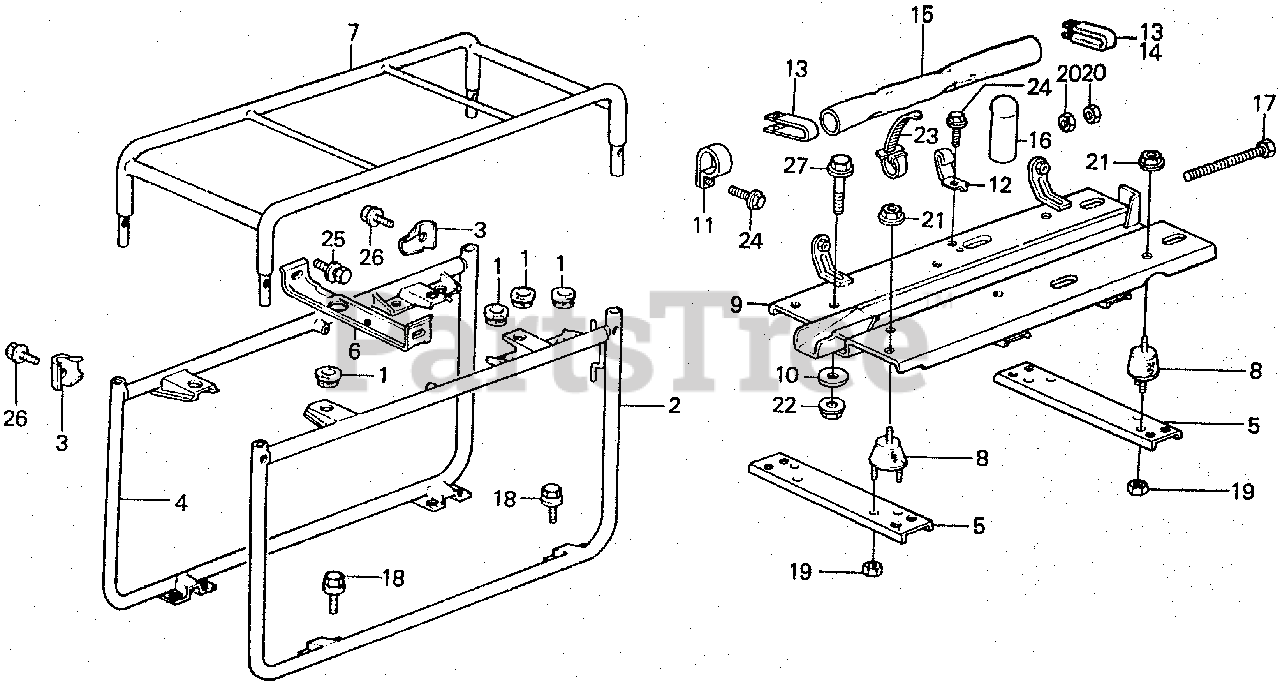

FUEL TANK GUARD + ENGINE BED Parts Diagram

  • Title

1

Honda 17682-817-020

RUBBER, TANK CUSHION

$

$

Not available

2

Honda 50120-880-030

FRAME, FR. PIPE

$

$

Not available

3

Honda 50121-880-000

PLATE, JOINT

$

$

Not available

4

Honda 50130-880-020

FRAME, RR. PIPE

$

$

Not available

5

Honda 50311-880-020

PLATE (LOWER)

$

$

Not available

6

Honda 50317-893-010

STOPPER, ENGINE

$

$

Not available

7

Honda 53120-893-000

GUARD, FUEL TANK (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 68325-893-000

RUBBER, ENGINE SETTING

$

$

Not available

9

Honda 68310-893-010

BED, ENGINE

$

$

Not available

10

Honda 90501-579-020

WASHER, EX. MANIFOLD

$7.49

$

Usually ships in 3-6 days

0

11

Honda 91402-880-010

CLIP, WIRE

$

$

Currently unavailable

12

Honda 91403-893-000

CLIP, WIRE

$

$

Not available

14

Honda 91405-890-000

CLIP, CORD

$

$

Not available

15

Honda 91407-880-780

TUBE, WIRE

$

$

Not available

16

Honda 91408-890-780

TUBE, CORD (25MM)

$6.99

$

Usually ships in 3-6 days

0

17

Honda 92180-08080-0A

BOLT, HEX. (8X80)

$3.49

$

Usually ships in 3-6 days

0

18

Honda 93401-08016-00

SEE PART DETAILS - PRI; BOLT-WASHER (8X16)

$2.49

$

Usually ships in 3-6 days

0

19

Honda 94001-06000-0S

SEE PART DETAILS - SUP; NUT, HEX. (6MM)
(Superseded to 94001-06200-0S)

$1.99

$

In Stock, Qty 20+

0

19

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 20+

0

20

Honda 94001-08000-0S

NUT, HEX. (8MM)

$1.99

$

In Stock, Qty 10

0

21

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

22

Honda 94050-10000

SEE PART DETAILS - PRI; NUT, FLANGE (10MM)

$1.99

$

In Stock, Qty 6

0

23

Honda 95014-62100

BAND B1, WIRE

$1.99

$

In Stock, Qty 5

0

24

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

25

Honda 95700-06012-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Currently unavailable

25

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0

26

Honda 95700-08016-00

SEE PART DETAILS - SUP; BOLT, FLANGE (8X16)
(Superseded to 95701-08016-00)

$2.49

$

In Stock, Qty 20+

0

26

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 20+

0

27

Honda 95700-10050-00

SEE PART DETAILS - SUP; BOLT, FLANGE (10X50)

$

$

Currently unavailable

27

Honda 95701-10050-00

SEE PART DETAILS - PRI; BOLT, FLANGE (10X50)

$3.99

$

Usually ships in 3-6 days

0
