ES4500 A (ES4500) - Honda Generator, Made in Japan (SN: ES4500-1000005 - ES4500-1020560) FUEL TANK + FUEL VALVE Parts Diagram

Generator, Made in Japan

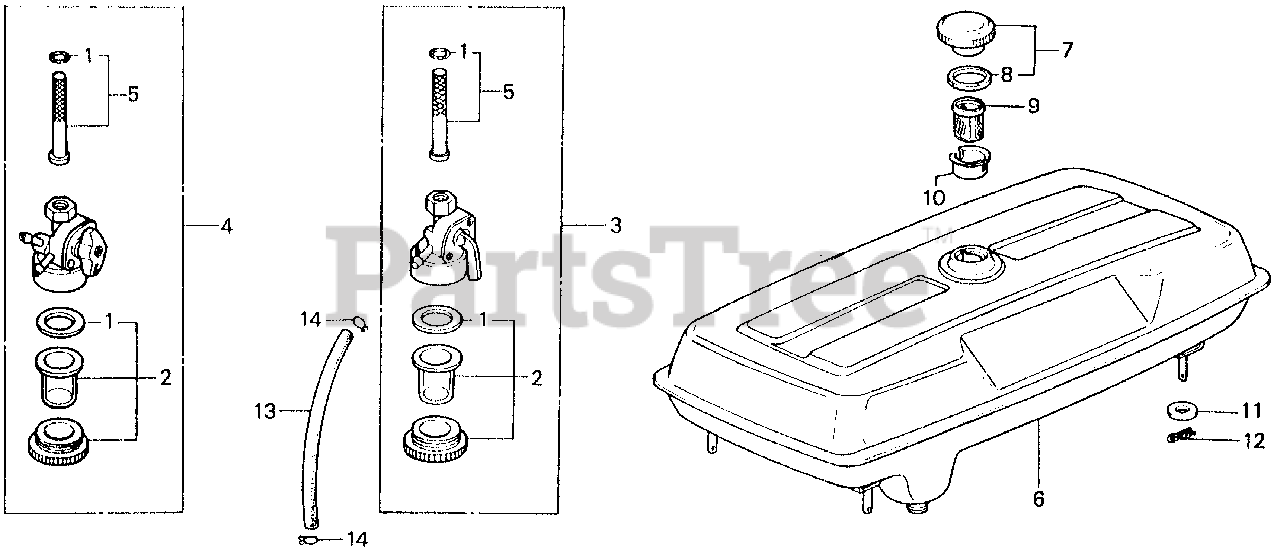

FUEL TANK + FUEL VALVE Parts Diagram

  • Title

1

Honda 16080-883-005

GASKET SET, PETCOCK

$14.99

$

In Stock, only 2 left!

0

2

Honda 16081-883-015

SEE PART DETAILS - SUP; CUP SET, FUEL STRAINER
(Superseded to 16081-471-831)

$32.99

$

Usually ships in 3-6 days

0

3

Honda 16950-883-035

SEE PART DETAILS - SUP; PETCOCK ASSY.

$

$

Currently unavailable

3

Honda 16950-883-045

SEE PART DETAILS - SUP; PETCOCK ASSY.
(Superseded to 16950-898-633)

$62.99

$

In Stock, only 3 left!

0

5

Honda 16952-883-005

SCREEN SET

$20.99

$

In Stock, only 1 left!

0

6

Honda 17510-893-000XC

TANK, FUEL *NH31* (MCKINLEY WHITE)

$

$

Currently unavailable

7

Honda 17620-ZH7-023

SEE PART DETAILS - PRI; CAP, FUEL FILLER (BLACK)
(Superseded to 17620-Z0T-305)

Note: Use from Frame SN 1017201.

$

$

Not available

7

Honda 17620-329-000

SEE PART DETAILS - SUP; CAP, FUEL FILLER

Note: Use up to Frame SN 1002514.

$

$

Currently unavailable

7

Honda 17620-402-010

SEE PART DETAILS - PRI; CAP, FUEL FILLER
(Superseded to 17620-402-020)

Note: Use up to Frame SN 1017200.

$22.99

$

In Stock, only 1 left!

0

8

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP (39X58X3)
(Superseded to 17631-329-013)

$

$

Not available

9

Honda 17672-880-000

FILTER, FUEL

$15.99

$

In Stock, only 2 left!

0

10

Honda 17673-893-000

HOLDER, FUEL FILTER

$15.99

$

In Stock, only 2 left!

0

11

Honda 91412-538-000

WASHER, FLAT (20MM)

$

$

Not available

12

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 20+

0

13

Honda 95001-45003-50M

SEE PART DETAILS - PRI; BULK HOSE, FUEL (4.5X3000) (4.5X135)

$86.99

$

In Stock, only 1 left!

0

14

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 20+

0
