ES4500 A (ES4500) - Honda Generator, Made in Japan (SN: ES4500-1000005 - ES4500-1020560) ES4500 CARBURETOR K0-K1 Parts Diagram

Generator, Made in Japan

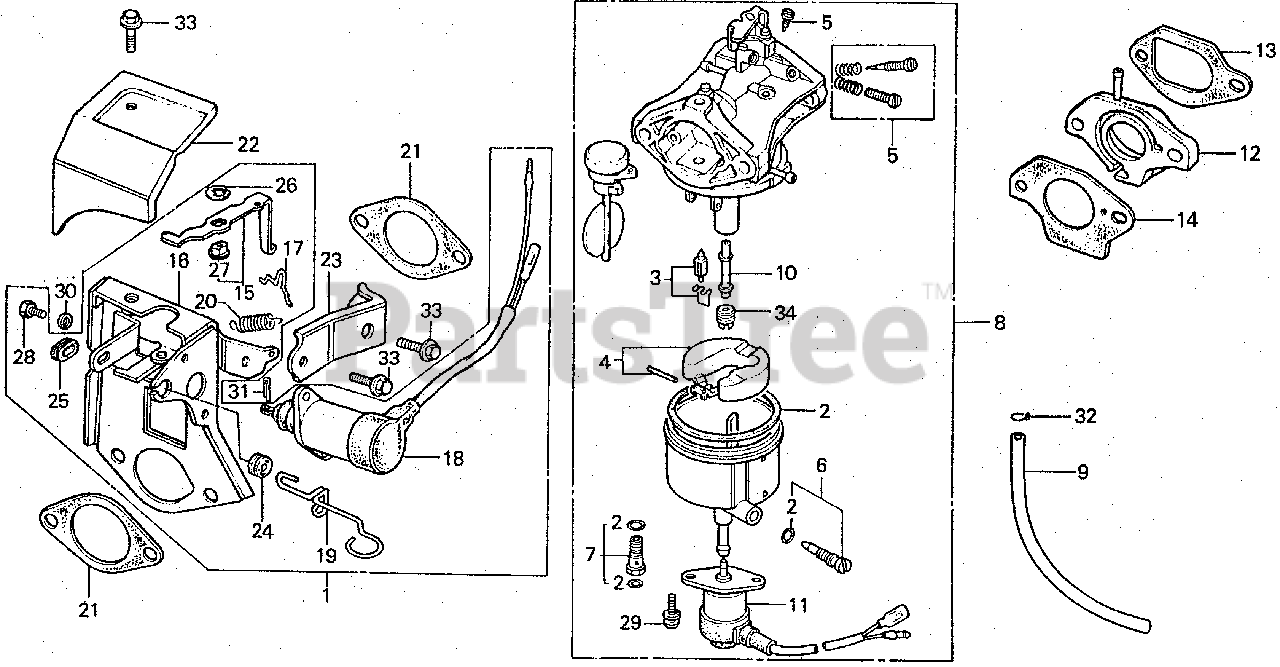

ES4500 CARBURETOR K0-K1 Parts Diagram

  • Title

2

Honda 16010-890-731

SEE PART DETAILS - SUP; GASKET SET
(Superseded to 16010-890-733)

Note: Use up to Engine SN BB37A B.

$24.99

$

Usually ships in 3-6 days

0

2

Honda 16010-890-733

SEE PART DETAILS - PRI; GASKET SET

Note: Use up to Engine SN BB37A B.

$24.99

$

Usually ships in 3-6 days

0

2

Honda 16010-890-733

SEE PART DETAILS - PRI; GASKET SET

Note: Use from Engine SN BB37B A.

$24.99

$

Usually ships in 3-6 days

0

3

Honda 16011-382-004

SEE PART DETAILS - SUP; VALVE SET, FLOAT
(Superseded to 16011-KCK-910)

$43.99

$

In Stock, only 2 left!

0

4

Honda 16013-890-015

FLOAT SET

$

$

Not available

5

Honda 16016-728-631

SCREW SET A

Note: Use from Engine SN BB37A B to BB37A B.

$

$

Currently unavailable

5

Honda 16016-883-661

SEE PART DETAILS - SUP; SCREW SET A

Note: Use from Engine SN BB37B B.

$

$

Currently unavailable

5

Honda 16016-883-661

SEE PART DETAILS - SUP; SCREW SET A

Note: Use up to Engine SN BB37A A.

$

$

Currently unavailable

5

Honda 16016-890-015

SEE PART DETAILS - PRI; SCREW SET A

Note: Use from Engine SN BB37B B.

$

$

Not available

5

Honda 16016-890-015

SEE PART DETAILS - PRI; SCREW SET A

Note: Use up to Engine SN BB37A A.

$

$

Not available

5

Honda 16016-890-015

SEE PART DETAILS - PRI; SCREW SET A

Note: Use from Engine SN BB37B A to BB37B A.

$

$

Not available

6

Honda 16024-124-760

SEE PART DETAILS - PRI; SCREW SET, DRAIN

Note: Use from Engine SN BB37B A.

$14.99

$

Usually ships in 3-6 days

0

6

Honda 16024-890-731

SCREW SET, DRAIN

Note: Use up to Engine SN BB37A B.

$

$

Not available

7

Honda 16028-ZA0-931

SEE PART DETAILS - PRI; SCREW SET

Note: Use from Engine SN BB37B A.

$27.99

$

In Stock, only 1 left!

0

7

Honda 16028-890-731

SCREW SET B (NOT AVAILABLE)

Note: Use up to Engine SN BB37A B.

$

$

Currently unavailable

7

Honda 16028-890-781

SEE PART DETAILS - SUP; SCREW SET B

Note: Use from Engine SN BB37B A.

$

$

Currently unavailable

8

Honda 16100-890-732

CARBURETOR ASSY. (BB37A A) (NOT AVAILABLE)

Note: Use up to Engine SN 1061121.

$

$

Currently unavailable

8

Honda 16100-890-733

CARBURETOR ASSY. (BB37A B) (NOT AVAILABLE)

Note: Use from Engine SN 1061122 to 1074889.

$

$

Currently unavailable

8

Honda 16100-890-734

CARBURETOR ASSY. (BB37B A) (NOT AVAILABLE)

Note: Use from Engine SN 1074890 to 1085754.

$

$

Currently unavailable

8

Honda 16100-890-735

CARBURETOR ASSY. (BB37B A) (NOT AVAILABLE)

Note: Use from Engine SN 1085755 to 1091079.

$

$

Currently unavailable

8

Honda 16100-890-736

CARBURETOR ASSY. (BB37B B) (NOT AVAILABLE)

Note: Use from Engine SN 1091080.

$

$

Currently unavailable

9

Honda 16150-880-000

TUBE, DRAIN

Note: Use from Engine SN 1085755.

$

$

Not available

10

Honda 16166-890-005

NOZZLE, MAIN (NOT AVAILABLE)

Note: Use up to Engine SN BB37A B.

$

$

Not available

10

Honda 16166-890-731

NOZZLE, MAIN

Note: Use from Engine SN BB37B A.

$

$

Not available

11

Honda 16200-880-023

VALVE ASSY., SOLENOID (NOT AVAILABLE)

Note: Use up to Engine SN BB37A B.

$

$

Currently unavailable

11

Honda 16200-890-005

VALVE ASSY., SOLENOID

Note: Use from Engine SN BB37B A.

$

$

Not available

12

Honda 16211-893-000

INSULATOR, CARBURETOR (NOT AVAILABLE)

$

$

Not available

13

Honda 16212-890-306

SEE PART DETAILS - SUP; GASKET, INSULATOR
(Superseded to 16212-890-800)

$

$

Not available

13

Honda 16212-890-800

SEE PART DETAILS - PRI; GASKET, INSULATOR

$

$

Not available

14

Honda 16221-890-306

SEE PART DETAILS - SUP; GASKET, CARBURETOR
(Superseded to 16221-890-800)

$2.99

$

In Stock, only 4 left!

0

14

Honda 16221-890-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.99

$

In Stock, only 4 left!

0

16

Honda 06102-893-305

SEE PART DETAILS - SUP; STAY SET, SOLENOID

$

$

Not available

16

Honda 16260-893-020

SEE PART DETAILS - SUP; STAY, SOLENOID

$

$

Not available

17

Honda 16264-880-010

ROD, CHOKE (NOT AVAILABLE)

$

$

Not available

18

Honda 16265-880-013

CHOKE, SOLENOID

Note: Use up to Engine SN 1080898.

$

$

Currently unavailable

18

Honda 16265-880-023

SEE PART DETAILS - SUP; CHOKE, SOLENOID (N/A: USE ALTERNATE P/N 06162-ZA0-315)

Note: Use from Engine SN 1080899.

$

$

Not available

19

Honda 16266-893-000

ROD, MANUAL CHOKE (NOT AVAILABLE)

$

$

Currently unavailable

20

Honda 16268-893-000

SPRING, CHOKE RETURN

$3.99

$

Usually ships in 3-6 days

0

21

Honda 16269-890-306

SEE PART DETAILS - SUP; GASKET, AIR CLEANER
(Superseded to 16269-890-800)

$1.99

$

In Stock, only 3 left!

0

21

Honda 16269-890-800

SEE PART DETAILS - PRI; GASKET, AIR CLEANER

$1.99

$

In Stock, only 3 left!

0

22

Honda 16270-893-010

COVER, SOLENOID

$

$

Not available

23

Honda 16273-893-000

BRACKET, CHOKE STAY

$

$

Not available

24

Honda 16613-893-000

GROMMET, CHOKE ROD

$3.99

$

In Stock, only 2 left!

0

25

Honda 16615-893-000

GUIDE, CHOKE ROD

$4.99

$

In Stock, only 1 left!

0

28

Honda 92101-05008-0A

SEE PART DETAILS - PRI; BOLT, HEX. (5X8)

$1.49

$

Usually ships in 3-6 days

0

29

Honda 93892-05012-08

SCREW-WASHER (5X12)

$1.49

$

In Stock, only 3 left!

0

30

Honda 94111-05000

WASHER, SPRING (5MM)

$1.49

$

Usually ships in 3-6 days

0

31

Honda 94201-16250

PIN, COTTER (1.6X25)

Note: Use from Engine SN 1022282.

$1.49

$

Usually ships in 3-6 days

0

31

Honda 94201-20150

PIN, SPLIT (2.0X15)

Note: Use up to Engine SN 1022281.

$1.49

$

In Stock, only 2 left!

0

32

Honda 95002-50000

CLIP, TUBE (C9)

Note: Use from Engine SN 1085755.

$1.99

$

In Stock, Qty 20+

0

33

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

34

Honda 99101-124-0900

JET, MAIN (#90)

Note: Use up to Engine SN BB37A B.

$11.99

$

Usually ships in 3-6 days

0

34

Honda 99101-124-0980

JET, MAIN (#98)

Note: Use from Engine SN BB37B A.

$12.99

$

Usually ships in 3-6 days

0

34

Honda 99101-124-1000

JET, MAIN (#100)

Note: Use from Engine SN BB37B A.

$11.99

$

Usually ships in 3-6 days

0

34

Honda 99101-124-1020

JET, MAIN (#102)

Note: Use from Engine SN BB37B A.

$11.99

$

Usually ships in 3-6 days

0

34

Honda 99101-124-0820

JET, MAIN (#82)

$11.99

$

Usually ships in 3-6 days

0

34

Honda 99101-124-0850

JET, MAIN (#85)

$11.99

$

Usually ships in 3-6 days

0

34

Honda 99101-124-0880

JET, MAIN (#88)

$11.99

$

Usually ships in 3-6 days

0

34

Honda 99101-124-0920

JET, MAIN (#92)

$11.99

$

Usually ships in 3-6 days

0

34

Honda 99101-124-0920

JET, MAIN (#92) Use from Engine SN BB37B A.

$11.99

$

Usually ships in 3-6 days

0
