ES4500 A (ES4500) - Honda Generator, Made in Japan (SN: ES4500-1000005 - ES4500-1020560) CYLINDER HEAD + CYLINDER Parts Diagram

Generator, Made in Japan

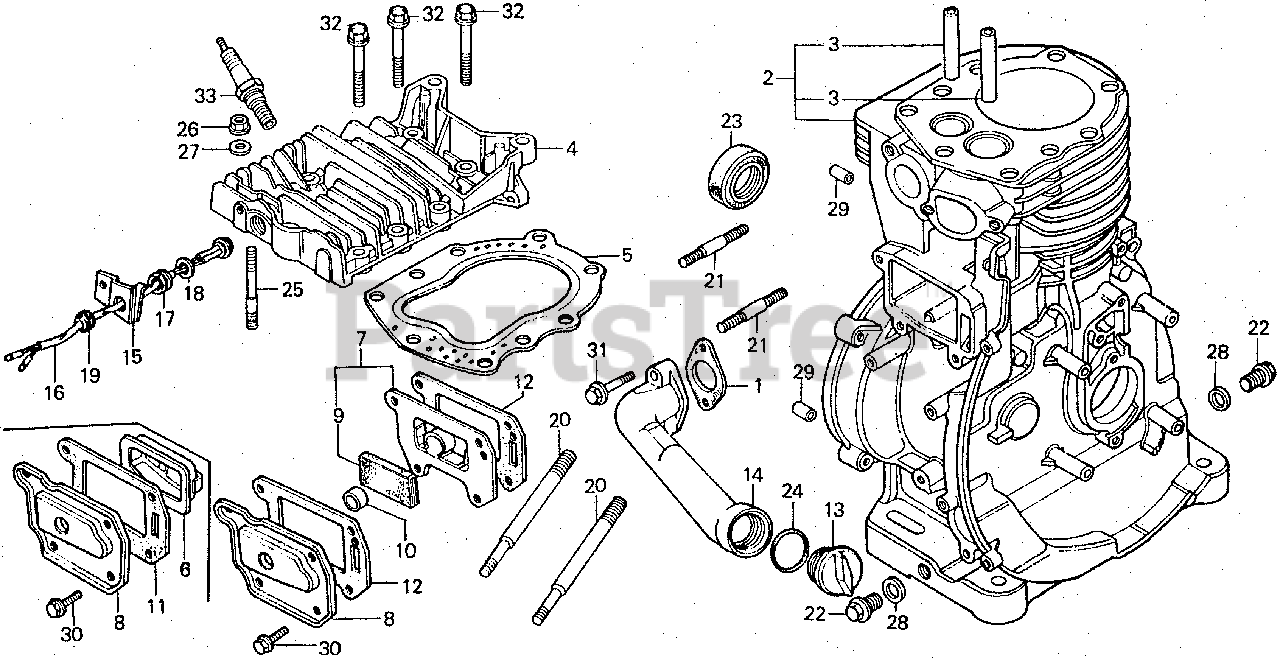

CYLINDER HEAD + CYLINDER Parts Diagram

  • Title

1

Honda 11211-822-306

GASKET, OIL PAN

$

$

Not available

2

Honda 12100-890-325

CYLINDER (CRANKSHAFT P.T.O.)

Note: Use up to Engine SN 1095397.

$

$

Currently unavailable

2

Honda 12100-890-335

CYLINDER (CRANKSHAFT P.T.O.) (NOT AVAILABLE)

Note: Use from Engine SN 1095398.

$

$

Currently unavailable

3

Honda 12134-890-305

GUIDE, VALVE

$9.49

$

Usually ships in 3-6 days

0

4

Honda 12221-890-731

CYLINDER HEAD (NOT AVAILABLE)

$

$

Not available

5

Honda 12281-890-306

SEE PART DETAILS - SUP; GASKET, CYLINDER HEAD

$

$

Not available

5

Honda 12281-891-610

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD

$

$

Not available

6

Honda 12360-889-000

SEE PART DETAILS - SUP; CASE, BREATHER

$

$

Currently unavailable

6

Honda 12360-889-010

SEE PART DETAILS - PRI; CASE, BREATHER

$

$

Not available

8

Honda 12361-890-000

COVER, TAPPET

$

$

Not available

11

Honda 12375-ZA1-000

GASKET, TAPPET COVER

$

$

Not available

13

Honda 15611-921-000

CAP, OIL (YELLOW)

$13.99

$

Usually ships in 3-6 days

0

14

Honda 15632-890-010

PIPE, OIL

$

$

Not available

15

Honda 16279-880-000

COVER, THERMOSTAT SWITCH

$

$

Not available

16

Honda 16500-880-023

SWITCH ASSY., THERMOSTAT (NOT AVAILABLE)

$

$

Not available

17

Honda 16501-880-000

BOSS, THERMOSTAT SWITCH (NOT AVAILABLE)

$

$

Currently unavailable

18

Honda 16502-880-000

WASHER, SWITCH BOSS

$1.99

$

Usually ships in 3-6 days

0

19

Honda 80102-323-000

GROMMET, CABLE

$

$

Not available

20

Honda 90042-890-010

BOLT, STUD (8X110)

Note: Use up to Engine SN 1091034.

$8.49

$

Usually ships in 3-6 days

0

20

Honda 90042-890-680

BOLT, STUD (8X104)

Note: Use from Engine SN 1091035.

$8.99

$

Usually ships in 3-6 days

0

21

Honda 90047-883-000

BOLT, STUD (8X35)

$4.99

$

Usually ships in 3-6 days

0

22

Honda 90131-883-000

SEE PART DETAILS - SUP; BOLT, DRAIN PLUG (12X15)

$

$

Not available

22

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$4.99

$

In Stock, only 2 left!

0

23

Honda 91201-890-003

OIL SEAL (30X46X8)

$11.99

$

Usually ships in 3-6 days

0

24

Honda 91301-805-000

O-RING (26X2.7)

$4.99

$

Usually ships in 3-6 days

0

28

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, Qty 7

0

29

Honda 94301-08140

PIN, DOWEL (8X14)

$2.99

$

In Stock, Qty 10

0

30

Honda 95700-06012-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Currently unavailable

30

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0

31

Honda 95700-06025-08

BOLT, FLANGE (6X25)

$2.49

$

Usually ships in 3-6 days

0

31

Honda 95701-06025-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25)

$2.49

$

Usually ships in 3-6 days

0

32

Honda 95730-10055-08

BOLT, FLANGE (10X55)

$2.99

$

Usually ships in 3-6 days

0

33

Honda 98076-54914

SEE PART DETAILS - SUP; SPARK PLUG (BPR-4HS-10) (NGK)
(Superseded to 98076-54917)

$3.49

$

In Stock, only 3 left!

0

33

Honda 98076-54917

SEE PART DETAILS - PRI; SPARK PLUG (BPR4HS-10) (NGK)

$3.49

$

In Stock, only 3 left!

0
