ES4500 A (ES4500) - Honda Generator, Made in Japan (SN: ES4500-1000005 - ES4500-1020560) CONTROL BOX + GENERATOR + BELT COVER Parts Diagram

Generator, Made in Japan

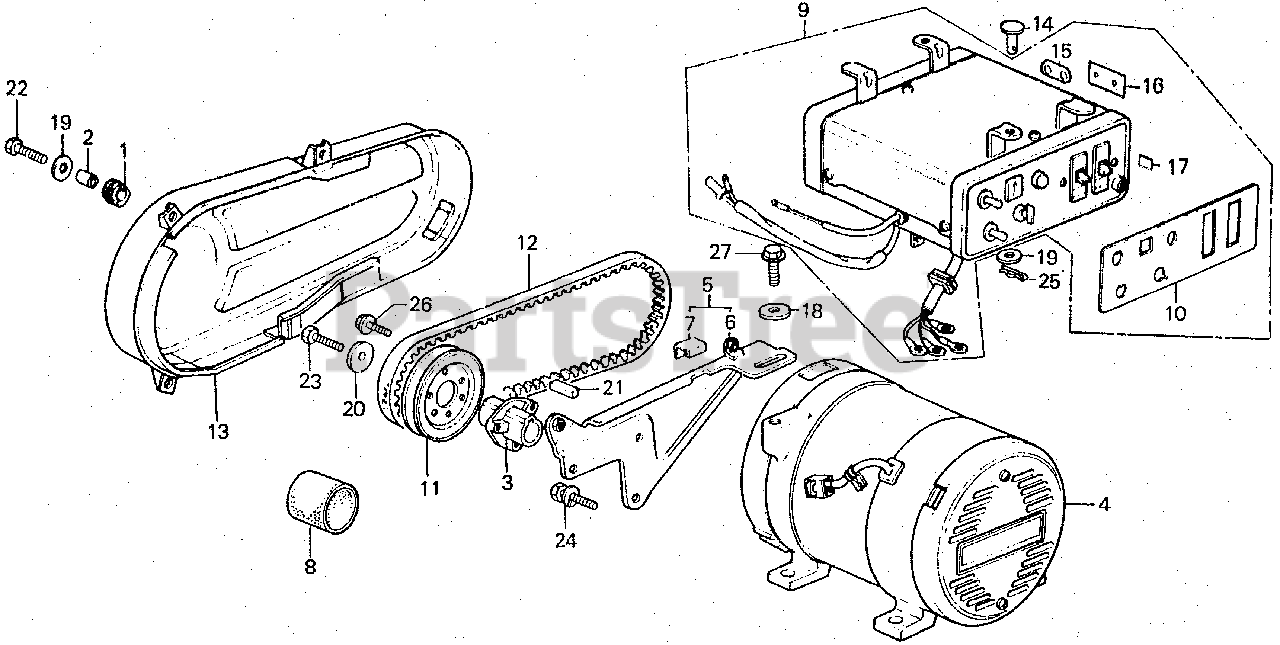

CONTROL BOX + GENERATOR + BELT COVER Parts Diagram

  • Title
1

Honda 17631-700-000

RUBBER, TANK CUSHION (NOT AVAILABLE)

$

$

Not available

2

Honda 17642-839-000

COLLAR, DISTANCE

$

$

Currently unavailable

3

Honda 22426-877-000

BOSS, DRIVE PULLEY (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 31000-893-680ZA

GENERATOR ASSY. *R8/NH31/NH1* (BRIGHT RED/MC KINLEY WHITE/ BLACK) (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 31180-893-000

STAY ASSY., GENERATOR (NOT AVAILABLE)

$

$

Not available

6

Honda 31181-893-000

STAY, GENERATOR (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 31185-893-000

SEAT, RUBBER

$

$

Not available

8

Honda 31209-893-720

PROTECTOR, STARTER

Note: Use from Frame SN 1014036.

$

$

Not available

9

Honda 31400-893-672H

BOX ASSY., CONTROL *R8* (BRIGHT RED)

$

$

Not available

10

Honda 31406-893-670

MARK, CONTROL BOX PANEL (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 49114-893-690

PULLEY (141MM) (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 49212-893-691

V-BELT (B-38) (NOT AVAILABLE)

$

$

Not available

13

Honda 63610-880-030H

COVER, BELT *R8* (BRIGHT RED) (NOT AVAILABLE)

$

$

Currently unavailable

14

Honda 68331-876-000

PIN, CONTROL BOX SETTING

$5.49

$

In Stock, only 2 left!

0

15

Honda 87524-893-680

MARK, D.C. CAUTION

$

$

Not available

16

Honda 87528-893-680

MARK, A.C. OUTPUT

$

$

Not available

17

Honda 87534-880-000

SEE PART DETAILS - SUP; MARK, GROUND

$

$

Currently unavailable

18

Honda 90401-880-000

WASHER (10X30X3.5T)

$11.99

$

In Stock, only 3 left!

0

19

Honda 91412-538-000

WASHER, FLAT (20MM)

$

$

Not available

20

Honda 90534-706-010

WASHER, LOCK (8MM)

$6.99

$

Usually ships in 3-6 days

0

21

Honda 90741-889-810

SEE PART DETAILS - PRI; KEY (7X7X33) (YELLOW)

$9.99

$

Usually ships in 3-6 days

0

22

Honda 92101-06020-0A

BOLT, HEX. (6X20)

$1.49

$

Usually ships in 3-6 days

0

23

Honda 92101-08025-0A

BOLT, HEX. (8X25)

$2.49

$

In Stock, Qty 6

0

24

Honda 93401-08020-00

SEE PART DETAILS - PRI; BOLT-WASHER (8X20)

$1.99

$

Usually ships in 3-6 days

0

25

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 9

0

26

Honda 95701-06016-08

BOLT, FLANGE (6X16)

$1.99

$

In Stock, Qty 5

0

27

Honda 95701-10025-00

BOLT, FLANGE (10X25)

$2.99

$

In Stock, Qty 7

0
