ES4500 A (ES4500) - Honda Generator, Made in Japan (SN: ES4500-1000005 - ES4500-1020560) C.D.I. UNIT + EXCITER COIL Parts Diagram

Generator, Made in Japan

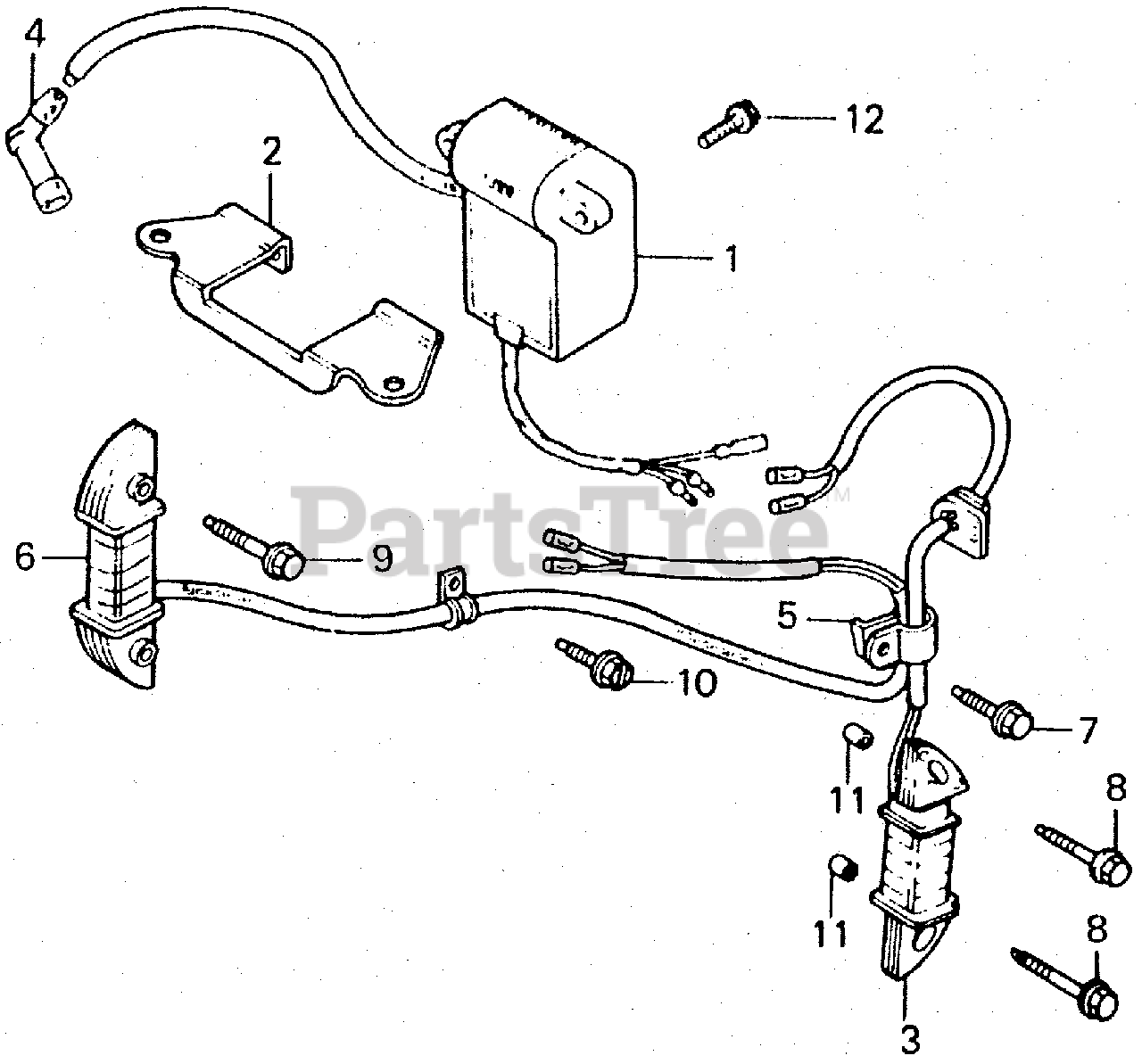

C.D.I. UNIT + EXCITER COIL Parts Diagram

  • Title

1

Honda 30580-728-631

SEE PART DETAILS - PRI; LAMP UNIT, C.D.I.

$302.99

$

Usually ships in 0 days

0

2

Honda 30586-889-730

STAY, IGNITION CONTROL MODULE

$12.99

$

Usually ships in 3-6 days

0

3

Honda 30590-889-782

COIL ASSY., EXCITER LAMP (STARTER)(LAMP)

$

$

Not available

4

Honda 30700-890-000

SEE PART DETAILS - SUP; CAP ASSY., NOISE SUPPRESSOR
(Superseded to 30700-890-013)

Note: Use up to Engine SN 1078889.

$

$

Not available

4

Honda 30700-890-013

SEE PART DETAILS - PRI; CAP ASSY., NOISE SUPPRESSOR

$

$

Not available

5

Honda 30702-890-000

CLAMP, IGNITION WIRE

$6.99

$

Usually ships in 3-6 days

0

6

Honda 31630-890-801

COIL ASSY., CHARGE (SILICON RECTIFIER)

$

$

Not available

7

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

8

Honda 90015-883-000

BOLT, FLANGE (6X28)

$3.99

$

In Stock, Qty 8

0

9

Honda 90017-883-000

BOLT, FLANGE (6X32)

$3.49

$

In Stock, only 1 left!

0

10

Honda 90019-883-000

BOLT, FLANGE (5X10)

$3.49

$

Usually ships in 3-6 days

0

11

Honda 94301-08140

PIN, DOWEL (8X14)

$2.99

$

In Stock, Qty 8

0

12

Honda 95700-06012-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Currently unavailable

12

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0
