ES4500 A (ES4500) - Honda Generator, Made in Japan (SN: ES4500-1000005 - ES4500-1020560) BRUSH HOLDER + D.C. DIODE Parts Diagram

Generator, Made in Japan

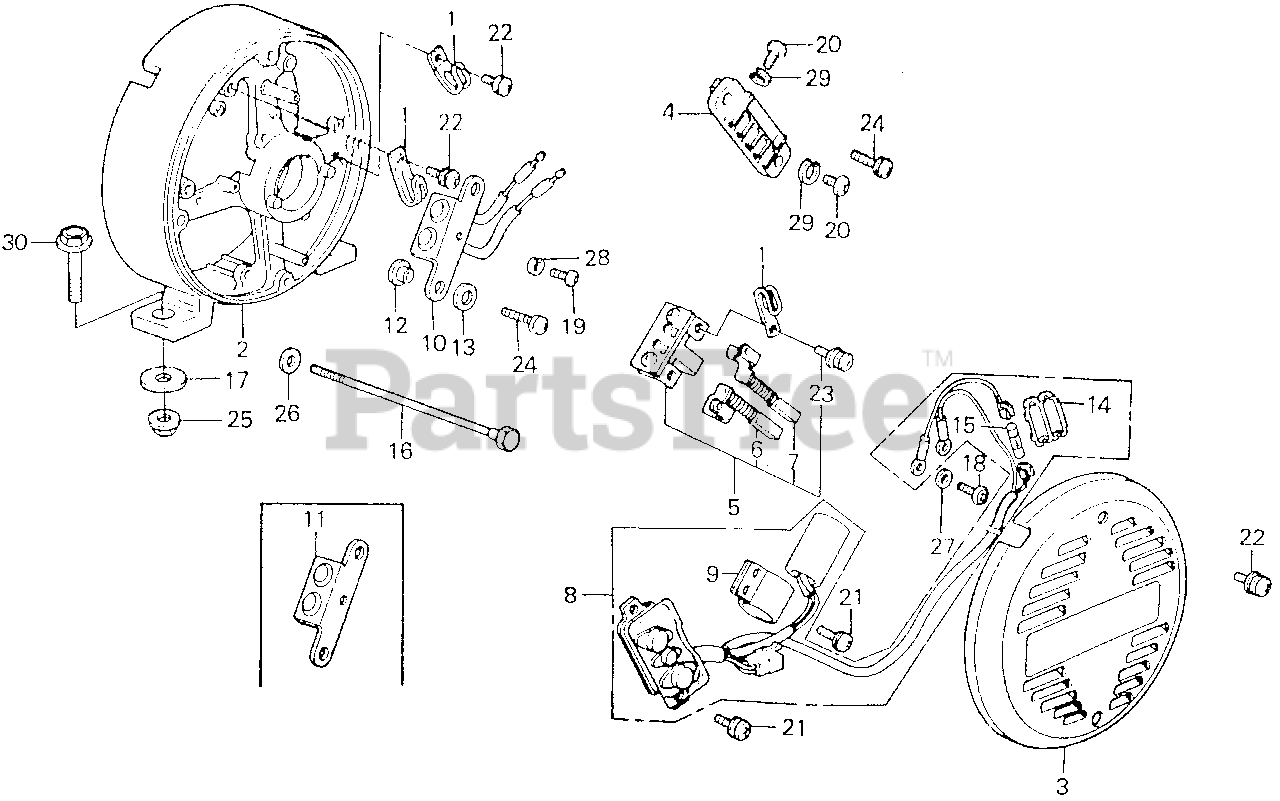

BRUSH HOLDER + D.C. DIODE Parts Diagram

  • Title

1

Honda 30564-871-601

CLAMP B, WIRE

$7.49

$

Usually ships in 3-6 days

0

2

Honda 31108-880-000XC

HOUSING, RR. *NH31* (MCKINLEY WHITE) (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 31113-893-000H

COVER, ALTERNATOR END *R8* (BRIGHT RED) (NOT AVAILABLE)

$

$

Not available

4

Honda 31118-880-000

TERMINAL, A.C. OUT

$65.99

$

Usually ships in 3-6 days

0

5

Honda 31120-880-010

SEE PART DETAILS - PRI; HOLDER ASSY., BRUSH

$

$

Not available

6

Honda 31122-880-000

BRUSH

$31.99

$

In Stock, only 2 left!

0

7

Honda 31128-880-000

BRUSH

$31.99

$

Usually ships in 3-6 days

0

8

Honda 31410-893-003

REGULATOR ASSY., AUTOMATIC VOLTAGE (NOT AVAILABLE)

$

$

Not available

9

Honda 31427-880-000

HOLDER, CONDENSER

$9.49

$

Usually ships in 3-6 days

0

10

Honda 31700-880-000

DIODE ASSY., D.C. (NOT AVAILABLE)

Note: Use up to Frame SN 1010616.

$

$

Not available

11

Honda 31705-880-003

DIODE, D.C. (NOT AVAILABLE)

Note: Use from Frame SN 1010617.

$

$

Currently unavailable

12

Honda 31706-880-000

BUSH, INSULATING

$7.99

$

Usually ships in 3-6 days

0

13

Honda 31707-880-000

WASHER, INSULATING

$

$

Not available

14

Honda 32111-230-000

CASE, FUSE CONNECTOR

$5.49

$

Usually ships in 3-6 days

0

15

Honda 38218-836-730

SEE PART DETAILS - PRI; FUSE ASSY., SPARE

$

$

Not available

16

Honda 90101-893-003

BOLT, HEX. (6X206)

$

$

Not available

17

Honda 90501-579-020

WASHER, EX. MANIFOLD

$7.49

$

Usually ships in 3-6 days

0

18

Honda 93500-04008-3J

SCREW, PAN (4X8)

$1.49

$

Usually ships in 3-6 days

0

19

Honda 93500-05012-3J

SCREW, PAN (5X12)

$1.49

$

Usually ships in 3-6 days

0

20

Honda 93500-06008-3J

SCREW, PAN (6X8)

$1.99

$

Usually ships in 3-6 days

0

21

Honda 93891-05012-08

SCREW-WASHER (5X12)

$1.49

$

In Stock, only 2 left!

0

22

Honda 93893-05010-08

SCREW-WASHER (5X10)

$1.99

$

Usually ships in 3-6 days

0

23

Honda 93893-05014-08

SCREW-WASHER (5X14)

$1.99

$

Usually ships in 3-6 days

0

24

Honda 93893-05020-08

SCREW-WASHER (5X20)

$1.99

$

Usually ships in 3-6 days

0

25

Honda 94050-10000

SEE PART DETAILS - PRI; NUT, FLANGE (10MM)

$1.99

$

Usually ships in 3-6 days

0

26

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 9

0

27

Honda 94111-04800

WASHER, SPRING (4MM)

$1.49

$

Usually ships in 3-6 days

0

28

Honda 94111-05800

WASHER, SPRING (5MM)

$1.49

$

Usually ships in 3-6 days

0

29

Honda 94111-06800

WASHER, SPRING (6MM)

$1.49

$

Usually ships in 3-6 days

0

30

Honda 95701-10032-00

BOLT, FLANGE (10X32)

$1.99

$

Usually ships in 3-6 days

0
