ES3500 K1 A (ES3500) - Honda Generator, Made in Japan (SN: ES3500-1100014 - ES3500-1129443) STARTER MOTOR Parts Diagram

Generator, Made in Japan

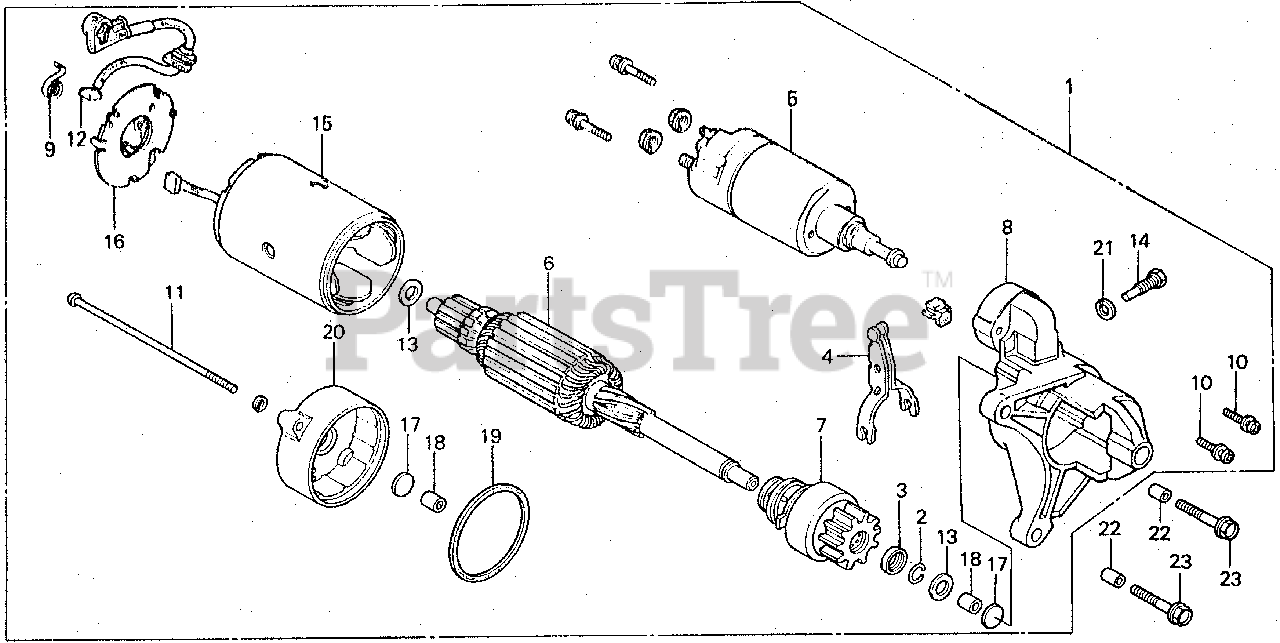

STARTER MOTOR Parts Diagram

  • Title

1

Honda 31200-889-831

MOTOR ASSY., STARTER

$

$

Currently unavailable

2

Honda 31201-590-004

RING, SNAP (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 31202-590-004

COLLAR, CLUTCH STOP

$

$

Not available

4

Honda 31203-611-004

LEVER, PINION (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 31204-890-801

SWITCH, MAGNETIC

$

$

Currently unavailable

6

Honda 31206-890-801

ARMATURE (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 31207-890-801

PINION

$

$

Not available

8

Honda 31208-890-801

CASE, GEAR

$

$

Not available

9

Honda 31212-611-004

SPRING, BRUSH

$

$

Currently unavailable

10

Honda 31213-611-004

SCREW, MAGNETIC SWITCH SETTING

$

$

Not available

11

Honda 31214-611-004

BOLT, THROUGH

$

$

Not available

12

Honda 31215-890-801

BRUSH

$

$

Not available

13

Honda 31216-611-004

WASHER

$

$

Not available

14

Honda 31217-890-801

SCREW, ARMATURE SETTING

$

$

Not available

15

Honda 31218-890-801

COIL, FIELD

$

$

Not available

16

Honda 31231-890-801

HOLDER, BRUSH

$

$

Not available

17

Honda 31232-611-004

COVER, BEARING

$

$

Not available

18

Honda 31233-611-004

BUSH, BEARING

$

$

Not available

19

Honda 31234-611-004

GASKET, RUBBER PLATE

$

$

Not available

20

Honda 31219-611-004

COVER, RR.

$

$

Not available

21

Honda 94111-08000

WASHER, SPRING (8MM)

$1.49

$

Usually ships in 3-6 days

0

22

Honda 94301-10160

PIN A, DOWEL (10X16)

$3.49

$

In Stock, only 3 left!

0

23

Honda 95701-08035-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X35)

$1.99

$

Usually ships in 3-6 days

0
