ES3500 K1 A (ES3500) - Honda Generator, Made in Japan (SN: ES3500-1100014 - ES3500-1129443) FAN COVER + SIDE PLATE Parts Diagram

Generator, Made in Japan

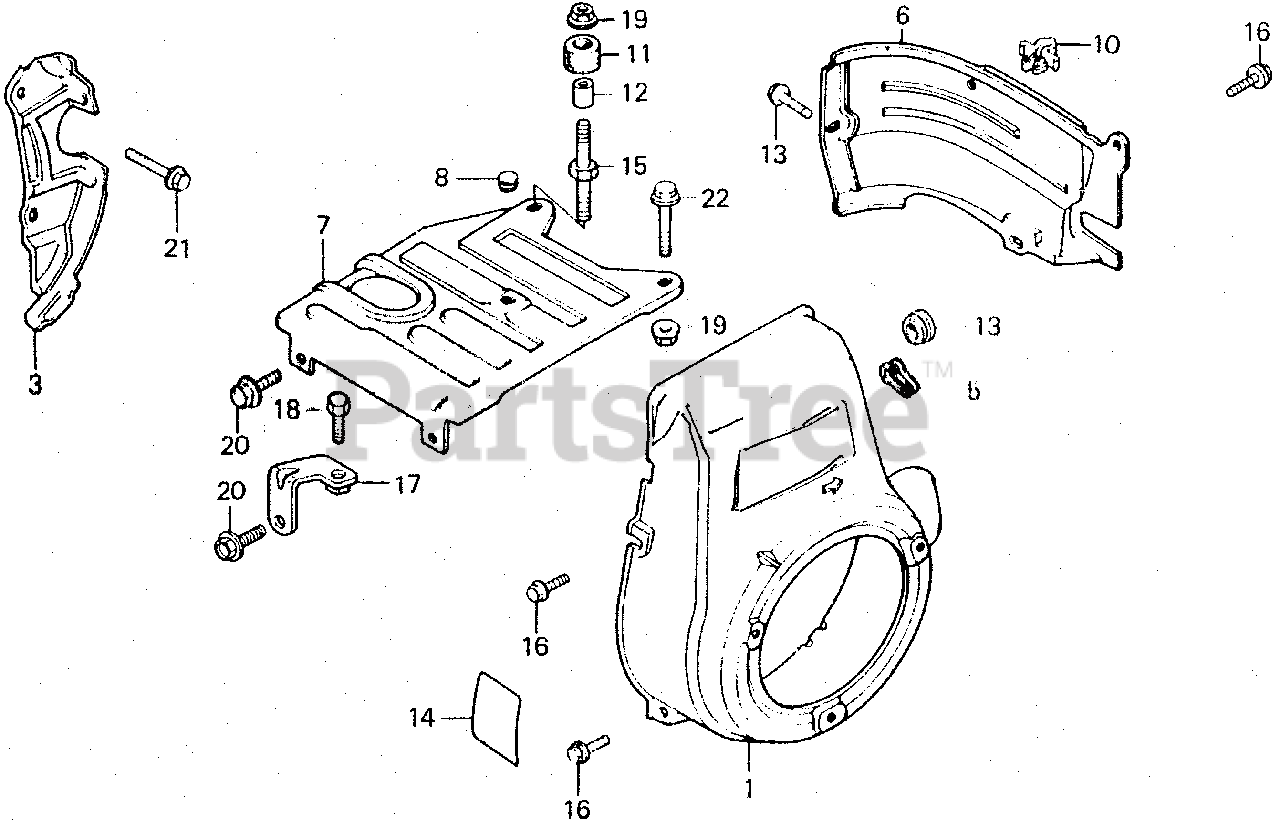

FAN COVER + SIDE PLATE Parts Diagram

  • Title
1

Honda 19610-890-801ZA

SEE PART DETAILS - PRI; COVER, FAN *R8* (BRIGHT RED)

$

$

Not available

4

Honda 19611-890-800

PLATE, SIDE

$

$

Not available

5

Honda 19614-889-730

GROMMET, FAN COVER

$

$

Not available

6

Honda 19631-890-010ZA

SHROUD *R8* (BRIGHT RED)

$

$

Not available

7

Honda 19641-890-010H

SEE PART DETAILS - SUP; COVER, TOP *R8* (BRIGHT RED)

$

$

Currently unavailable

7

Honda 19641-890-010ZB

SEE PART DETAILS - PRI; COVER, TOP *R8* (BRIGHT RED)

$

$

Not available

8

Honda 19643-890-730

GROMMET, COVER

$

$

Not available

10

Honda 30701-883-000

SEE PART DETAILS - PRI; CLIP, IGNITION WIRE (8MM)

$3.99

$

In Stock, only 1 left!

0

11

Honda 50318-839-000

RUBBER, STOPPER (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 50319-839-000

COLLAR, DISTANCE

$3.99

$

Usually ships in 3-6 days

0

13

Honda 81329-567-020

GROMMET, DRAIN HOLE

$5.49

$

Usually ships in 3-6 days

0

14

Honda 87594-889-600

MARK, OIL CAUTION

$

$

Not available

15

Honda 90001-880-010

BOLT, SPECIAL HEX.

$

$

Not available

16

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

17

Honda 91405-880-000

PLATE, CLAMP

$

$

Not available

18

Honda 92000-08012-0A

SEE PART DETAILS - SUP; BOLT, HEX. (8X12)

$

$

Currently unavailable

19

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 16

0

20

Honda 95701-08016-08

BOLT, FLANGE (8X16)

$2.49

$

In Stock, only 3 left!

0

21

Honda 95701-08020-08

BOLT, FLANGE (8X20)

$2.49

$

Usually ships in 3-6 days

0

22

Honda 95701-08028-00

BOLT, FLANGE (8X28)

$1.99

$

In Stock, Qty 5

0
