ES3500 K1 A (ES3500) - Honda Generator, Made in Japan (SN: ES3500-1100014 - ES3500-1129443) ES3500 CIRCUIT BREAKER + CONTROL UNIT K1-K2 Parts Diagram

Generator, Made in Japan

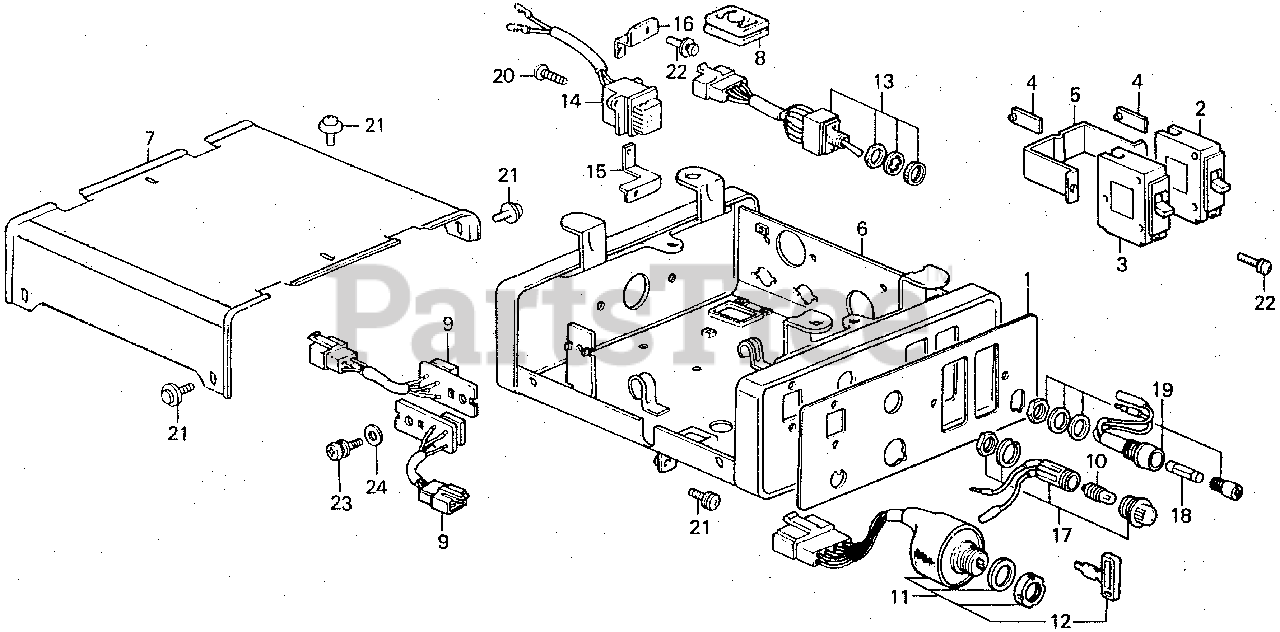

ES3500 CIRCUIT BREAKER + CONTROL UNIT K1-K2 Parts Diagram

  • Title

1

Honda 31406-880-670

PANEL, BOX

$

$

Not available

2

Honda 31411-880-680

BREAKER, CIRCUIT (33A) (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 31412-880-680

BREAKER, CIRCUIT (16.5A) (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 31414-880-000

TERMINAL, BREAKER

$20.99

$

Usually ships in 3-6 days

0

5

Honda 31415-880-000

SUPPORT, BREAKER (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 31450-880-672H

BOX, CONTROL *R8* (BRIGHT RED)

$

$

Not available

7

Honda 31455-880-000H

COVER, BOX (UPPER) *R8* (BRIGHT RED)

$

$

Not available

8

Honda 31483-880-670

GROMMET, REMOTE CONTROL

$

$

Not available

9

Honda 31710-880-003

SEE PART DETAILS - PRI; STACK ASSY., DIODE

$

$

Not available

10

Honda 34909-880-000

BULB (24V2W)

$9.49

$

Usually ships in 3-6 days

0

11

Honda 35100-ZA0-013

SEE PART DETAILS - SUP; SWITCH ASSY., COMBINATION
(Superseded to 35100-ZA0-023)

$119.99

$

Usually ships in 3-6 days

0

11

Honda 35100-880-672

SEE PART DETAILS - SUP; SWITCH ASSY., COMBINATION

$119.99

$

Usually ships in 0 days

0

12

Honda 35111-880-003

SEE PART DETAILS - SUP; KEY
(Superseded to 35111-880-013)

$11.99

$

In Stock, only 3 left!

0

12

Honda 35111-880-013

SEE PART DETAILS - PRI; KEY

$11.99

$

In Stock, only 3 left!

0

13

Honda 36130-880-671

SWITCH ASSY., CONTROL

$

$

Currently unavailable

14

Honda 37500-871-153

METER, FREQUENCY

$

$

Not available

15

Honda 37501-880-000

HOLDER A, FREQUENCY METER

$

$

Not available

16

Honda 37502-880-000

HOLDER B, FREQUENCY METER

$

$

Not available

17

Honda 37560-880-000

SEE PART DETAILS - SUP; SOCKET ASSY., PILOT LAMP
(Superseded to 37560-ZA0-003)

$37.99

$

Usually ships in 3-6 days

0

18

Honda 38201-868-158

SEE PART DETAILS - SUP; FUSE (15A)
(Superseded to 38201-880-000)

$4.49

$

Usually ships in 3-6 days

0

19

Honda 38210-880-680

HOLDER, FUSE (NOT AVAILABLE)

$

$

Currently unavailable

20

Honda 93500-03008-0H

SCREW, PAN (3X8)

$0.99

$

In Stock, Qty 8

0

21

Honda 93891-05012-08

SCREW-WASHER (5X12)

$1.49

$

In Stock, only 2 left!

0

22

Honda 93892-04012-08

SCREW-WASHER (4X12)

$0.99

$

Usually ships in 3-6 days

0

23

Honda 93892-06012-08

SCREW-WASHER (6X12)

$1.99

$

Usually ships in 3-6 days

0

24

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0
