ES3500 K1 A (ES3500) - Honda Generator, Made in Japan (SN: ES3500-1100014 - ES3500-1129443) CRANKSHAFT Parts Diagram

Generator, Made in Japan

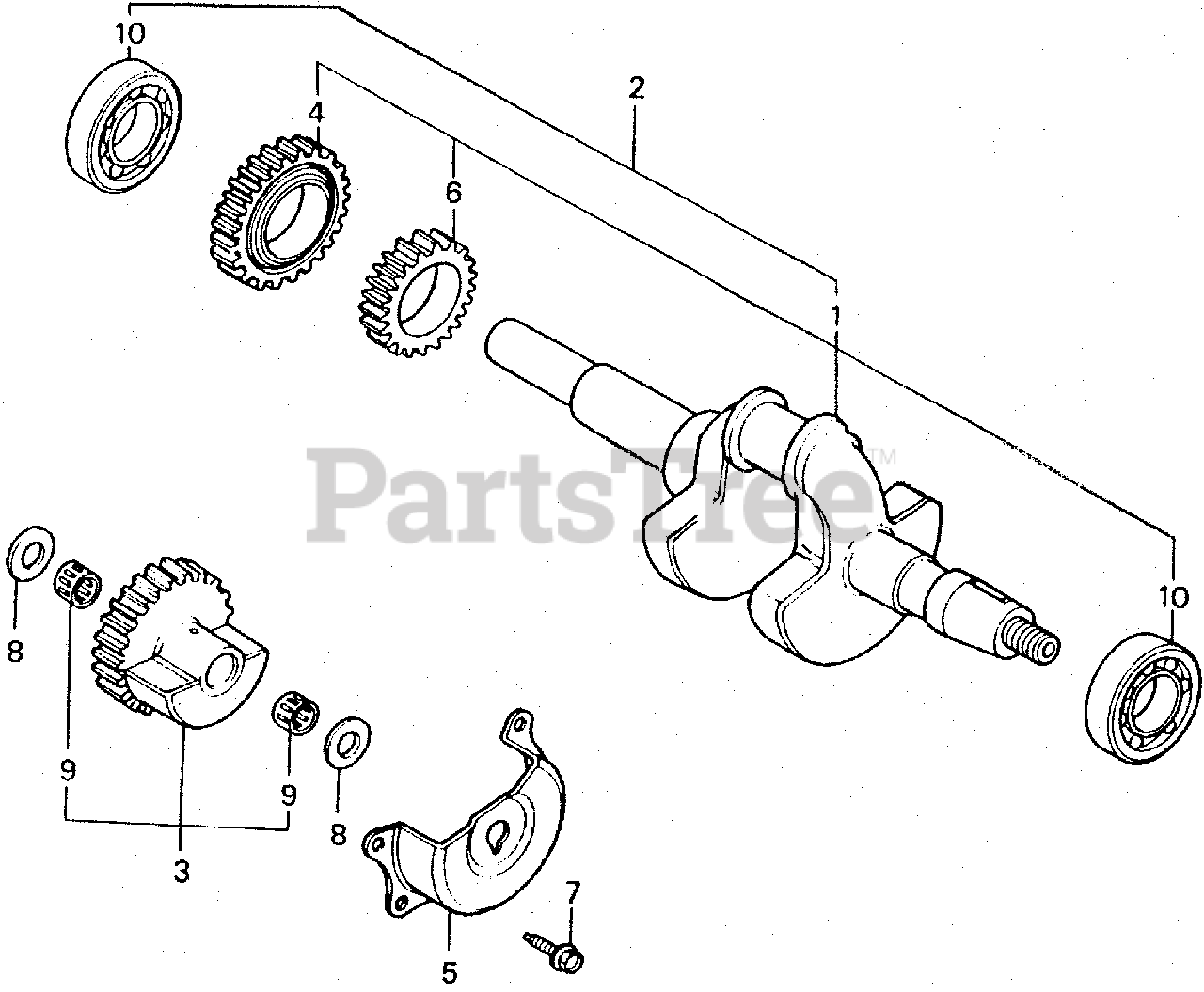

CRANKSHAFT Parts Diagram

  • Title

1

Honda 13310-890-020

CRANKSHAFT (S-TYPE)

Note: Use up to Engine SN 1086089.

$

$

Not available

2

Honda 13310-890-020

CRANKSHAFT (S-TYPE)

Note: Use from Engine SN 1086090.

$

$

Not available

3

Honda 13350-890-010

WEIGHT, BALANCER

$127.99

$

Usually ships in 3-6 days

0

4

Honda 13352-890-300

GEAR, BALANCER

$83.99

$

Usually ships in 3-6 days

0

5

Honda 13354-890-000

COVER, BALANCER

$

$

Currently unavailable

6

Honda 14311-890-300

GEAR, TIMING

$

$

Not available

7

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

Note: Use up to Engine SN 1039236.

$1.99

$

In Stock, Qty 20+

0

7

Honda 90061-161-000

BOLT, FLANGE (6X16)

Note: Use from Engine SN 1039237.

$3.99

$

Usually ships in 3-6 days

0

8

Honda 90451-166-000

SEE PART DETAILS - PRI; WASHER, THRUST (15MM)

$

$

Not available

8

Honda 90454-360-000

SEE PART DETAILS - SUP; WASHER, THRUST (15MM)

$

$

Currently unavailable

9

Honda 91021-890-000

BEARING, NEEDLE

$25.99

$

Usually ships in 3-6 days

0

10

Honda 96100-62060-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6206)

Note: Use up to Engine SN 1086089.

$30.99

$

In Stock, only 1 left!

0

10

Honda 96100-62060-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6206)

Note: Use from Engine SN 1086090.

$30.99

$

In Stock, only 1 left!

0
