ES3500 A (ES3500) - Honda Generator, Made in Japan (SN: ES3500-1000032 - ES3500-1028641) RECEPTACLE + D.C. OUT TERMINAL Parts Diagram

Generator, Made in Japan

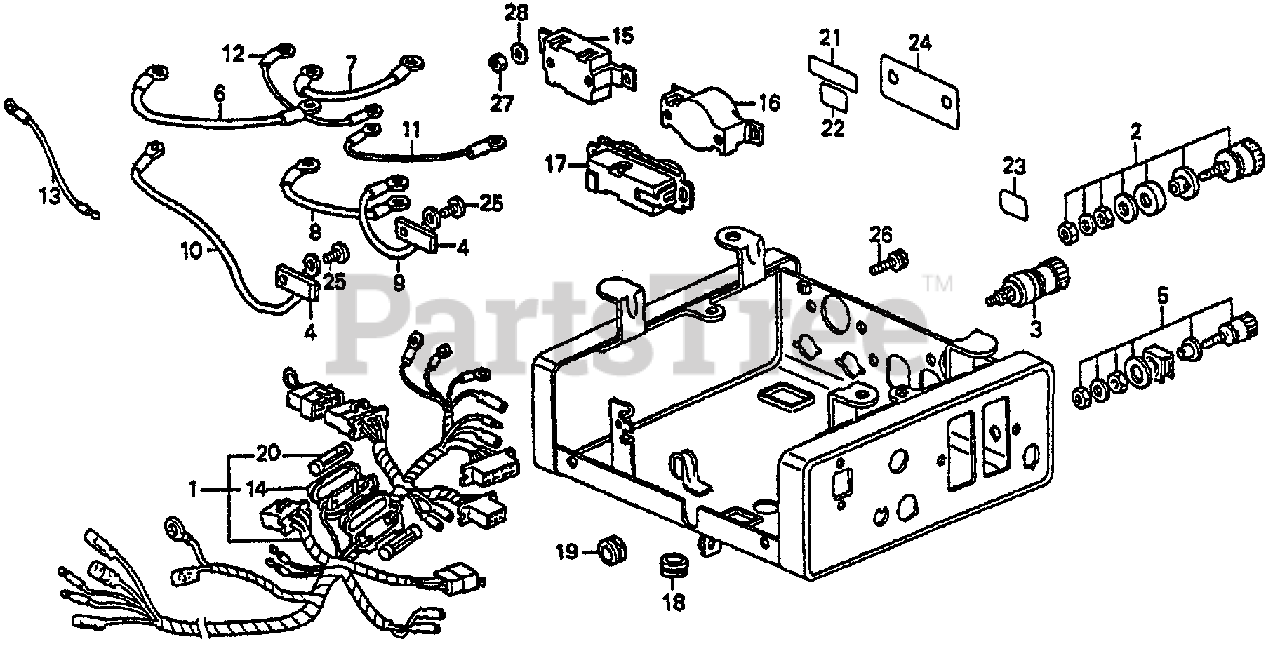

RECEPTACLE + D.C. OUT TERMINAL Parts Diagram

  • Title

1

Honda 31404-880-670

WIRE HARNESS, BOX

Note: Use up to Frame SN 1004954.

$

$

Not available

1

Honda 31404-880-671

WIRE HARNESS, BOX

Note: Use from Frame SN 1004955.

$

$

Not available

2

Honda 31408-880-000

TERMINAL, D.C. OUT (+)

$46.99

$

Usually ships in 3-6 days

0

3

Honda 31409-880-000

SEE PART DETAILS - PRI; TERMINAL, D.C. OUT (-)

$46.99

$

Usually ships in 3-6 days

0

4

Honda 31414-880-000

TERMINAL, BREAKER

$18.99

$

Usually ships in 3-6 days

0

5

Honda 31428-880-000

SEE PART DETAILS - PRI; TERMINAL ASSY., GROUND

$

$

Currently unavailable

6

Honda 31561-880-000

WIRE, RECEPTACLE CONNECTING (200)

$

$

Not available

7

Honda 31562-880-680

WIRE, RECEPTACLE CONNECTING (100)

$

$

Not available

8

Honda 31571-880-680

WIRE, RECEPTACLE CONNECTING (100) (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 31576-880-680

WIRE, RECEPTACLE CIRCUIT BREAKER CONNECTING (100)

$

$

Not available

10

Honda 31586-880-680

WIRE, RECEPTACLE CIRCUIT BREAKER CONNECTING (200)

$

$

Not available

11

Honda 31591-880-680

WIRE, RECEPTACLE CONNECTING (100) (GROUND) (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 31592-880-680

WIRE, RECEPTACLE CONNECTING (200) (GROUND)

$

$

Not available

13

Honda 31596-880-000

WIRE, D.C. OUT

$

$

Not available

14

Honda 32111-230-000

CASE, FUSE CONNECTOR

Note: Use from Frame SN 1004955.

$5.49

$

Usually ships in 3-6 days

0

15

Honda 32331-880-680

RECEPTACLE (20A/250V)

$

$

Not available

16

Honda 32332-880-680

RECEPTACLE (30A 250V)

$156.99

$

Usually ships in 3-6 days

0

17

Honda 32333-880-680

SEE PART DETAILS - PRI; RECEPTACLE (15A-125V)

$77.99

$

Usually ships in 3-6 days

0

18

Honda 36038-657-000

GROMMET B, TUBE

$9.99

$

Usually ships in 3-6 days

0

19

Honda 36043-657-000

SEE PART DETAILS - SUP; GROMMET, WIRE HARNESS

$

$

Currently unavailable

20

Honda 38201-846-601

FUSE (5A)

Note: Use from Frame SN 1004955.

$

$

Currently unavailable

21

Honda 87524-880-670

MARK, CAUTION

$

$

Currently unavailable

22

Honda 87528-880-670

MARK, OUTPUT

$

$

Currently unavailable

23

Honda 87534-880-000

SEE PART DETAILS - SUP; MARK, GROUND

$

$

Currently unavailable

24

Honda 87536-840-000

MARK B, D.C. OUTPUT

$

$

Currently unavailable

25

Honda 93500-05008-3J

SCREW, PAN (5X8)

$1.49

$

Usually ships in 3-6 days

0

26

Honda 93892-04012-08

SCREW-WASHER (4X12)

$0.99

$

Usually ships in 3-6 days

0

27

Honda 94001-04080-0S

NUT, HEX. (4MM)

$1.49

$

Usually ships in 3-6 days

0

28

Honda 94101-04800

WASHER, PLAIN (4MM)

$1.49

$

Usually ships in 3-6 days

0
