ES3500 A (ES3500) - Honda Generator, Made in Japan (SN: ES3500-1000032 - ES3500-1028641) MUFFLER Parts Diagram

Generator, Made in Japan

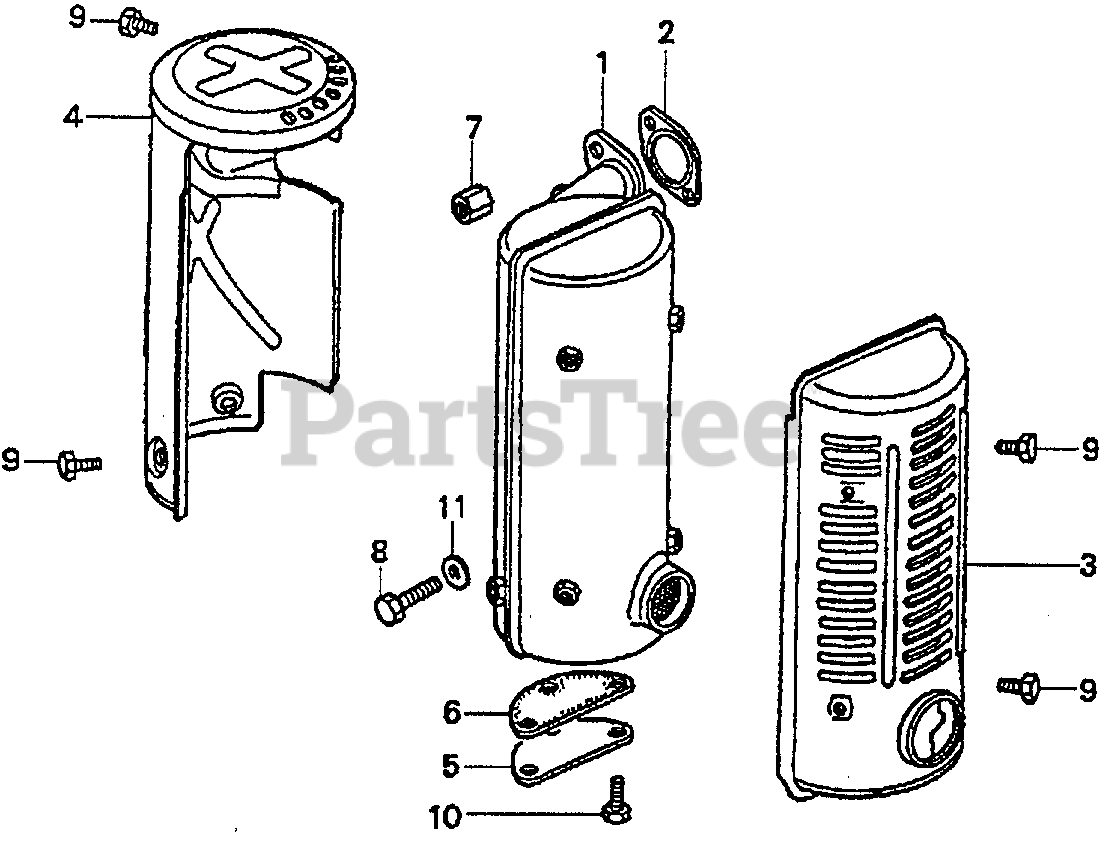

MUFFLER Parts Diagram

  • Title

1

Honda 18300-880-670

MUFFLER

Note: Use up to Engine SN 1018203.

$

$

Currently unavailable

1

Honda 18300-880-671

MUFFLER (NOT AVAILABLE)

Note: Use from Engine SN 1018204.

$

$

Currently unavailable

2

Honda 18351-809-000

GASKET, MUFFLER (NOT AVAILABLE)

$

$

Not available

3

Honda 18361-880-000

PROTECTOR, MUFFLER (NOT AVAILABLE)

$

$

Not available

4

Honda 18365-880-000

COVER, RR. MUFFLER

$

$

Not available

5

Honda 18371-865-670

LID, MUFFLER (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 18372-865-670

GASKET, MUFFLER (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 90381-703-000

NUT, HEX. (6MM) (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 92101-08018-0A

SEE PART DETAILS - PRI; BOLT, HEX. (8X18)

$2.49

$

Usually ships in 3-6 days

0

9

Honda 93101-06006-0B

BOLT, HEX. (6X6)

$

$

Not available

10

Honda 93101-06012-0B

BOLT, HEX. (6X12)

$2.49

$

Usually ships in 3-6 days

0

11

Honda 94101-08000

WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 20+

0
