ES3500 A (ES3500) - Honda Generator, Made in Japan (SN: ES3500-1000032 - ES3500-1028641) FLYWHEEL + POINTS Parts Diagram

Generator, Made in Japan

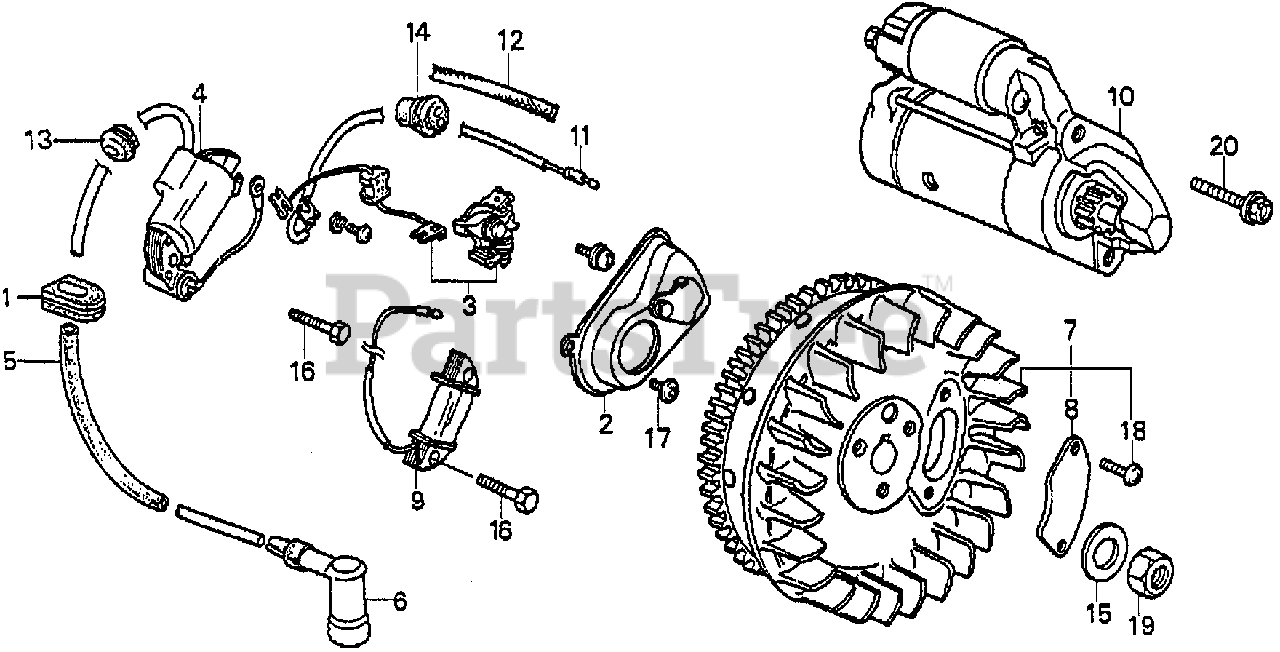

FLYWHEEL + POINTS Parts Diagram

  • Title

1

Honda 19905-ZA8-701

SEE PART DETAILS - PRI; GROMMET, WIRE

$4.99

$

Usually ships in 3-6 days

0

1

Honda 19905-865-000

SEE PART DETAILS - SUP; GROMMET, WIRE

$

$

Currently unavailable

2

Honda 30210-823-010

COVER, POINT

$

$

Not available

3

Honda 30280-829-020

POINTS ASSY.

$

$

Not available

4

Honda 30560-873-013

COIL, IGNITION (KOKUSAN)

$

$

Not available

5

Honda 30565-873-000

TUBE, IGNITION RUBBER (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 30700-098-158

SEE PART DETAILS - SUP; CAP ASSY., NOISE SUPPRESSOR

Note: Use up to Engine SN 1016152.

$

$

Not available

6

Honda 30700-098-163

SEE PART DETAILS - SUP; CAP ASSY., NOISE SUPPRESSOR

Note: Use up to Engine SN 1016152.

$

$

Not available

6

Honda 30700-865-013

CAP ASSY., NOISE SUPPRESSOR

Note: Use from Engine SN 1016153.

$

$

Not available

7

Honda 31120-874-760

MAGNETO, FLYWHEEL

$

$

Not available

8

Honda 31125-822-000

COVER, FLYWHEEL WINDOW (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 31160-874-760

COIL, CHARGING (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 31200-823-760

MOTOR ASSY., STARTER (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 31522-880-000

WIRE, ENGINE STOP

$

$

Not available

12

Honda 32155-874-790

TUBE, HEAT RESIST

$

$

Not available

13

Honda 32951-705-000

GROMMET, WIRE

$

$

Currently unavailable

14

Honda 32951-880-000

GROMMET, WIRE

$

$

Not available

15

Honda 90408-822-010

WASHER (14MM) (NOT AVAILABLE)

$

$

Currently unavailable

16

Honda 92101-06028-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X28)

$1.49

$

Usually ships in 3-6 days

0

17

Honda 93500-05006-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X6)

$1.49

$

Usually ships in 3-6 days

0

18

Honda 93500-05008-0A

SCREW, PAN (5X8)

$1.49

$

In Stock, Qty 8

0

19

Honda 94001-14000-0S

NUT, HEX. (14MM)

$2.99

$

Usually ships in 3-6 days

0

20

Honda 95701-08032-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X32)

$1.99

$

Usually ships in 3-6 days

0
