ES3500 A (ES3500) - Honda Generator, Made in Japan (SN: ES3500-1000032 - ES3500-1028641) CAMSHAFT + GOVERNOR ARM Parts Diagram

Generator, Made in Japan

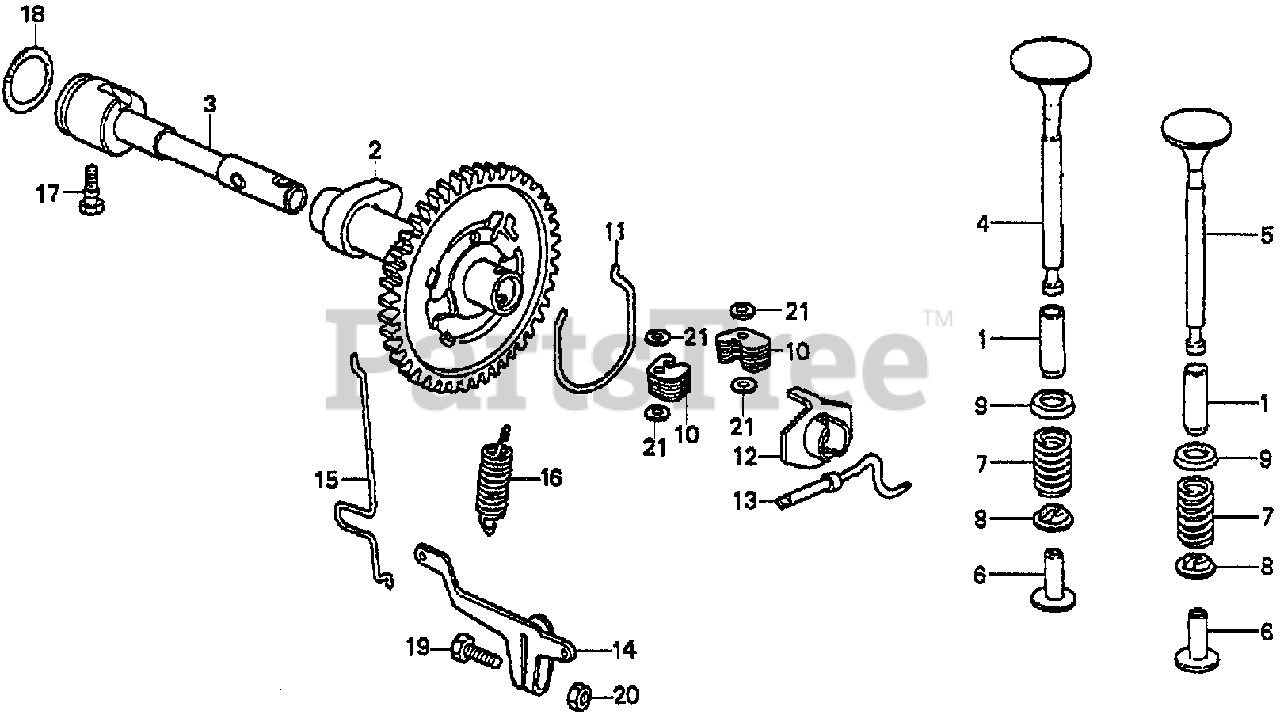

CAMSHAFT + GOVERNOR ARM Parts Diagram

  • Title

1

Honda 12236-874-305

GUIDE, VALVE (OS)

$

$

Not available

2

Honda 14101-873-000

CAMSHAFT

$

$

Currently unavailable

3

Honda 14210-823-010

CENTER, CAMSHAFT

$

$

Currently unavailable

4

Honda 14711-874-000

VALVE, IN.

$22.99

$

Usually ships in 3-6 days

0

5

Honda 14721-874-000

VALVE, EX. (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 14731-809-010

LIFTER, VALVE

$

$

Currently unavailable

7

Honda 14751-873-000

SPRING, VALVE (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 14771-883-305

RETAINER, VALVE SPRING

$13.99

$

Usually ships in 3-6 days

0

9

Honda 14775-809-000

SEAT, SPRING (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 16511-805-000

WEIGHT, GOVERNOR

$

$

Not available

11

Honda 16515-805-000

CENTER, GOVERNOR WEIGHT

$

$

Currently unavailable

12

Honda 16521-823-000

SLIDER, GOVERNOR

$

$

Not available

13

Honda 16535-823-000

SHAFT, GOVERNOR ARM (NOT AVAILABLE)

$8.99

$

Usually ships in 0 days

0

14

Honda 16541-809-030

ARM, GOVERNOR (NOT AVAILABLE)

$

$

Not available

15

Honda 16545-874-000

ROD, GOVERNOR (NOT AVAILABLE)

$

$

Not available

16

Honda 16551-806-000

SPRING, GOVERNOR (NOT AVAILABLE)

$

$

Not available

17

Honda 90008-809-000

BOLT, CAMSHAFT CENTER STOPPER

$

$

Not available

18

Honda 91318-PA9-003

O-RING (23.5X2.1) (ARAI)

$4.99

$

Usually ships in 3-6 days

0

19

Honda 92101-06016-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X16)

$1.99

$

In Stock, Qty 20+

0

20

Honda 94001-06000-0S

SEE PART DETAILS - SUP; NUT, HEX. (6MM)
(Superseded to 94001-06200-0S)

$1.99

$

In Stock, Qty 20+

0

20

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 20+

0

21

Honda 94101-03000

WASHER, PLAIN (3MM)

$0.99

$

Usually ships in 3-6 days

0
