ES12-5-36086 - Tecumseh Starter Electric Starter Parts Diagram

Starter

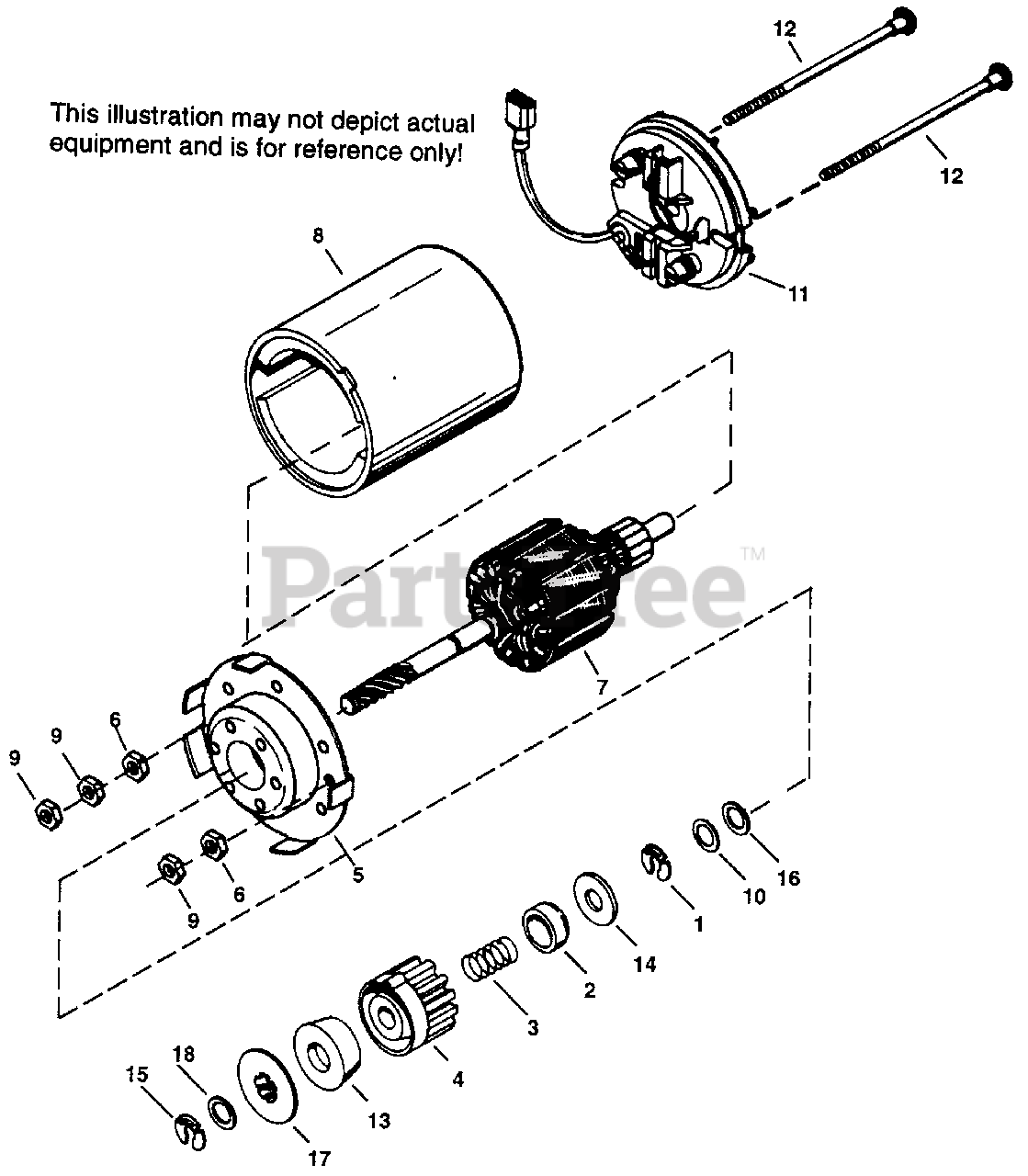

Electric Starter Parts Diagram

  • Title

Tecumseh 36086

"Electric Starter (12 Volt)

$

$

Not available

1

Tecumseh 34955

Retainer Ring

$1.99

$

In Stock, only 2 left!

0

2

Tecumseh 34950

Spring Retainer

$3.99

$

In Stock, only 1 left!

0

3

Tecumseh 34954

Spring
(Superseded to 590654)

$3.99

$

In Stock, only 1 left!

0

4

Tecumseh 34949A

Gear

$24.99

$

Usually ships in 3-12 days

0

5

Tecumseh 36202

Drive End Cap Ass'y.

$

$

Not available

6

Tecumseh 33450

Lock Nut
(Superseded to 651016)

$1.99

$

In Stock, Qty 5

0

7

Tecumseh 34944

Armature
(Superseded to 37753)

$143.99

$

Usually ships in 3-12 days

0

8

Tecumseh 34945

Housing Ass'y.

$44.99

$

In Stock, only 1 left!

0

10

Tecumseh 590500

Thrust Washer

$1.99

$

In Stock, only 1 left!

0

11

Tecumseh 36203

Commutator End Cap Ass'y. Incl. brush es

$43.99

$

Usually ships in 3-12 days

0

12

Tecumseh 36204

Bolt, 10-32 x 3-19/32"

$

$

Not available

13

Tecumseh 34946

Pinion Driver

$5.49

$

In Stock, Qty 5

0

14

Tecumseh 34951

Cup Washer

$

$

Not available

15

Tecumseh 34952

Retainer Ring

$3.99

$

In Stock, only 3 left!

0

16

Tecumseh 34948

Washer

$1.99

$

Usually ships in 3-12 days

0

17

Tecumseh 34953

Drive Nut

$16.99

$

In Stock, only 1 left!

0

18

Tecumseh 590608

Dust Washer

$1.99

$

In Stock, only 2 left!

0
