ES12-4-35763 - Tecumseh Starter Electric Starter Parts Diagram

Starter

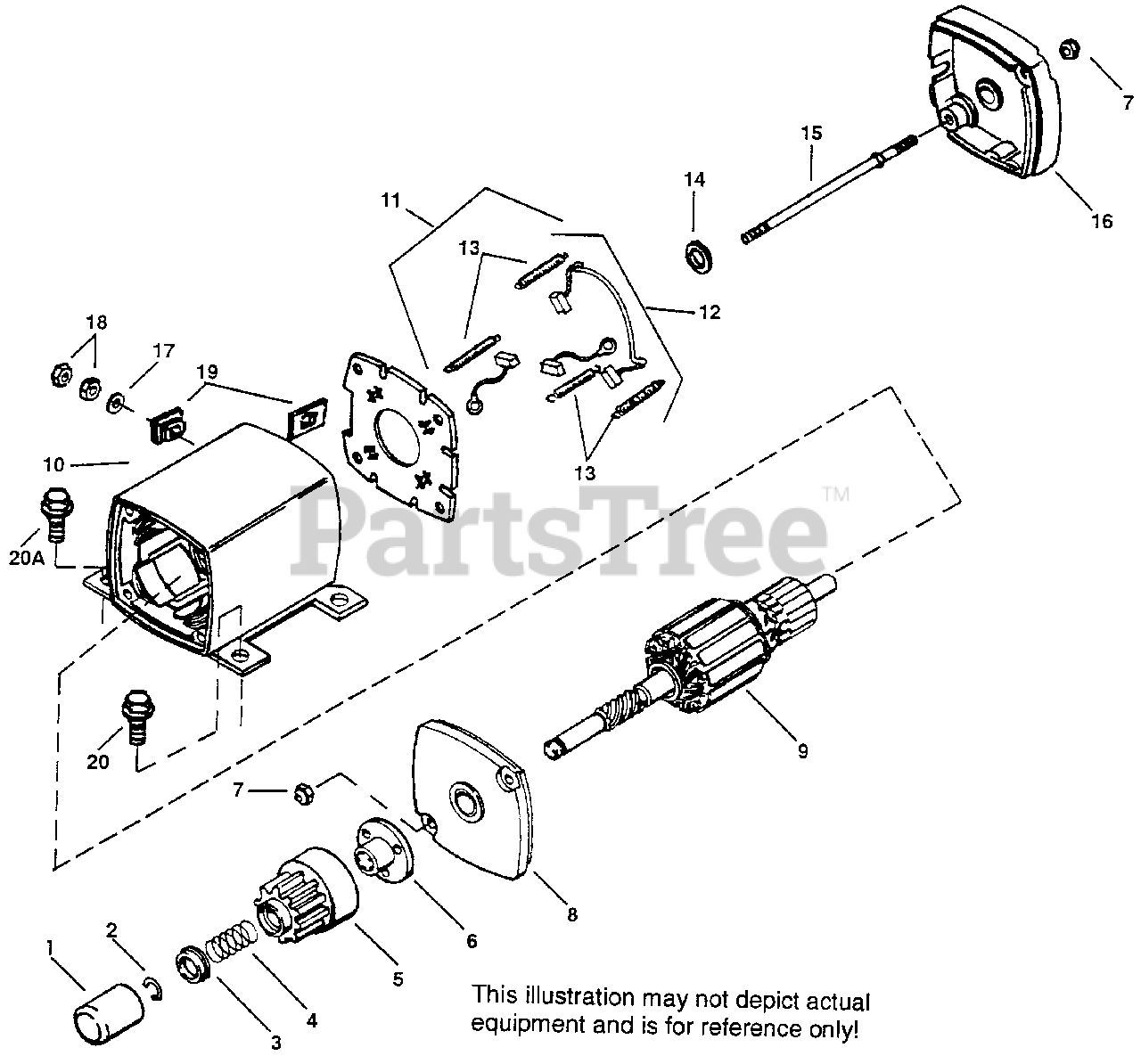

Electric Starter Parts Diagram

  • Title

Tecumseh 35763

"Electric Starter (12 Volt)
(Superseded to 36680)

$249.99

$

Usually ships in 3-12 days

0

1

Tecumseh 33451

Dust Cover

$3.49

$

In Stock, only 4 left!

0

2

Tecumseh 33842

Retainer Ring

$3.99

$

In Stock, Qty 5

0

3

Tecumseh 33430

Spring Retainer
(Superseded to 33843)

$7.99

$

In Stock, only 1 left!

0

4

Tecumseh 33431

Anti-drift Spring

$3.99

$

Usually ships in 3-12 days

0

5

Tecumseh 33432

Gear

$40.99

$

Usually ships in 3-12 days

0

6

Tecumseh 33433A

Nut & Retainer (Incl. 2)

$19.99

$

Usually ships in 3-12 days

0

7

Tecumseh 33450

Lock Nut
(Superseded to 651016)

$1.99

$

In Stock, Qty 5

0

8

Tecumseh 33434

Drive End Cap Ass'y.

$37.99

$

Usually ships in 3-12 days

0

9

Tecumseh 33703

Armature

$

$

Not available

10

Tecumseh 33759

Housing Ass'y.
(Superseded to 36680)

$249.99

$

Usually ships in 3-12 days

0

11

Tecumseh 33712

Brush Card Ass'y. (Incl. 12)

$71.99

$

Usually ships in 3-12 days

0

12

Tecumseh 33705

Brush & Spring Kit (Incl. (4) of 13)
(Superseded to 33849)

$61.99

$

In Stock, only 1 left!

0

13

Tecumseh 33440

Brush Spring

$3.99

$

Usually ships in 3-12 days

0

14

Tecumseh 590500

Thrust Washer

$1.99

$

In Stock, only 1 left!

0

15

Tecumseh 33449

Bolt, 10-32 x 4-1/4"

$5.99

$

Usually ships in 3-12 days

0

16

Tecumseh 35766

Commutator End Cap Ass'y.

$34.99

$

Usually ships in 3-12 days

0

17

Tecumseh 650168

Washer

$1.99

$

Usually ships in 3-12 days

0

18

Tecumseh 650864

Nut

$1.99

$

In Stock, only 2 left!

0

19

Tecumseh 34685

Terminal Insulaator

$3.99

$

In Stock, only 1 left!

0
