ES12-2-34766 - Tecumseh Starter Electric Starter Parts Diagram

Starter

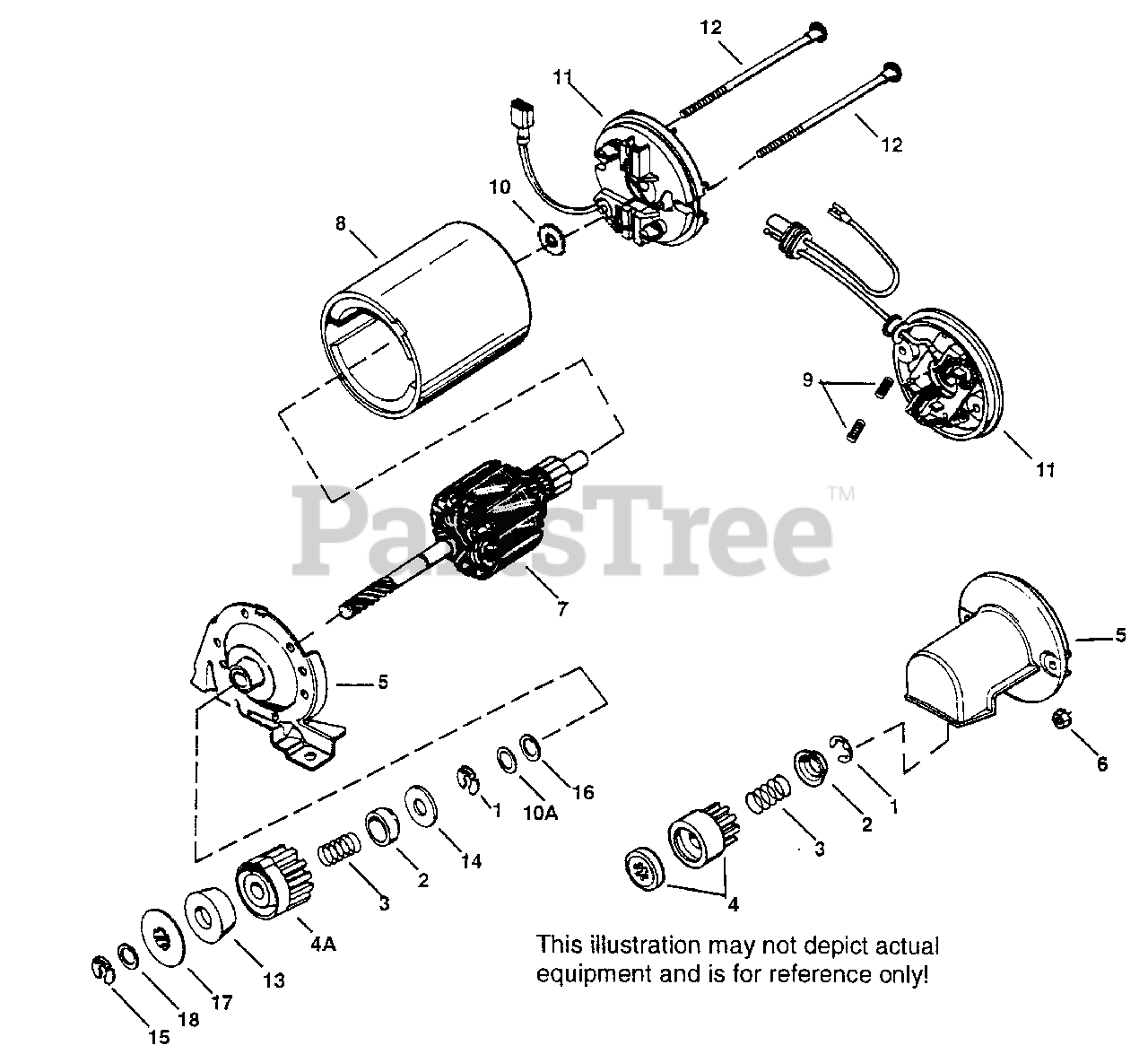

Electric Starter Parts Diagram

  • Title

Tecumseh 34766

"Electric Starter (12 Volt)

$

$

Currently unavailable

1

Tecumseh 32738

Retainer Ring
(Superseded to 31749)

$1.99

$

Usually ships in 3-12 days

0

2

Tecumseh 33522

Spring Retainer

$5.99

$

Usually ships in 3-12 days

0

3

Tecumseh 33523

Anti-drift Spring

$

$

Not available

4

Tecumseh 33524

Gear
(Superseded to 37332)

$56.99

$

Usually ships in 3-12 days

0

5

Tecumseh 33613

Drive End Cap Ass'y.

$

$

Currently unavailable

6

Tecumseh 33450

Lock Nut
(Superseded to 651016)

$1.99

$

In Stock, Qty 5

0

7

Tecumseh 33611

Armature

$

$

Currently unavailable

8

Tecumseh 34495

Housing Ass'y.

$

$

Currently unavailable

9

Tecumseh 33609

Brush Spring

$

$

Currently unavailable

10

Tecumseh 590500

Thrust Washer

$1.99

$

In Stock, only 1 left!

0

11B

Tecumseh 34807

Commutator End Cap Ass'y. (Incl. (2)o f 9)

$

$

Currently unavailable

12

Tecumseh 33610

Bolt, 10-32 x 3-1/4"

$

$

Currently unavailable
