ES12-1-37425 - Tecumseh Starter Electric Starter Parts Diagram

Starter

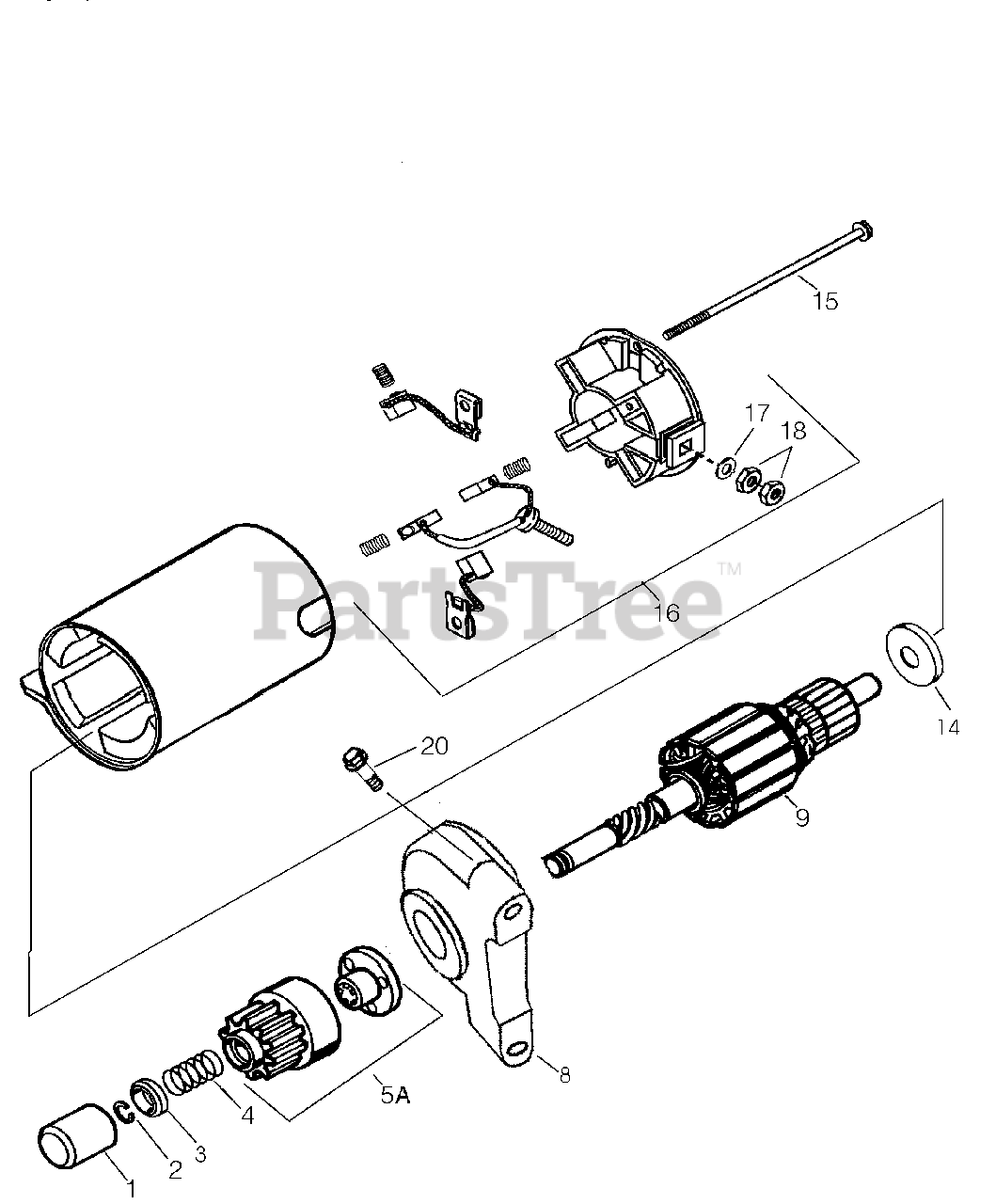

Electric Starter Parts Diagram

  • Title

Tecumseh 37425

"Electric Starter Motor (12 Volt)

$271.99

$

Usually ships in 3-12 days

0

1

Tecumseh 33841

Dust Cover

$3.49

$

Usually ships in 3-12 days

0

2

Tecumseh 33842

Retainer Ring

$3.99

$

In Stock, Qty 5

0

3

Tecumseh 33843

Spring Retainer

$7.99

$

In Stock, only 1 left!

0

4

Tecumseh 33854

Anti-drift Spring

$

$

Not available

5A

Tecumseh 36853

Gear & Nut (Incl. 2)

$108.99

$

In Stock, Qty 8

0

8

Tecumseh 37440

Drive End Cap Assembly

$54.99

$

In Stock, only 1 left!

0

9

Tecumseh 37441

Armature
(Superseded to 37425)

$271.99

$

Usually ships in 3-12 days

0

14

Tecumseh 35897

Thrust Washer

$3.99

$

Usually ships in 3-12 days

0

15

Tecumseh 36856

Case Bolt

$5.99

$

Usually ships in 3-12 days

0

16

Tecumseh 37442

End Cap & Brush Card Ass'y Incl. 14,1 7 & 18

$61.99

$

Usually ships in 3-12 days

0

17

Tecumseh 650168

Washer

$1.99

$

Usually ships in 3-12 days

0

18

Tecumseh 650864

Nut

$1.99

$

In Stock, only 2 left!

0

20

Tecumseh 651071

Screw, 1/4-20 x 1-13/32

$3.99

$

Usually ships in 3-12 days

0
