ES12-1-36680 - Tecumseh Starter Electric Starter Parts Diagram

Starter

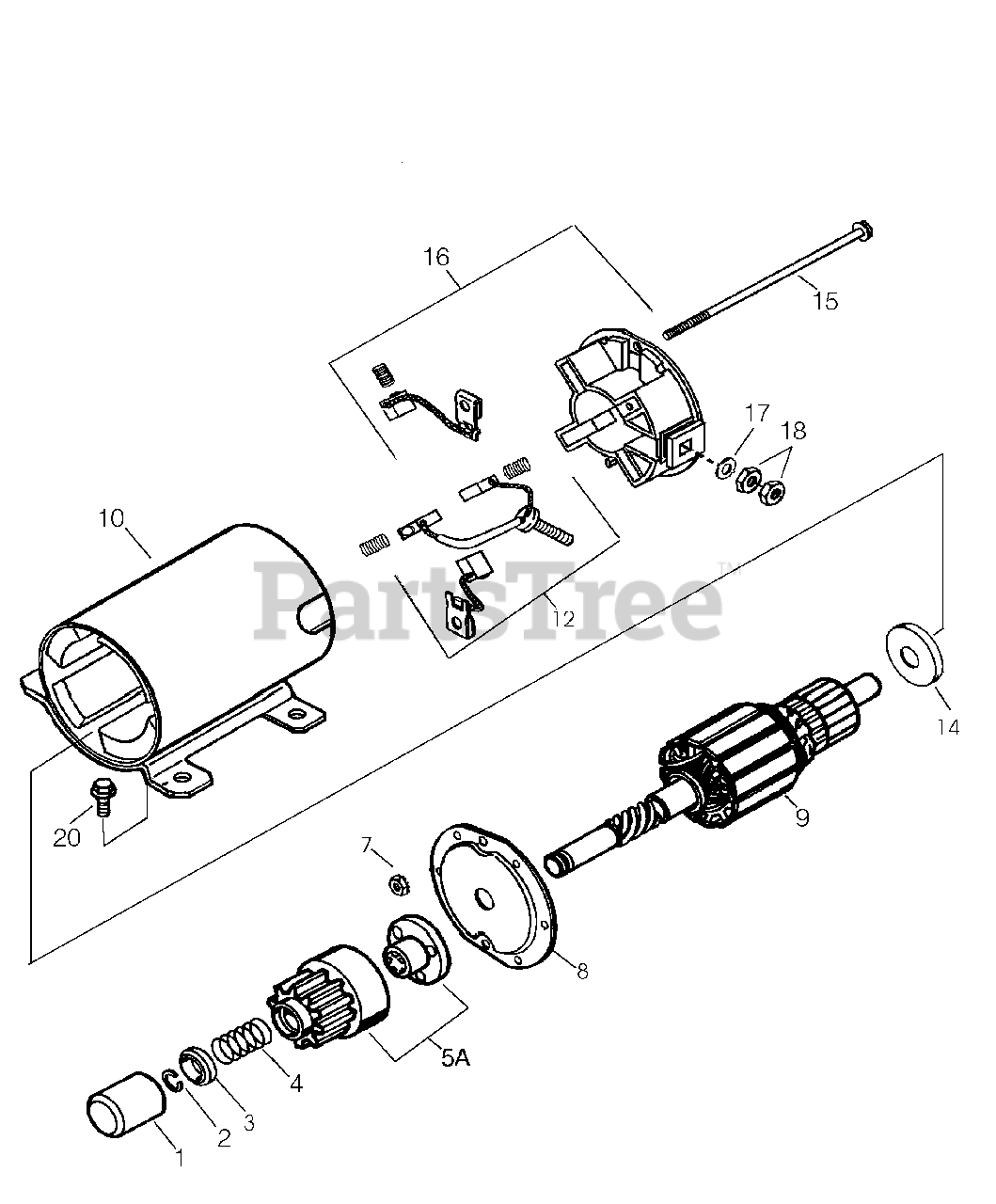

Electric Starter Parts Diagram

  • Title

Tecumseh 36680

"Electric Starter (12 Volt)

$249.99

$

Usually ships in 3-12 days

0

1

Tecumseh 33451

Dust Cover

$3.49

$

In Stock, only 4 left!

0

2

Tecumseh 33842

Retainer Ring

$3.99

$

In Stock, Qty 5

0

3

Tecumseh 33430

Spring Retainer
(Superseded to 33843)

$7.99

$

In Stock, only 1 left!

0

4

Tecumseh 33854

Anti-drift Spring

$

$

Not available

5A

Tecumseh 37050

Gear & Nut (Incl. 2)

$47.99

$

In Stock, only 3 left!

0

7

Tecumseh 33450

Lock Nut
(Superseded to 651016)

$1.99

$

In Stock, Qty 5

0

8

Tecumseh 35894

Drive End Cap Ass'y.

$21.99

$

Usually ships in 3-12 days

0

9

Tecumseh 35895

Armature

$100.99

$

Usually ships in 3-12 days

0

10

Tecumseh 36699

Housing Ass'y.
(Superseded to 36680)

$249.99

$

Usually ships in 3-12 days

0

12

Tecumseh 35896

Brush & Spring Kit
(Superseded to 37442)

$61.99

$

Usually ships in 3-12 days

0

14

Tecumseh 35897

Thrust Washer

$3.99

$

Usually ships in 3-12 days

0

15

Tecumseh 35898

Bolt, 10-32 X 4-11/64"

$3.99

$

Usually ships in 3-12 days

0

16

Tecumseh 35899

End Cap & Brush Card Ass'y. Incl. 12, 14,17,18
(Superseded to 37442)

$61.99

$

Usually ships in 3-12 days

0

17

Tecumseh 650168

Washer

$1.99

$

Usually ships in 3-12 days

0

18

Tecumseh 650864

Nut

$1.99

$

In Stock, only 2 left!

0

20

Tecumseh 650990

Screw, Torx T-30, 1/4-20 x 15/32"

$3.99

$

In Stock, only 4 left!

0
