ES110-5-590653 - Tecumseh Starter Electric Starter Parts Diagram

Starter

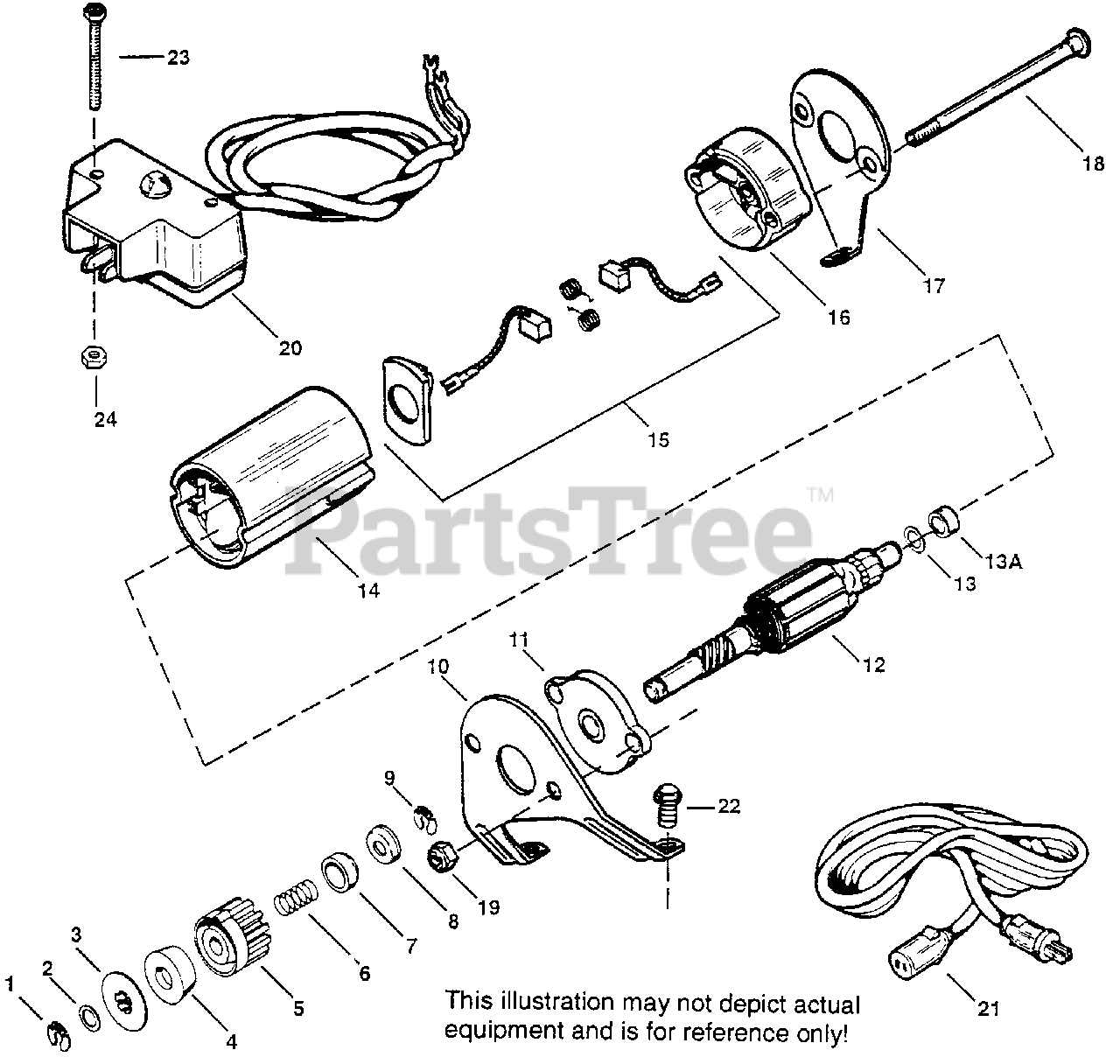

Electric Starter Parts Diagram

  • Title

Tecumseh 590653

"Electric Starter (110 Volt)
(Superseded to 590670)

$226.99

$

In Stock, only 2 left!

0

1

Tecumseh 34952

Retainer Ring

$3.99

$

In Stock, only 3 left!

0

2

Tecumseh 590608

Dust Washer

$1.99

$

In Stock, only 2 left!

0

3

Tecumseh 34953

Pinion Driver

$16.99

$

In Stock, only 2 left!

0

4

Tecumseh 590644

Anti-drift Spring

$10.99

$

In Stock, only 1 left!

0

5

Tecumseh 34949A

Gear

$24.99

$

Usually ships in 3-12 days

0

6

Tecumseh 590654

Anti-drift Spring

$3.99

$

In Stock, only 1 left!

0

7

Tecumseh 34950

Spring Retainer

$3.99

$

In Stock, only 1 left!

0

8

Tecumseh 34951

Cup Washer

$

$

Not available

9

Tecumseh 34955

Retainer Ring

$1.99

$

In Stock, only 2 left!

0

21

Tecumseh 32450B

Extension Cord (10'6")

$

$

Not available

22

Tecumseh 30063

Screw, T-30, 1/4-20 x 1/2"

$1.99

$

In Stock, Qty 20+

0

23

Tecumseh 650819

Screw, 6-32 x 2-1/2"

$1.99

$

Usually ships in 3-12 days

0

24

Tecumseh 650742

Nut & Washer Ass'y.

$1.99

$

In Stock, only 2 left!

0
