ES110-1-37000 - Tecumseh Starter Electric Starter Parts Diagram

Starter

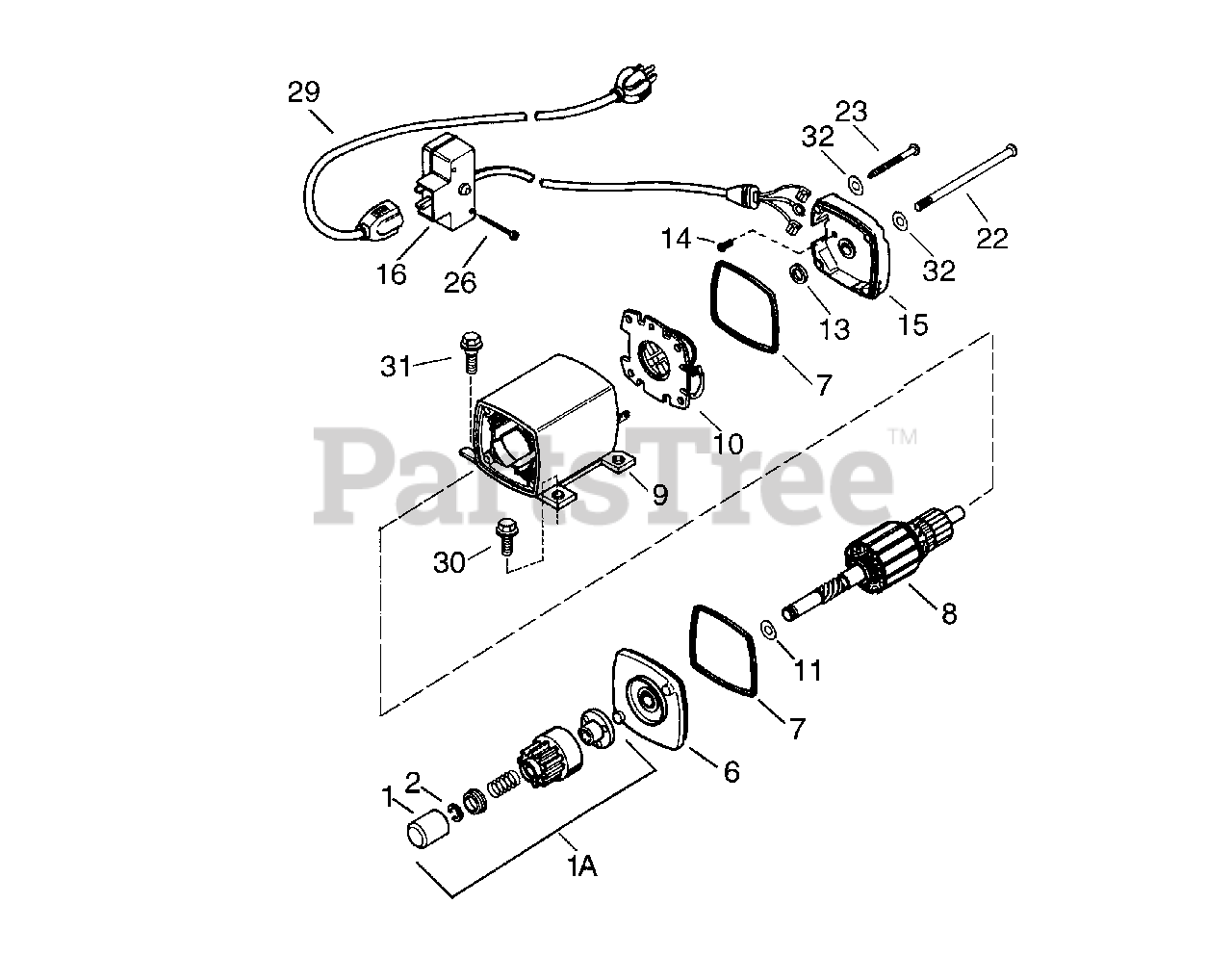

Electric Starter Parts Diagram

  • Title

Tecumseh 37000

"Electric Starter Motor (Optional)
(Superseded to 33329E)

$

$

Not available

1A

Tecumseh 37052A

Drive Kit (Incl. 1 & 2)

$47.99

$

In Stock, only 3 left!

0

1

Tecumseh 37051

Dust Cover Fits Starters built throug h June 2005

$

$

Not available

1

Tecumseh 37956

Dust Cover Fits Starters built AFTER June 2005
(Superseded to 33451)

$3.49

$

In Stock, Qty 5

0

2

Tecumseh 37053

Retainer Ring
(Superseded to 33842)

$3.99

$

In Stock, Qty 5

0

6

Tecumseh 37054

Drive End Cap Ass'y (Incl. 7)

$27.99

$

Usually ships in 3-12 days

0

7

Tecumseh 37792

"O" Ring

$4.49

$

Usually ships in 3-12 days

0

8

Tecumseh 37056

Armature
(Superseded to 35915)

$

$

Not available

9

Tecumseh 37057

Housing Assembly
(Superseded to 33329F)

$

$

Not available

10

Tecumseh 37058

Brush Card Assembly
(Superseded to 35452A)

$58.99

$

In Stock, only 1 left!

0

13

Tecumseh 37060

Thrust Washer

$1.99

$

In Stock, only 1 left!

0

14

Tecumseh 37061

Ground Screw

$

$

Not available

15

Tecumseh 37062

Commutator End Cap Ass'y (Incl. 7)
(Superseded to 35453)

$41.99

$

Usually ships in 3-12 days

0

16

Tecumseh 37063

Switch Box
(Superseded to 35454)

$

$

Not available

22

Tecumseh 37064

Case Bolt

$1.99

$

Usually ships in 3-12 days

0

23

Tecumseh 37065

Ground Screw

$

$

Not available

26

Tecumseh 650819

Screw, 6-32 X 2-1/2" Use with 2" thic k switch box

$1.99

$

Usually ships in 3-12 days

0

26

Tecumseh 651032

Screw, 12-16 x 5/8"

$1.99

$

In Stock, only 1 left!

0

26

Tecumseh 651058

Screw, 6-20 x 2" Use with 1-9/16" thi ck switc h box

$

$

Not available

29

Tecumseh 32450B

Extension Cord (10'6")

$

$

Not available

30

Tecumseh 30063

Screw, T-30, 1/4-20 x 1/2"

$1.99

$

In Stock, Qty 20+

0

31

Tecumseh 650820

Screw, 1/4-20 x 1/2" (Upper Mounting Screws for 120-Volt Electric Starter Motor)

$3.99

$

In Stock, Qty 15

0

32

Tecumseh 37066

Washer (NOTE: All three (3) 37066 w ashers must be replaced each time in ternal parts are serviced.)

$1.99

$

In Stock, Qty 7

0
