ES110-1-33328C - Tecumseh Starter Electric Starter Parts Diagram

Starter

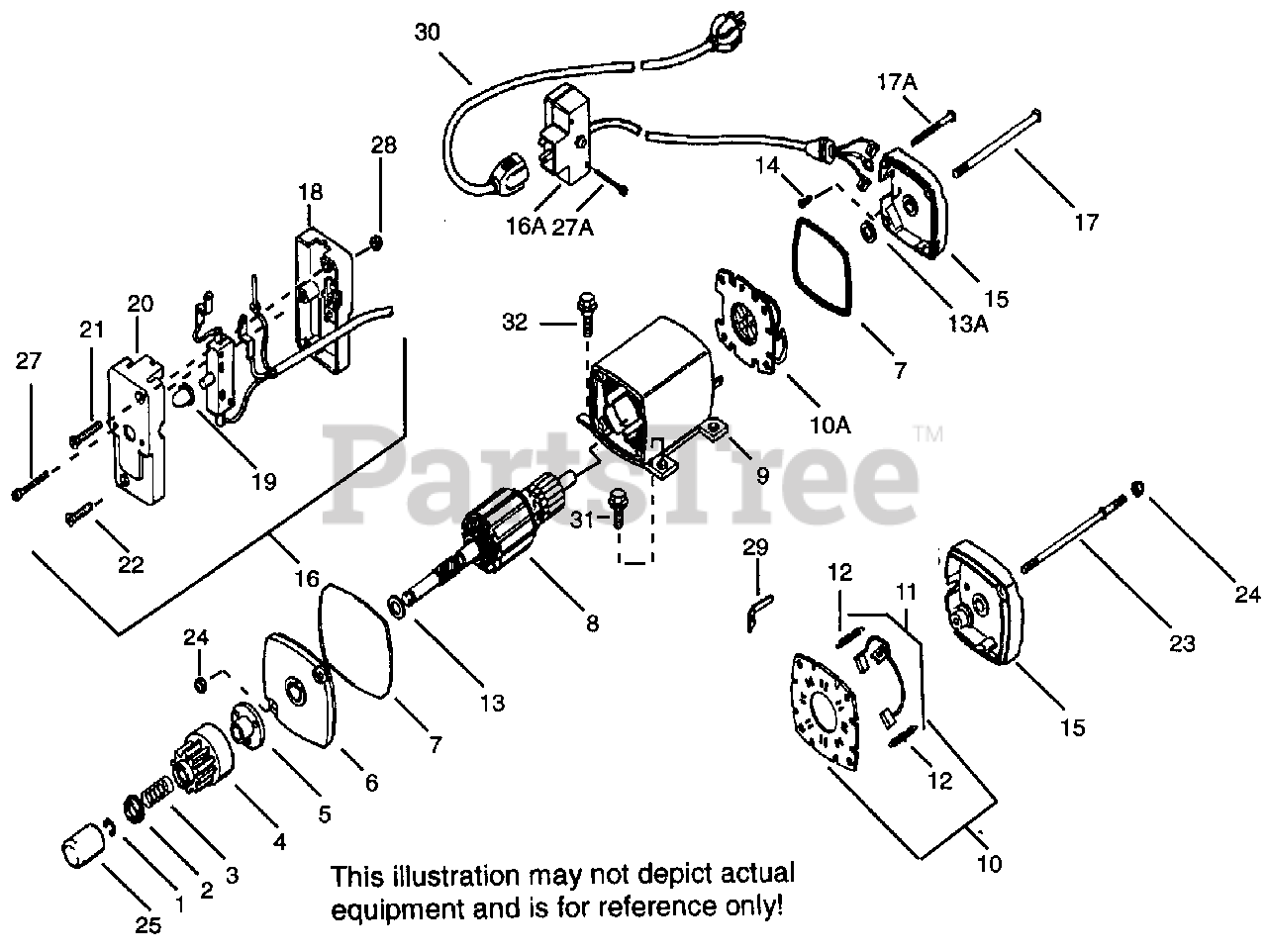

Electric Starter Parts Diagram

  • Title

Tecumseh 33328C

"Electric Starter (110 Volt)
(Superseded to 33328D)

$249.48

$

Usually ships in 3-12 days

0

1

Tecumseh 33842

Retainer Ring

$3.99

$

In Stock, Qty 5

0

2

Tecumseh 33430

Spring Retainer
(Superseded to 33843)

$7.99

$

In Stock, only 1 left!

0

3

Tecumseh 33431

Anti-drift Spring

$3.99

$

Usually ships in 3-12 days

0

4

Tecumseh 33432

Gear

$40.99

$

Usually ships in 3-12 days

0

5

Tecumseh 33433A

Retainer & Nut (Incl. 1)

$19.99

$

Usually ships in 3-12 days

0

6

Tecumseh 35449

Drive End Cap Ass'y. (Incl. 7)

$36.99

$

Usually ships in 3-12 days

0

7

Tecumseh 35450

"O" Ring

$3.99

$

Usually ships in 3-12 days

0

8

Tecumseh 33436A

Armature
(Superseded to 33328D)

$249.48

$

Usually ships in 3-12 days

0

9

Tecumseh 35457

Housing Ass'y.
(Superseded to 35457A)

$

$

Not available

10A

Tecumseh 35452

Brush Card Ass'y.
(Superseded to 35452A)

$58.99

$

In Stock, only 1 left!

0

13A

Tecumseh 590500

Thrust Washer

$1.99

$

In Stock, only 1 left!

0

14

Tecumseh 33441

Ground Screw

$

$

Not available

15

Tecumseh 35453

Commutator End Cap Ass'y. (Incl. 7)

$41.99

$

Usually ships in 3-12 days

0

16A

Tecumseh 35454

Switch Box Ass'y. (Incl. 27A)

$

$

Not available

17A

Tecumseh 35456

Grounding Screw

$1.99

$

In Stock, only 3 left!

0

17

Tecumseh 35458

Case Bolt

$

$

Not available

25

Tecumseh 33451

Dust Cover

$3.49

$

In Stock, only 4 left!

0

27A

Tecumseh 650819

Screw, 6-32 X 2-1/2"

$1.99

$

Usually ships in 3-12 days

0

30

Tecumseh 32450B

Extension Cord (10'6")

$

$

Not available

31

Tecumseh 30063

Screw, T-30, 1/4-20 x 1/2"

$1.99

$

In Stock, Qty 20+

0
