ES1000x92 - Murray Electric Scooter (2001) Rear Wheel & Brake Assembly Parts Diagram

Electric Scooter

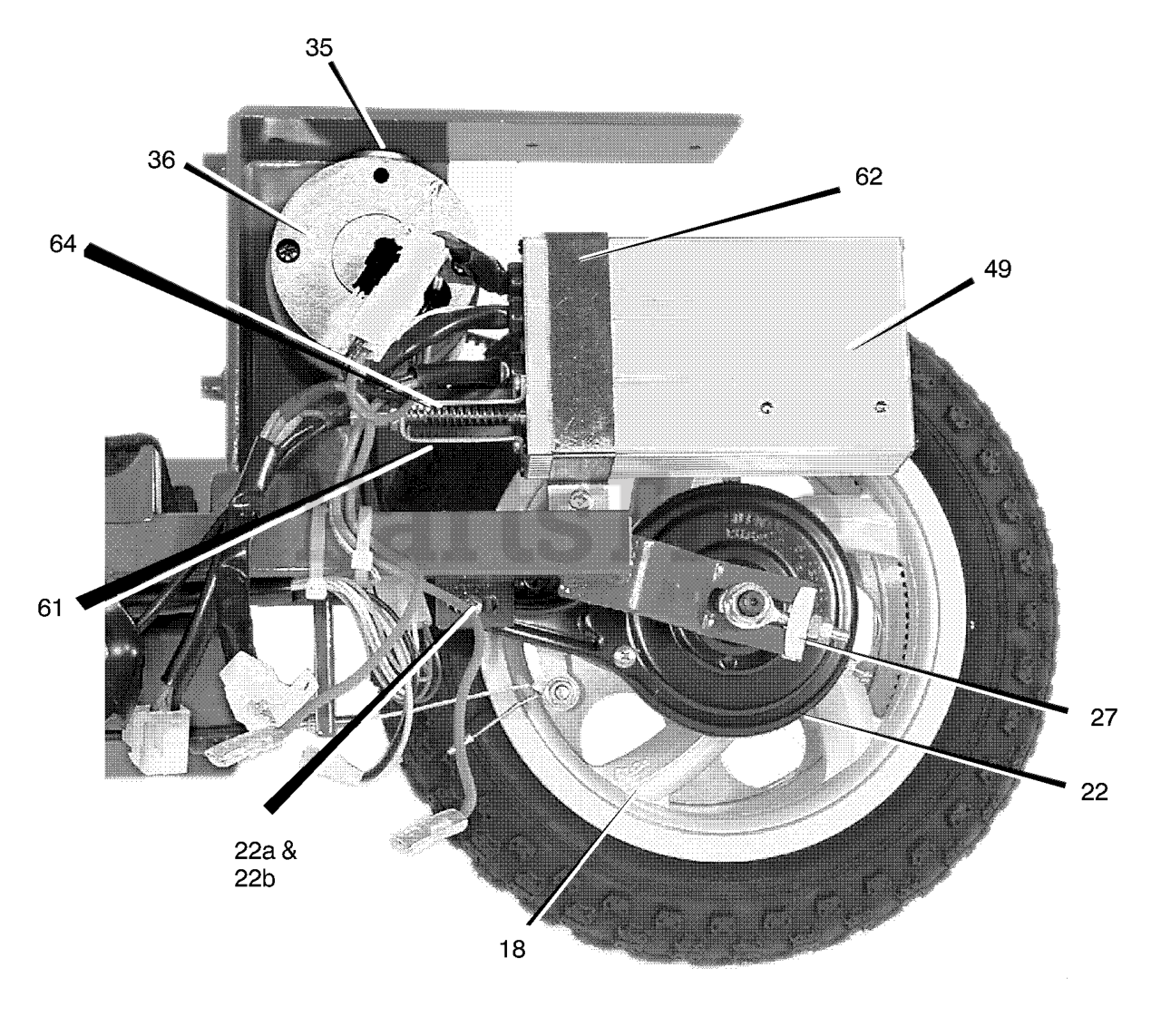

Rear Wheel & Brake Assembly Parts Diagram

  • Title

18

Murray 7201023

Wheel Assembly, Rear

Note: (Incl'ds Spacers, Washers & Axle Nuts)

$

$

Currently unavailable

--

Murray 7201135

Spacer, R. Wheel-Left (1 req'd)

$

$

Currently unavailable

--

Murray 7201134

Spacer, R. Wheel-Right (1 req'd)

$

$

Currently unavailable

--

Murray 7201099

Washer (2 required)

$1.99

$

Usually ships in 2-12 days

0

--

Murray 046750

Nut, Axle (2 required)

$

$

Currently unavailable

--

Murray 7201025

Tire (Only)

$14.99

$

Usually ships in 2-12 days

0

--

Murray 7201024

Tube, Rear (Only)

$17.99

$

Usually ships in 2-12 days

0

--

Cap, Valve Stem

Note: (Acquire locally)

$

$

Not available

22

Murray 7201028

Brake Assembly

Note: (Incl'ds Housing, Band, Drum & Brake Arm and Cable Anchor Screw & Nut)

$34.99

$

Usually ships in 2-12 days

0

22A

Murray 7201114

Screw, Brake Assembly Mounting (1 required)

$1.99

$

Usually ships in 2-12 days

0

22B

Murray 7201091

Nut, Brake Assembly Mounting (1 required)

$1.99

$

Usually ships in 2-12 days

0

27

Murray 7201034

Adjuster Ass'y., Rear Wheel

Note: (Includes hardware)

$2.49

$

Usually ships in 2-12 days

0

--

Murray 7201117

Nut (1 required)

$1.99

$

Usually ships in 2-12 days

0

35

Murray 7201044

Brush, Motor (2 required)

$27.99

$

Usually ships in 2-12 days

0

36

Murray 7201045

Motor, Drive (DC)

$

$

Currently unavailable

--

Murray 7201110

Screw, Hex Head

Note: (2 required)

$1.99

$

Usually ships in 2-12 days

0

--

Murray 7201103

Washer, Spring (2 required)

$1.99

$

Usually ships in 2-12 days

0

--

Murray 7201102

Washer (2 required)

$1.99

$

Usually ships in 2-12 days

0

49

Murray 7201061

Controller, Microcomputer

$499.99

$

Usually ships in 2-12 days

0

61

Murray 7201074

Bracket, Throttle Cable Mount

$3.49

$

Usually ships in 2-12 days

0

--

Murray 7201093

Screw (2 required)

$1.99

$

Usually ships in 2-12 days

0

62

Murray 7201075

Bracket, Controller Mount

$5.49

$

Usually ships in 2-12 days

0

--

Murray 7201121

Screw (2 required)

$1.99

$

Usually ships in 2-12 days

0

--

Murray 7201103

Washer, Spring (2 required)

$1.99

$

Usually ships in 2-12 days

0

--

Murray 7201102

Washer (1 required)

$1.99

$

Usually ships in 2-12 days

0

64

Murray 7201077

Spring, Throttle Control

$1.99

$

Usually ships in 2-12 days

0
