ES1000x92 - Murray Electric Scooter (2001) Onboard Charging System Parts Diagram

Electric Scooter

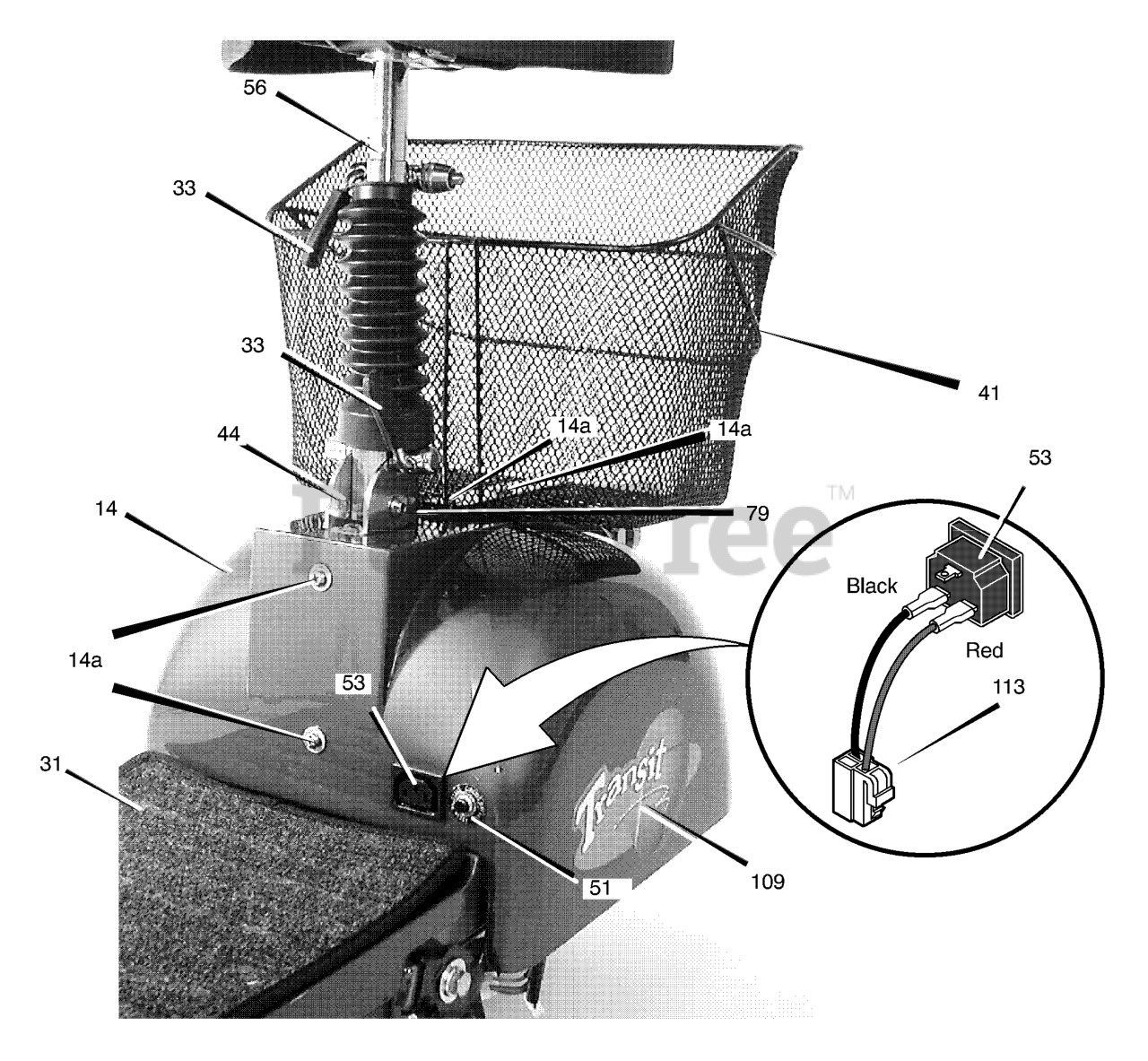

Onboard Charging System Parts Diagram

  • Title

14

Murray 7201018

Cover, Rear Wheel-with Decals

$61.99

$

Usually ships in 2-12 days

0

14A

Murray 7201106

Screw (4 required)

$1.99

$

Usually ships in 2-12 days

0

--

Murray 7201096

Washer (4 required)

$1.99

$

Usually ships in 2-12 days

0

31

Murray 7201039

Floormat

$19.99

$

Usually ships in 2-12 days

0

--

Murray 7201097

Screw (2 required)

$1.99

$

Usually ships in 2-12 days

0

--

Murray 7201096

Washer (2 required)

$1.99

$

Usually ships in 2-12 days

0

33

Murray 7201041

Lever Ass'y., Quick Release

$7.49

$

Usually ships in 2-12 days

0

--

Murray 7201080

Spring, Compression-Quick Release Lever (in base of seat mounting post)

$1.99

$

Usually ships in 2-12 days

0

41

Murray 7201050

Basket-Black

$23.99

$

Usually ships in 2-12 days

0

44

Murray 7201055

Bracket, Seatpost Mounting

$

$

Currently unavailable

--

Murray 7201101

Screw (2 required)

$1.99

$

Usually ships in 2-12 days

0

--

Murray 7201100

Washer, Spring (2 required)

$1.99

$

Usually ships in 2-12 days

0

51

Murray 7201063

Circuit Breaker (20A)

$12.99

$

Usually ships in 2-12 days

0

--

Murray 7201128

Nut, Retainer

$

$

Currently unavailable

--

Murray 7201129

Washer, Instructional Cover

$

$

Currently unavailable

53

Murray 7201065

Plug-in, Onboard Charging (requires gluing to Cover)

$8.49

$

Usually ships in 2-12 days

0

56

Murray 7201069

Seat Support Ass'y-Telescoping

$34.99

$

Usually ships in 2-12 days

0

79

Murray 7201094

Screw, Pivot

$1.99

$

Usually ships in 2-12 days

0

109

Murray 48X656

Decal, Transit

$

$

Currently unavailable

113

Murray 7201125

Harness, Wire-Onboard Charger Plug

$

$

Currently unavailable
