ES1000x92 - Murray Electric Scooter (2001) Electrical System Parts Diagram

Electric Scooter

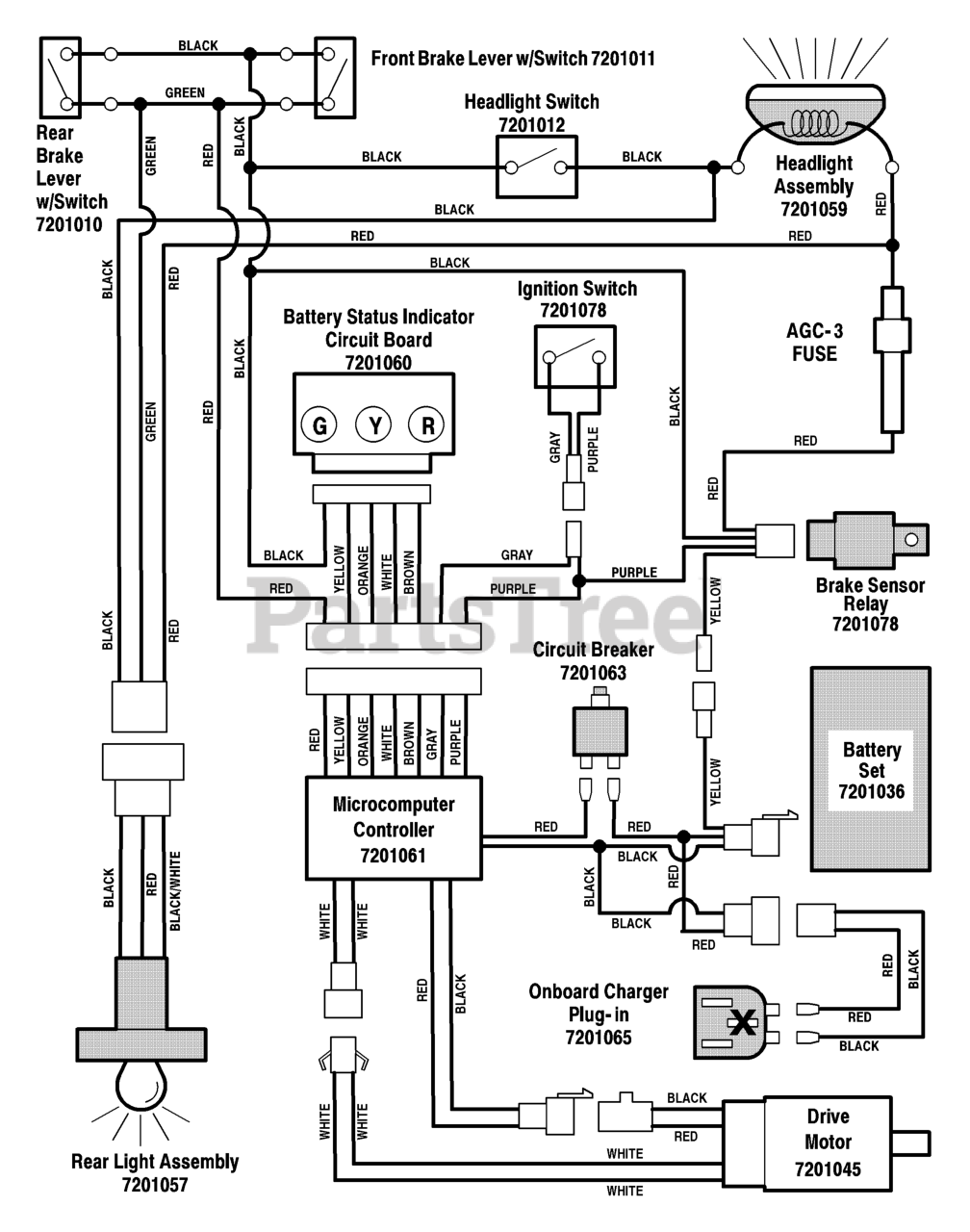

Electrical System Parts Diagram

  • Title

7201011

Murray 7201011

Front Brake Lever w/Switch

$17.99

$

Usually ships in 2-12 days

0

7201012

Murray 7201012

Headlight Switch

$2.49

$

Usually ships in 2-12 days

0

7201010

Murray 7201010

Rear Brake Lever w/Switch

$17.99

$

Usually ships in 2-12 days

0

7201059

Murray 7201059

Headlight Assembly

$19.99

$

Usually ships in 2-12 days

0

7201060

Murray 7201060

Battery Status Indicator Circuit Board

$17.99

$

Usually ships in 2-12 days

0

7201078

Murray 7201078

Ignition Switch

$12.99

$

Usually ships in 2-12 days

0

7201063

Murray 7201063

Circuit Breaker

$12.99

$

Usually ships in 2-12 days

0

7201061

Murray 7201061

Microcomputer Controller

$499.99

$

Usually ships in 2-12 days

0

7201078

Murray 7201078

Brake Sensor Relay

$12.99

$

Usually ships in 2-12 days

0

7201036

Murray 7201036

Battery Set

$

$

Currently unavailable

7201065

Murray 7201065

Onboard Charger Plug-in

$8.49

$

Usually ships in 2-12 days

0

7201057

Murray 7201057

Rear Light Assembly

$

$

Currently unavailable

7201045

Murray 7201045

Drive Motor

$

$

Currently unavailable
