ES1000x92 - Murray Electric Scooter (2001) Battery & Charger Parts Diagram

Electric Scooter

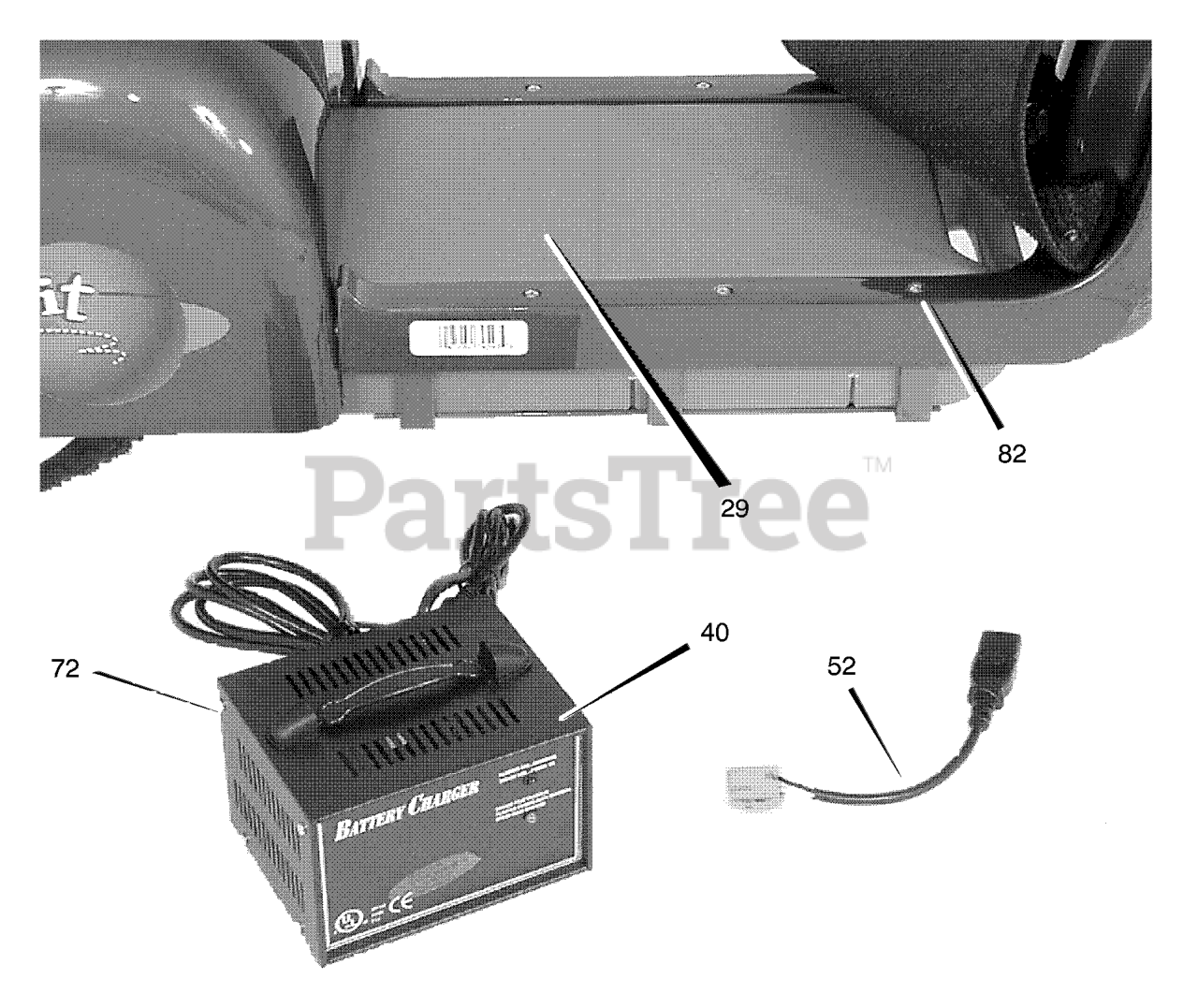

Battery & Charger Parts Diagram

  • Title

29

Murray 7201036

Sealed Battery Set

Note: (Incl'ds battery box, batteries, harness & jumper wire)

$

$

Currently unavailable

--

Murray 7201020

Box, Battery

Note: (Includes both halves)

$

$

Currently unavailable

--

Murray 7201119

Screw (9 required)

$1.99

$

Usually ships in 2-12 days

0

--

Murray 7201093

Screw (2 required-for handle)

$1.99

$

Usually ships in 2-12 days

0

--

Murray 7201113

Nut (2 required-for wiring harness)

$

$

Currently unavailable

--

Murray 7201118

Screw (2 required-for wiring harness

$1.99

$

Usually ships in 2-12 days

0

--

Murray 7201035

Wire, Battery Joint

$4.49

$

Usually ships in 2-12 days

0

--

Murray 7201067

Harness, Battery Wiring

$

$

Currently unavailable

40

Murray 7201049

Charger, 24 Volt

$282.99

$

Usually ships in 2-12 days

0

52

Murray 7201064

Adapter Plug, Remote Charging

$5.49

$

Usually ships in 2-12 days

0

72

Murray 7201087

Label, Charger Info

$

$

Currently unavailable

82

Murray 7201097

Screw (6 required)

$1.99

$

Usually ships in 2-12 days

0
