ES 726 - Shindaiwa Power Sprayer, Backpack (SN: 9029001 - 9039900) Cylinder / Intake / Muffler Parts Diagram

Power Sprayer, Backpack

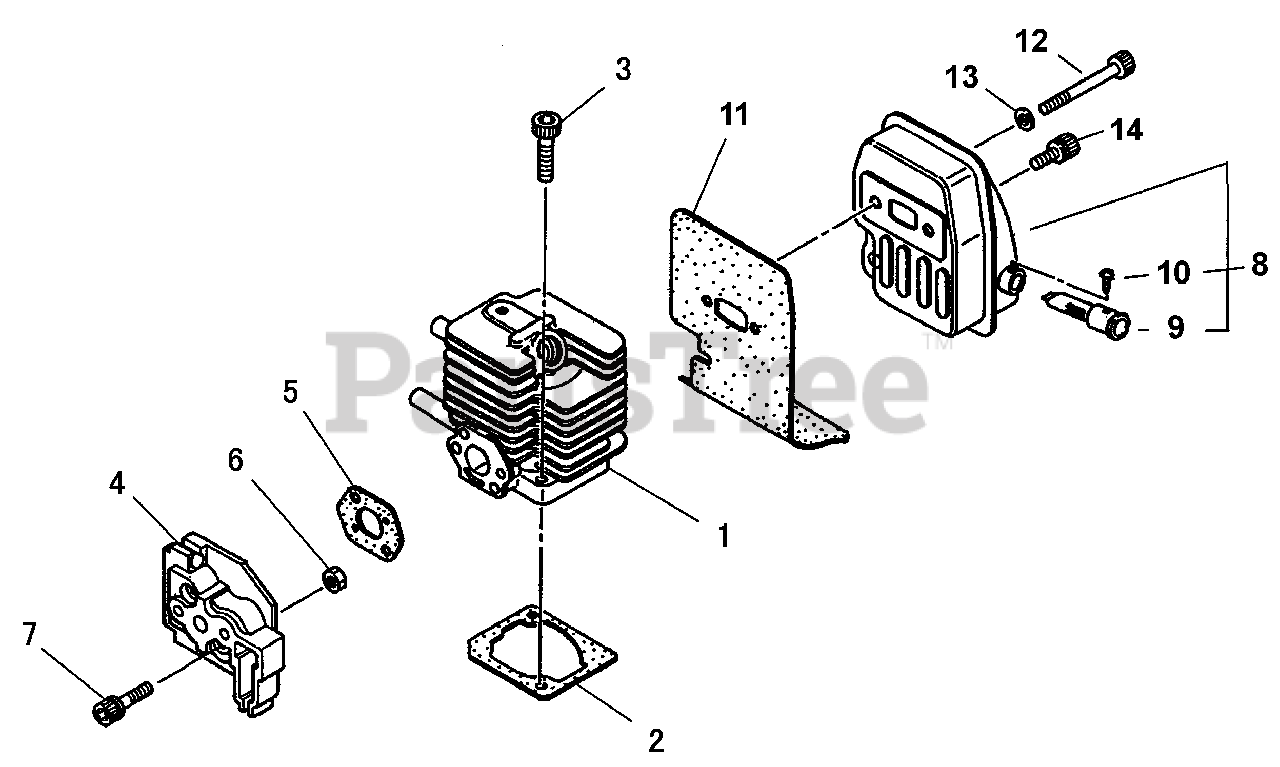

Cylinder / Intake / Muffler Parts Diagram

  • Title

1

Echo A130001390

CYLINDER
(Superseded to A130001391)

Note: 20016-12112

$54.99

$

In Stock, Qty 8

0

2

Echo V100000490

GASKET, CYLINDER

Note: 20016-12120

$1.99

$

In Stock, Qty 13

0

3

Echo 90010505025

SCREW - 5X25

Note: 01020-05250

$1.49

$

In Stock, Qty 19

0

4

Echo A200000500

INSULATOR, INTAKE

Note: 68501-12210

$9.99

$

Usually ships in 2-4 days

0

5

Echo V103001200

GASKET, INTAKE

Note: 20016-12222

$0.99

$

In Stock, Qty 9

0

6

Echo V263000260

NUT - 5X6.3

Note: 20011-12260

$0.99

$

In Stock, Qty 13

0

7

Echo V203000580

SCREW - 5X30
(Superseded to V203000581)

Note: 11022-05305

$

$

Not available

8

Echo A030000120

MUFFLER ASSY

Note: 70135-15100

$31.99

$

Usually ships in 2-4 days

0

9

Echo A310000260

SCREEN, SPARK ARRESTOR

Note: 70103-15150

$7.99

$

Usually ships in 2-4 days

0

10

Echo 9137403006

SCREW - 3X6

Note: 01270-03062

$0.99

$

In Stock, Qty 10

0

11

Echo V104001500

SHIELD, EXHAUST

Note: 20016-15123

$7.99

$

In Stock, only 1 left!

0

12

Echo 90010505050

SCREW - 5X50

Note: 01020-05500

$1.49

$

In Stock, only 3 left!

0

13

Echo 90060000005

WASHER - 5

Note: 01610-05080

$0.99

$

In Stock, Qty 20+

0

14

Echo 90010505012

SCREW - 5X12

Note: 01020-05120

$1.49

$

In Stock, Qty 20+

0
