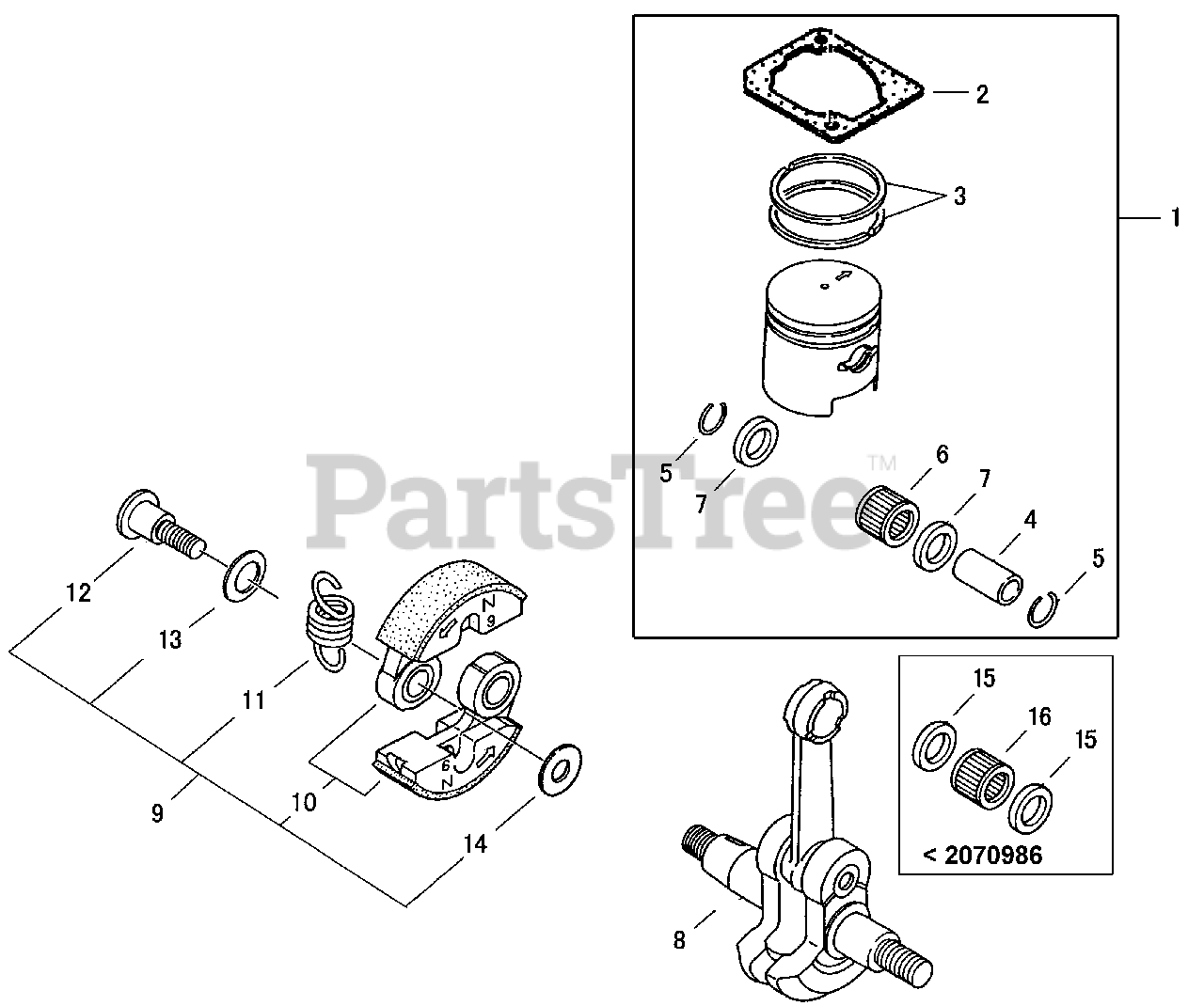

ES 726 - Shindaiwa Power Sprayer, Backpack (SN: 9029001 - 9039900) Clutch, Piston Parts Diagram

Power Sprayer, Backpack

Clutch, Piston Parts Diagram

  • Title

1

Echo P021030500

PISTON KIT

Note: 70870-98020

$60.99

$

In Stock, Qty 6

0

2

Echo V100000490

GASKET, CYLINDER

Note: 20016-12120

$1.99

$

In Stock, Qty 11

0

3

Echo A101000400

RING, PISTON

Note: 20000-41210

$6.49

$

In Stock, Qty 12

0

4

Echo V606000060

PIN, PISTON

Note: 20075-41310

$3.49

$

In Stock, only 1 left!

0

5

Echo V580000070

RING, RETAINING

Note: 70030-41320

$0.99

$

In Stock, Qty 20+

0

6

Echo V553000080

BEARING, NEEDLE - 8

Note: 37013-41230

$6.49

$

Usually ships in 2-4 days

0

7

Echo V306000250

SPACER, PISTON

Note: 37013-41240

$2.49

$

Usually ships in 2-4 days

0

8

Echo A011000720

CRANKSHAFT
(Superseded to P021047970)

Note: 67000-42010

$69.99

$

Usually ships in 2-4 days

0

9

------------------

CLUTCH SHOE ASSY

Note: 80250

$

$

Not available

10

Echo A555000110

SHOE, CLUTCH

Note: 20000-51114

$15.99

$

Usually ships in 2-4 days

0

11

Echo A566000070

SPRING, CLUTCH

Note: 70000-51220

$2.49

$

Usually ships in 2-4 days

0

12

Echo A557000060

BOLT, CLUTCH

Note: 20142-51210

$1.99

$

Usually ships in 2-4 days

0

13

Echo V346000070

WASHER - SPRING

Note: 20087-51234

$0.99

$

Usually ships in 2-4 days

0

14

Echo V304000150

WASHER - 6

Note: 22100-71430

$0.99

$

In Stock, only 2 left!

0

15

Echo V306000260

SPACER, PISTON

Note: 20016-41340; Antes / Before 2070986

$1.49

$

Usually ships in 2-4 days

0

16

Echo V553000100

BEARING, NEEDLE - 8

Note: 67000-41230; Antes / Before 2070986

$5.99

$

In Stock, only 1 left!

0
