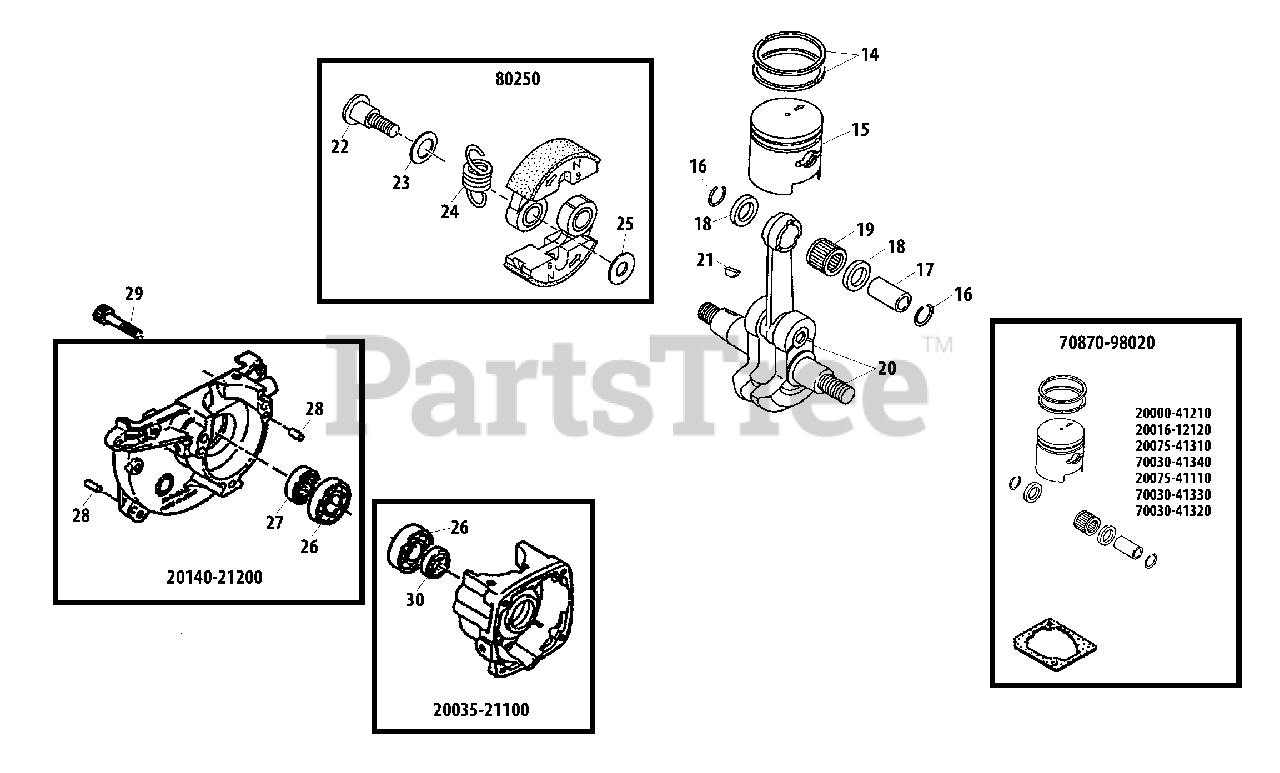

ES 726 - Shindaiwa Power Sprayer, Backpack (Original Version) Crankcase, Piston Parts Diagram

Power Sprayer, Backpack

Crankcase, Piston Parts Diagram

  • Title

70870-98020

Echo 70870-98020

PISTON ASSY
(Superseded to P021030570)

$54.99

$

Usually ships in 2-4 days

0

14

Echo 20000-41210

RING, PISTON
(Superseded to A101000400)

$6.49

$

In Stock, only 2 left!

0

15

Echo 20075-41110

PISTON
(Superseded to 70234-98310)

$35.99

$

Usually ships in 2-4 days

0

16

Echo 70030-41320

RING, RETAINING
(Superseded to V580000070)

$0.99

$

In Stock, Qty 9

0

17

Echo 20075-41310

PIN, PISTON
(Superseded to V606000060)

$3.49

$

In Stock, only 1 left!

0

18

Echo 70030-41340

WASHER, THRUST
(Superseded to 37013-41240)

$2.49

$

Usually ships in 2-4 days

0

19

Echo 70030-41330

BEARING, NEEDLE
(Superseded to 37013-41230)

$6.49

$

Usually ships in 2-4 days

0

7

Echo 20016-12120

GASKET, CYLINDER
(Superseded to V100000490)

$1.99

$

In Stock, Qty 13

0

20

Echo 67000-42010

CRANKSHAFT ASSY
(Superseded to A011000720)

$69.99

$

Usually ships in 2-4 days

0

21

Echo 02403-03100

KEY - 3X10
(Superseded to 9311503010)

$0.99

$

In Stock, Qty 20+

0

80250

Echo 80250

CLUTCH SHOE ASSY

$29.99

$

Usually ships in 2-4 days

0

22

Echo 20142-51210

BOLT, CLUTCH
(Superseded to A557000060)

$1.99

$

Usually ships in 2-4 days

0

23

Echo 20087-51234

LOCKWASHER
(Superseded to V346000070)

$0.99

$

Usually ships in 2-4 days

0

24

Echo 70000-51220

SPRING, CLUTCH
(Superseded to A566000070)

$2.49

$

Usually ships in 2-4 days

0

25

Echo 22100-71430

WASHER - 6
(Superseded to V304000150)

$0.99

$

Usually ships in 2-4 days

0

20000-21211

Echo 20000-21211

SEAL, OIL - 12
(Superseded to V505000080)

$2.99

$

In Stock, Qty 12

0

26

Echo 12900-60010

BEARING, BALL - 6001C3
(Superseded to V592000310)

$5.99

$

In Stock, only 3 left!

0

27

Echo 22150-21250

SEAL, OIL
(Superseded to V505000140)

$3.49

$

In Stock, only 1 left!

0

28

Echo 12492-40080

PIN - LOCATING
(Superseded to V622000040)

$0.99

$

In Stock, Qty 20+

0

29

Echo 01020-05250

SCREW - 5X25
(Superseded to 90010505025)

$1.49

$

In Stock, Qty 19

0

20035-21100

Echo 20035-21100

CRANKCASE ASSY - REAR
(Superseded to 20035-21101)

$69.99

$

In Stock, only 1 left!

0

26

Echo 12900-60010

BEARING, BALL - 6001C3
(Superseded to V592000310)

$5.99

$

In Stock, only 3 left!

0

30

Echo 20000-21211

SEAL, OIL - 12
(Superseded to V505000080)

$2.99

$

In Stock, Qty 12

0

20140-21200

Echo 20140-21200

CRANKCASE M COMPLETE
(Superseded to 20140-21201)

$60.99

$

Usually ships in 2-4 days

0
