ES-32901 - Tecumseh Starter Electric Starter Parts Diagram

Starter

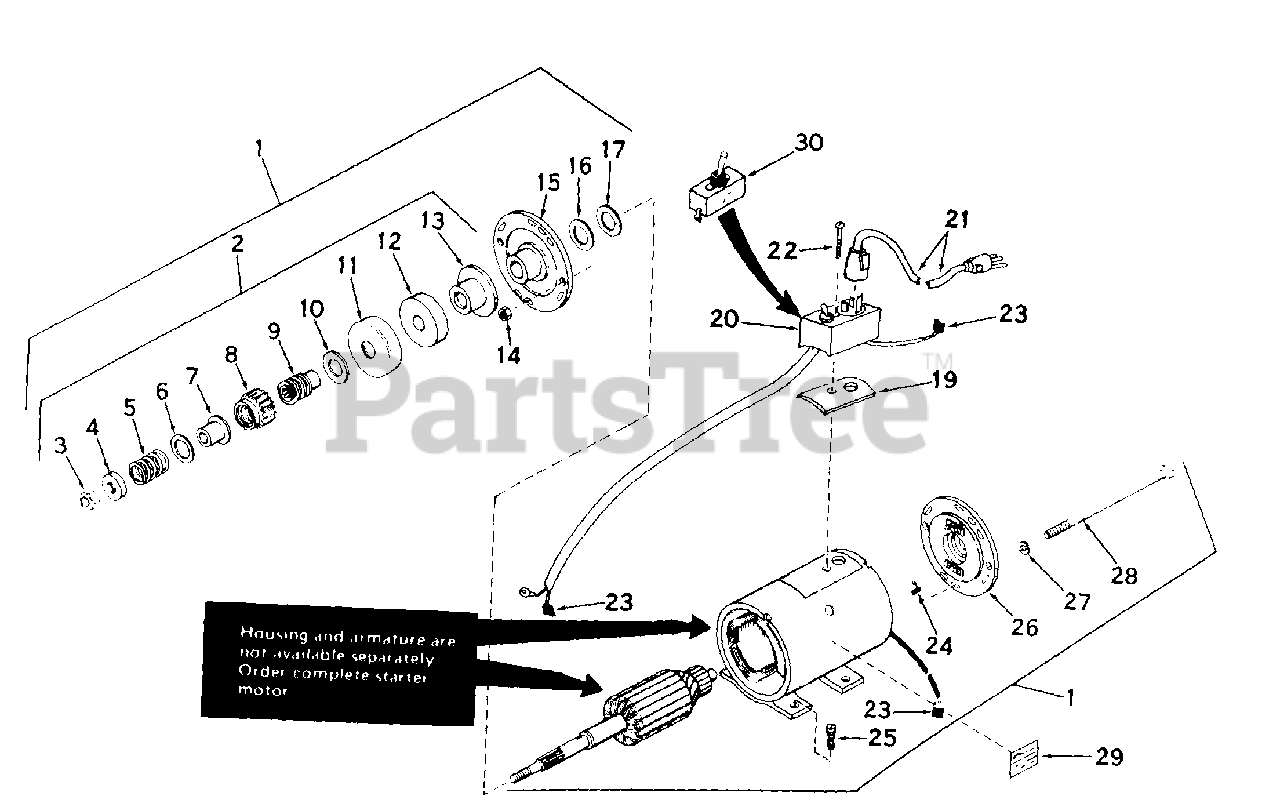

Electric Starter Parts Diagram

  • Title
1

Tecumseh 32901

"Motor, Cranking (Rectifier Assy. atta ched to
(Superseded to 33328D)

$249.48

$

Usually ships in 3-12 days

0

2

Tecumseh 30003

Drive Assy.

$

$

Currently unavailable

3

Tecumseh 30004

Nut, Elastic stop

$

$

Currently unavailable

4

Tecumseh 28692

Stop, Pinion gear

$

$

Currently unavailable

5

Tecumseh 28693

Spring, Anti-drift

$

$

Currently unavailable

6

Tecumseh 28694

Washer, Pinion gear

$

$

Currently unavailable

7

Tecumseh 28695

Sleeve, Anti-drift spring

$

$

Currently unavailable

8

Tecumseh 30005

Gear, Pinion

$

$

Currently unavailable

9

Tecumseh 30006

Shaft, Screw

$

$

Currently unavailable

10

Tecumseh 30007

Washer, Thrust
(Superseded to 650791)

$0.99

$

In Stock, only 3 left!

0

11

Tecumseh 30008

Cup, Cushion

$

$

Currently unavailable

12

Tecumseh 30009

Cushion, Rubber

$

$

Currently unavailable

13

Tecumseh 30010

Washer, Thrust

$

$

Currently unavailable

21

Tecumseh 32450

Cord, Extension (10'6")
(Superseded to 32450B)

$

$

Not available

25

Tecumseh 30063

Screw, Fil. hd. Sems, 1/4-20 9/16

$1.99

$

In Stock, Qty 20+

0

29

Tecumseh 32453

Decal, Caution

$

$

Currently unavailable
