ES-32510 - Tecumseh Starter Electric Starter Parts Diagram

Starter

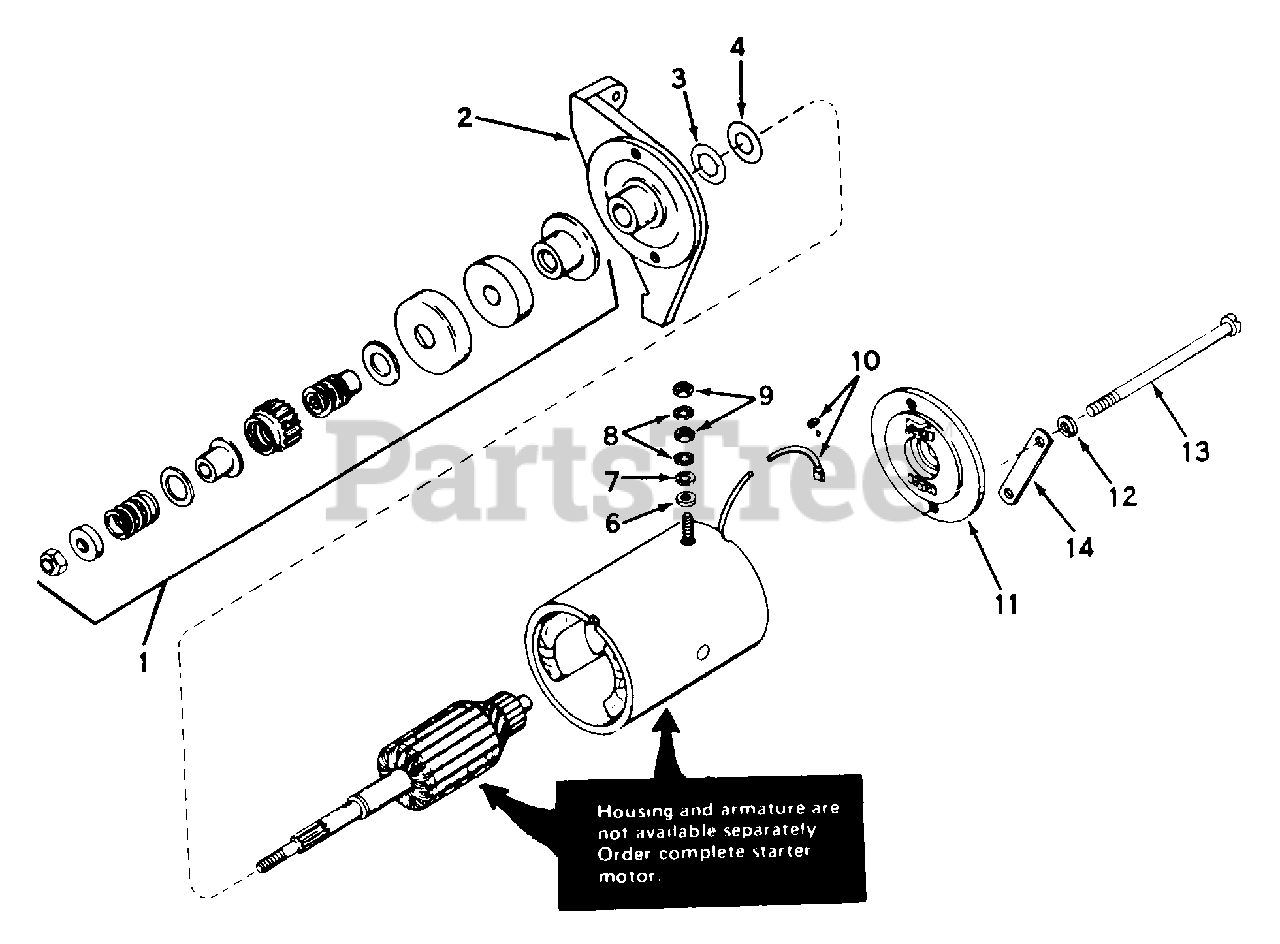

Electric Starter Parts Diagram

  • Title

1

Tecumseh 32567

"Drive Assy., Complete

$

$

Currently unavailable

2

Tecumseh 32568

Cap Assy., Drive end (9/16" bore)

$

$

Currently unavailable

3

Tecumseh 32569

Washer, Spacing

$

$

Currently unavailable

4

Tecumseh 32570

Washer, Spacing (.010" Thick)

$

$

Currently unavailable

6

Tecumseh 28707

Washer, Insulating

$

$

Currently unavailable

7

Tecumseh 28708

Washer, Plain

$

$

Currently unavailable

8

Tecumseh 650131

Washer, Lock
(Superseded to 27513)

$1.99

$

Usually ships in 3-12 days

0

9

Tecumseh 650456

Nut, Hex, 1/4-20

$1.99

$

In Stock, only 1 left!

0

10

Tecumseh 32572

Brush & Spring Kit

$

$

Currently unavailable

11

Tecumseh 32573

Cap Assy., Commutator end

$

$

Currently unavailable

12

Tecumseh 27513

Washer, Lock, 1/4

$1.99

$

Usually ships in 3-12 days

0

13

Tecumseh 32574

Bolt, Thru

$

$

Currently unavailable

14

Tecumseh 32684

Bracket, Support

$

$

Currently unavailable
