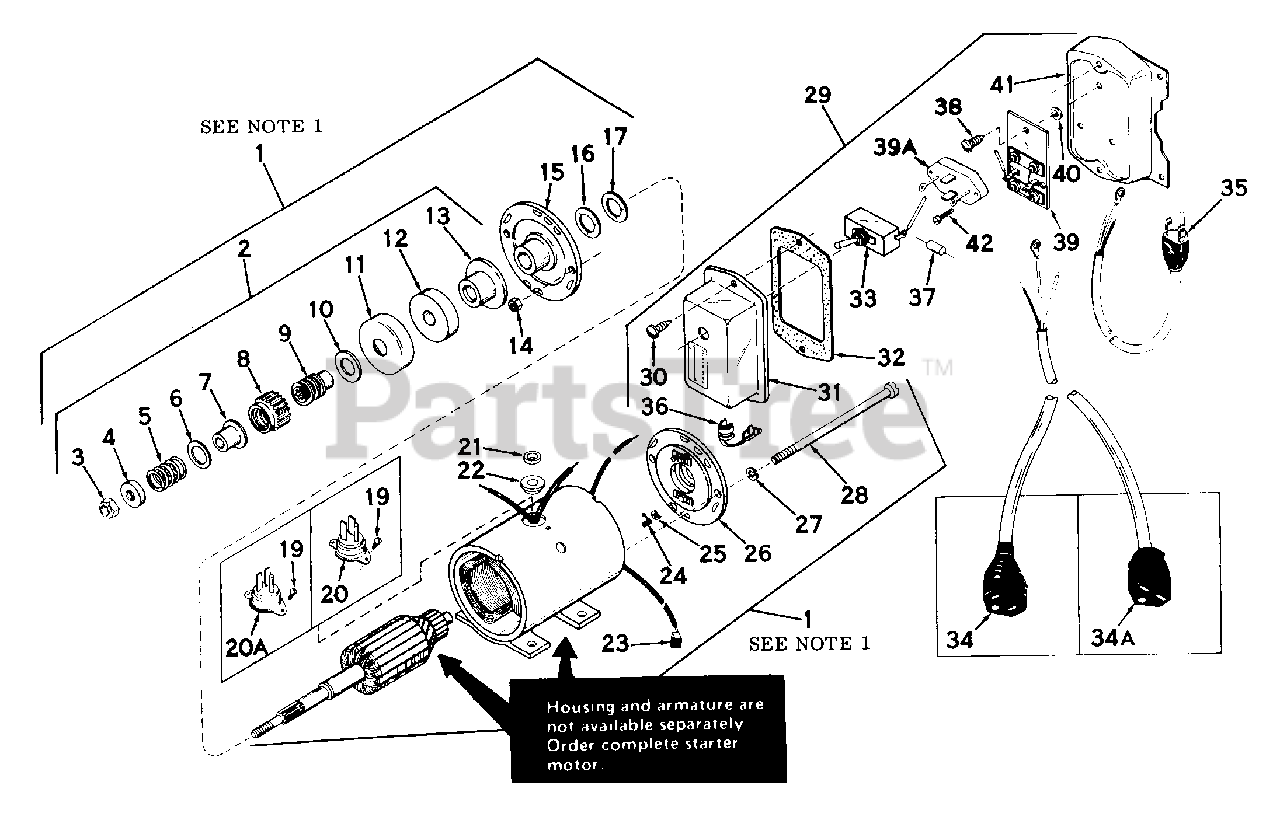

ES-30867 - Tecumseh Starter Electric Starter Parts Diagram

Starter

Electric Starter Parts Diagram

  • Title

1

Tecumseh 31562

"Motor, Cranking
(Superseded to 33328D)

$249.48

$

Usually ships in 3-12 days

0

2

Tecumseh 30003

Drive Assy.

$

$

Currently unavailable

3

Tecumseh 30004

Nut, Elastic stop

$

$

Currently unavailable

4

Tecumseh 28692

Stop, Pinion gear

$

$

Currently unavailable

5

Tecumseh 28693

Spring, Anti-drift

$

$

Currently unavailable

6

Tecumseh 28694

Washer, Pinion gear

$

$

Currently unavailable

7

Tecumseh 28695

Sleeve, Anti-drift spring

$

$

Currently unavailable

8

Tecumseh 30005

Gear, Pinion

$

$

Currently unavailable

9

Tecumseh 30006

Shaft, Screw

$

$

Currently unavailable

10

Tecumseh 30007

Washer, Thrust
(Superseded to 650791)

$0.99

$

In Stock, only 3 left!

0

11

Tecumseh 30008

Cup, Cushion

$

$

Currently unavailable

12

Tecumseh 30009

Cushion, Rubber

$

$

Currently unavailable

13

Tecumseh 30010

Washer, Thrust

$

$

Currently unavailable

14

Tecumseh 30011

Nut, Securing

$

$

Currently unavailable

15

Tecumseh 31590

Cap Assy., Drive end

$

$

Currently unavailable

16

Tecumseh 30014

Washer, Spacing (.010 thick)

$

$

Currently unavailable

16

Tecumseh 30015

Washer, Spacing (.020 thick)

$

$

Currently unavailable

16

Tecumseh 31591

Washer, Spacing (.005 thick)

$

$

Currently unavailable

17

Tecumseh 31592

Washer, Nylon

$

$

Currently unavailable

19

Tecumseh 31594

Screw, Fastening

$

$

Currently unavailable

20

Tecumseh 31595

Receptacle (Standard, parallel blades )

$

$

Currently unavailable

21

Tecumseh 31596

Washer, Spacing

$

$

Currently unavailable

22

Tecumseh 31597

Bushing, Insulation

$

$

Currently unavailable

23

Tecumseh 31598

Brush, Commutator

$

$

Currently unavailable

24

Tecumseh 30021

Spring, Brush

$

$

Currently unavailable

25

Tecumseh 31599

Insulation, Spring

$

$

Currently unavailable

26

Tecumseh 31600

Cap Assy., Commutator end

$

$

Currently unavailable

27

Tecumseh 30012

Washer, Lock

$

$

Currently unavailable

28

Tecumseh 30023

Bolt, Thru

$

$

Currently unavailable

29

Tecumseh 32536

Rectifier Assy. (Standard plug, for p arallel
(Superseded to 32669A)

$

$

Currently unavailable

30

Tecumseh 31601

Screw, Fastening
(Superseded to 650760)

$1.99

$

In Stock, only 3 left!

0

31

Tecumseh 31602

Cover, Rectifier

$

$

Currently unavailable

32

Tecumseh 31603

Gasket, Cover

$

$

Currently unavailable

33

Tecumseh 31604

Switch, Toggle

$

$

Currently unavailable

34

Tecumseh 31605

Cable Assy., D.C. output (Standard pl ug, for

$

$

Currently unavailable

35

Tecumseh 31606

Cable Assy., A.C, input

$

$

Currently unavailable

36

Tecumseh 31607

Bushing, Strain relief

$

$

Currently unavailable

37

Tecumseh 31608

Thyrector

$

$

Currently unavailable

38

Tecumseh 31609

Screw, Fastening

$

$

Currently unavailable

39

Tecumseh 31610

Base Assy., Rectifier
(Superseded to 31610A)

$

$

Currently unavailable

40

Tecumseh 31596

Washer, Spacing

$

$

Currently unavailable

41

Tecumseh 31611

Base

$

$

Currently unavailable
