ES-28688 - Tecumseh Starter Electric Starter Parts Diagram

Starter

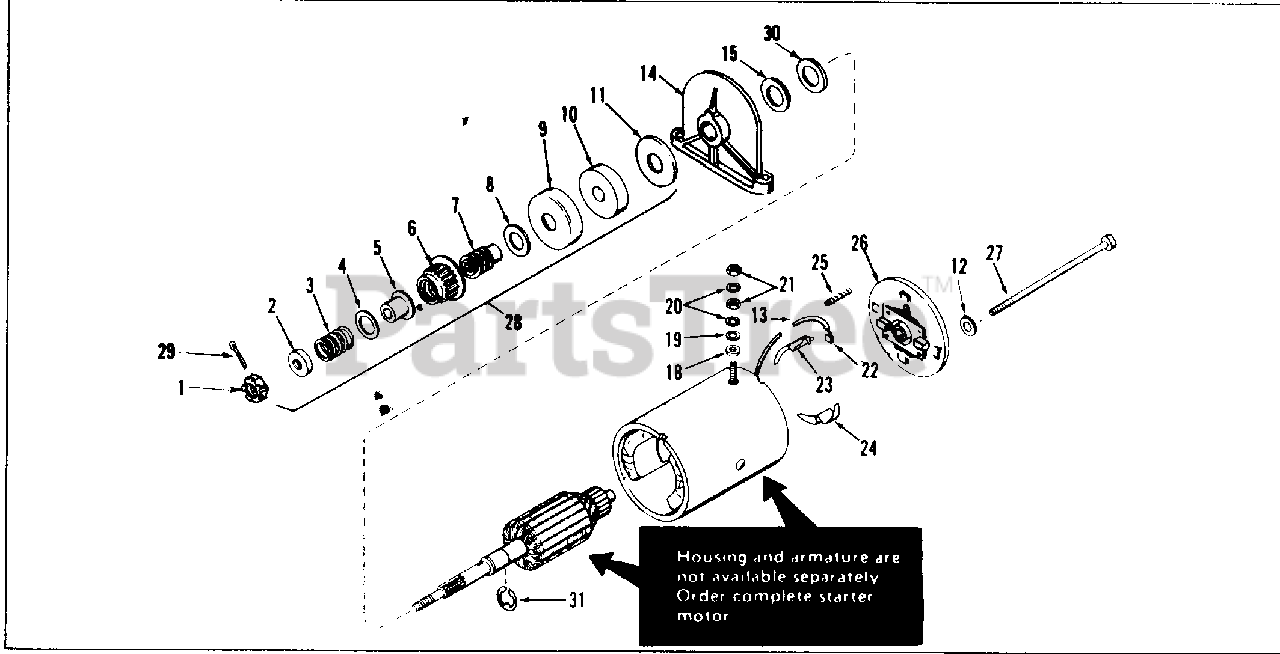

Electric Starter Parts Diagram

  • Title

1

Tecumseh 28691

"Nut, Castellated

$

$

Currently unavailable

2

Tecumseh 28692

Stop, Pinion

$

$

Currently unavailable

3

Tecumseh 28693

Spring, Anti-drift

$

$

Currently unavailable

4

Tecumseh 28694

Washer, Pinion

$

$

Currently unavailable

5

Tecumseh 28695

Sleeve, Anti-drift spring

$

$

Currently unavailable

6

Tecumseh 28696

Gear, Pinion

$

$

Currently unavailable

7

Tecumseh 28697

Shaft, Screw

$

$

Currently unavailable

8

Tecumseh 28698

Washer, Thrust

$

$

Currently unavailable

9

Tecumseh 28699

Cup, Cushion

$

$

Currently unavailable

10

Tecumseh 28700

Cushion Rubber

$

$

Currently unavailable

11

Tecumseh 28701

Washer, Thrust

$

$

Currently unavailable

12

Tecumseh 28718

Washer, Lock

$

$

Currently unavailable

13

Tecumseh 28711

Tubing, Insulation

$

$

Currently unavailable

14

Tecumseh 28702

Cap Assy., Drive end, includes bearin g

$

$

Currently unavailable

15

Tecumseh 28703

Washer, Spacing (.003 thick)

$

$

Currently unavailable

18

Tecumseh 28707

Washer, Insulation

$

$

Currently unavailable

19

Tecumseh 28708

Washer, Plain

$

$

Currently unavailable

20

Tecumseh 650131

Washer, Lock
(Superseded to 27513)

$1.99

$

Usually ships in 3-12 days

0

21

Tecumseh 650723

Nut, Hex
(Superseded to 650864)

$1.99

$

In Stock, only 2 left!

0

22

Tecumseh 28712

Brush

$

$

Currently unavailable

23

Tecumseh 28713

Insulation

$

$

Currently unavailable

24

Tecumseh 28714

Insulation

$

$

Currently unavailable

25

Tecumseh 28716

Spring, Brush

$

$

Currently unavailable

26

Tecumseh 28717

End Cap Assy., Commutator

$

$

Currently unavailable

27

Tecumseh 28719

Bolt, Thru

$

$

Currently unavailable

28

Tecumseh 28689

Drive Assy.,Complete

$

$

Currently unavailable

29

Tecumseh 28690

Pin, Cotter

$

$

Currently unavailable

30

Tecumseh 28704

Washer, spacer (.010 thick)

$

$

Currently unavailable

31

Tecumseh 30986

Ring, Retaining

$

$

Currently unavailable
