ES-27200 - Tecumseh Starter Electric Starter Parts Diagram

Starter

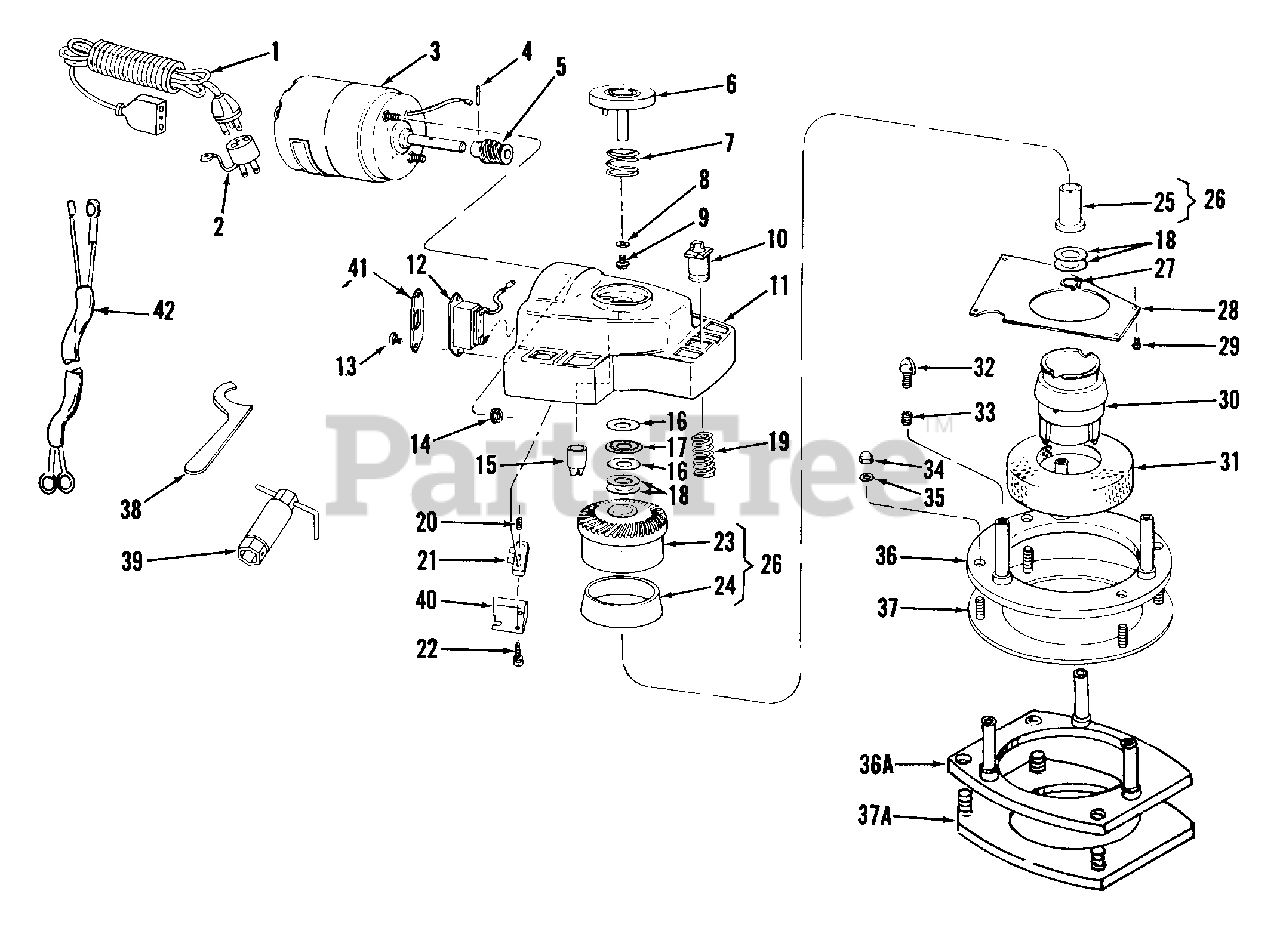

Electric Starter Parts Diagram

  • Title

3

Tecumseh 27420

Motor, DC electric

$

$

Currently unavailable

4

Tecumseh 27406

Pin, Roll

$

$

Currently unavailable

5

Tecumseh 27407

Gear, Pinion

$

$

Currently unavailable

6

Tecumseh 27379

Button, Starter switch

$

$

Currently unavailable

7

Tecumseh 27381

Spring, Switch return

$

$

Currently unavailable

8

Tecumseh 27382

Washer, Flat, No. 10

$

$

Currently unavailable

9

Tecumseh 27383

Screw, Rd. hd. Sems, 10-32 x 3/8

$

$

Currently unavailable

10

Tecumseh 27384

Bushing

$

$

Currently unavailable

11

Tecumseh 27414

Housing, Starter

$

$

Currently unavailable

13

Tecumseh 27408

Screw, Sems, 4-40 x 1/4

$

$

Currently unavailable

14

Tecumseh 27405

Nut & Lockwasher Assy.

$

$

Currently unavailable

15

Tecumseh 27389

Bearing, Pinion

$

$

Currently unavailable

16

Tecumseh 27386

Race, Thrust

$

$

Currently unavailable

18

Tecumseh 27388

Shim, Thrust

$

$

Currently unavailable

19

Tecumseh 27385

Spring, Guide post

$

$

Currently unavailable

20

Tecumseh 27380

Spring, Switch plunger

$

$

Currently unavailable

21

Tecumseh 27422

Switch, DC

$

$

Currently unavailable

22

Tecumseh 27410

Screw, Sems, No. 4-40 x 1/2

$

$

Currently unavailable

23

Tecumseh 27390

Gear, Driven

$

$

Currently unavailable

24

Tecumseh 27391

Facing, Clutch

$

$

Currently unavailable

25

Tecumseh 27392

Bearing

$

$

Currently unavailable

26

Tecumseh 27417

Cone Assy., Gear

$

$

Currently unavailable

27

Tecumseh 27393

Ring, Truarc

$

$

Currently unavailable

28

Tecumseh 27394

Shield

$

$

Currently unavailable

29

Tecumseh 27395

Screw, Sems, No. 4-40 x 1/4

$

$

Currently unavailable

30

Tecumseh 27396

Cone

$

$

Currently unavailable

31

Tecumseh 27397

Screen

$

$

Currently unavailable

32

Tecumseh 27401

Cap, Stud

$

$

Currently unavailable

33

Tecumseh 27400

Spring, Stud cap

$

$

Currently unavailable

34

Tecumseh 27398

Nut, Acorn

$

$

Currently unavailable

35

Tecumseh 27399

Lockwasher

$

$

Currently unavailable

36A

Tecumseh 27402

Ring, Mounting

$

$

Currently unavailable

41

Tecumseh 27421

Cover, Receptacle

$

$

Currently unavailable

42

Tecumseh 27423

Leads, Battery

$

$

Currently unavailable
