ES-255 - Echo Shred N Vac Blower (SN: P18812001001 - P18812999999) Starter S/N: P18812012382 - P18812999999 Parts Diagram

Shred N Vac Blower

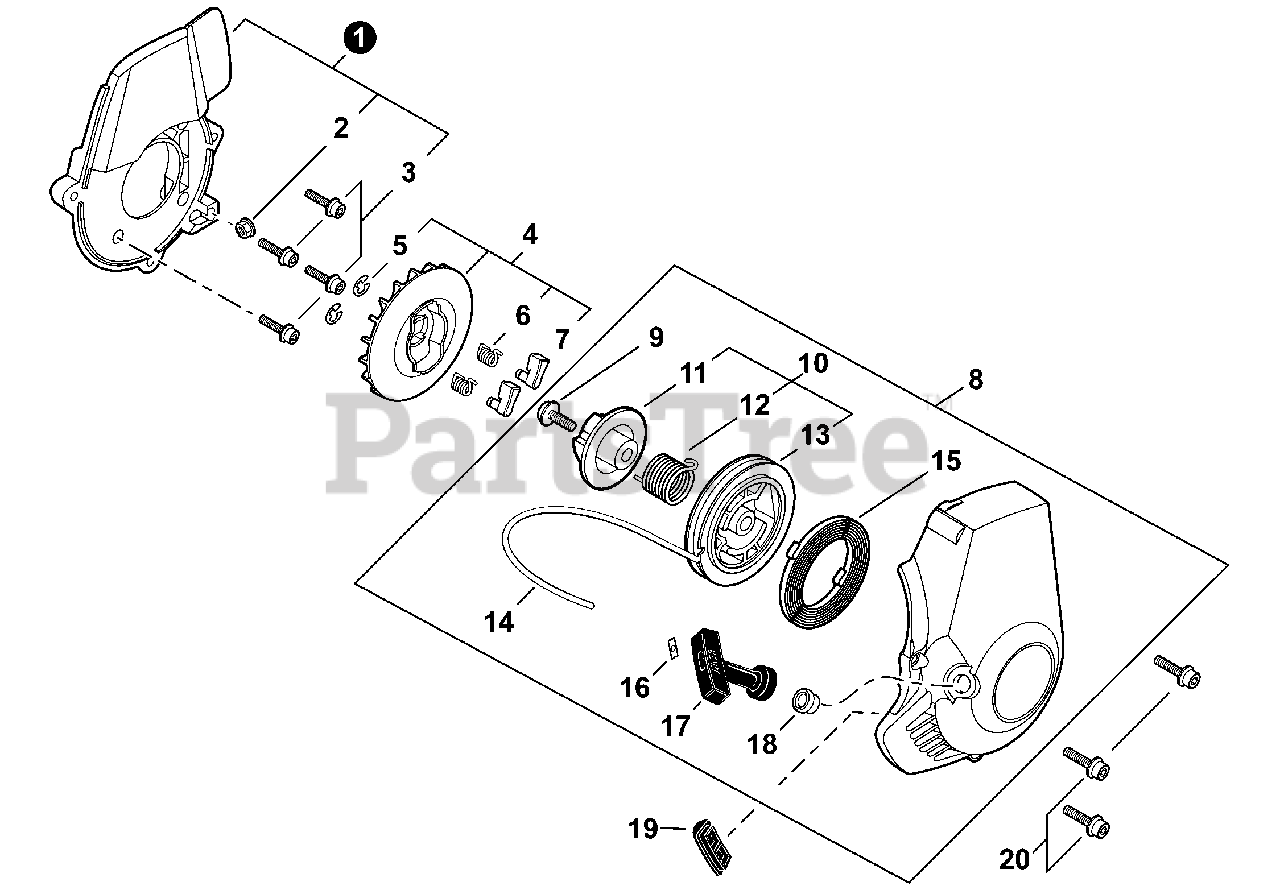

Starter S/N: P18812012382 - P18812999999 Parts Diagram

  • Title

1

Echo P021013780

SPACER ASSY.

Note: Includes Items 2-3

$11.99

$

Usually ships in 2-4 days

0

2

Echo V263000070

NUT, FLANGE 5

$0.99

$

In Stock, only 4 left!

0

3

Echo 90016304016

BOLT 4×16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

4

Echo A052000250

PAWL ASSY, STARTER

Note: Includes Items 5-7

$14.99

$

In Stock, only 1 left!

0

5

Echo 90070000004

E-RING 4

$0.99

$

In Stock, Qty 20+

0

6

Echo 17723412220

SPRING, RETURN

$3.99

$

In Stock, Qty 10

0

7

Echo P022006850

PAWL, STARTER

$3.49

$

In Stock, only 2 left!

0

8

Echo A051001181

STARTER, RECOIL

Note: Includes Items 9-18

$34.99

$

In Stock, Qty 10

0

9

Echo V253000310

SCREW 5

$1.99

$

In Stock, Qty 11

0

10

Echo P050009900

REEL/CAM PLATE SET

Note: Includes Items 11-13

$17.99

$

In Stock, Qty 20+

0

11

Echo P022028000

PLATE, CAM

$3.99

$

In Stock, Qty 20+

0

12

Echo P022008270

SPRING, TORSION

$8.99

$

In Stock, Qty 20+

0

13

Echo P022027980

REEL, ROPE

$6.49

$

In Stock, only 3 left!

0

14

Echo P022008260

ROPE, STARTER 3×700

$

$

Not available

15

Echo 17722042030

SPRING, RECOIL
(Superseded to P022019680)

$9.99

$

In Stock, only 4 left!

0

16

Echo 17724611120

RETAINER, ROPE
(Superseded to P022037670)

$2.49

$

In Stock, Qty 7

0

17

Echo 17722827030

GRIP, STARTER

$5.99

$

In Stock, Qty 20+

0

18

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 14

0

19

Echo V420001440

CUSHION

$1.99

$

Usually ships in 2-4 days

0

20

Echo 90010605014

BOLT 5×14

$1.49

$

In Stock, Qty 20+

0
