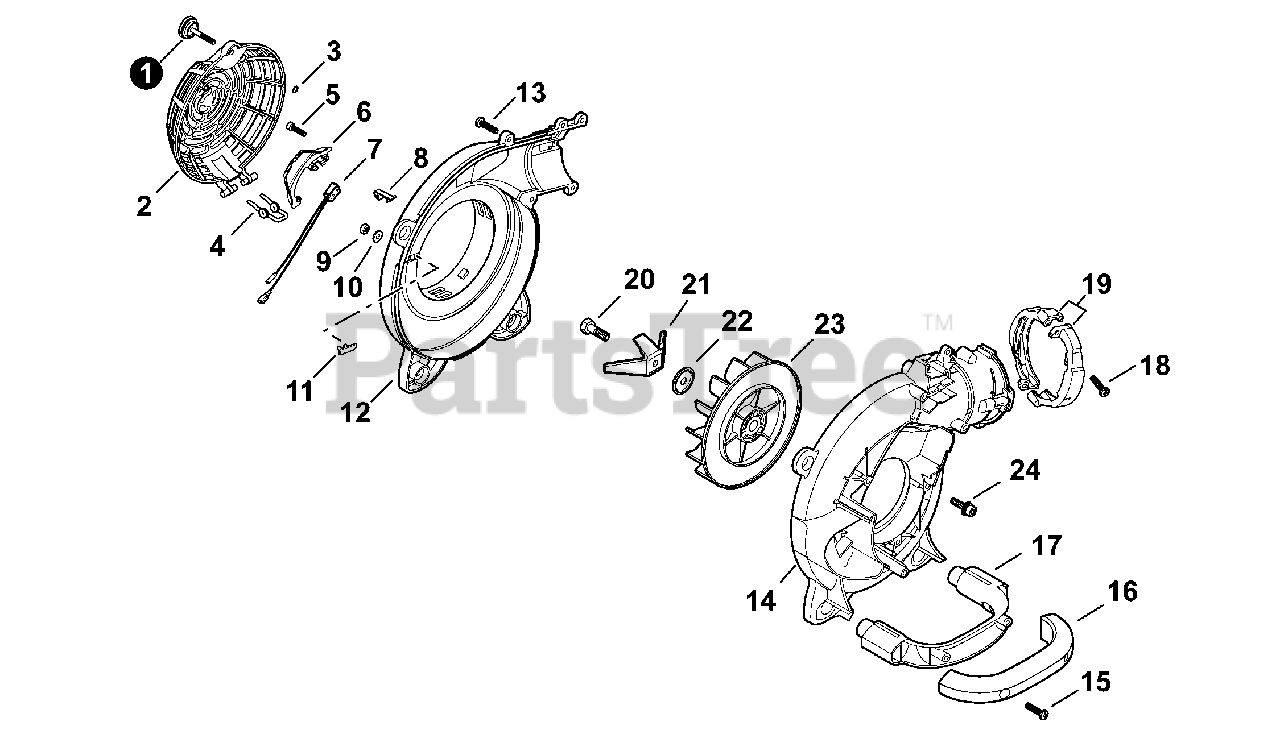

ES-255 - Echo Shred N Vac Blower (SN: P18812001001 - P18812999999) Fan Case Parts Diagram

Shred N Vac Blower

Fan Case Parts Diagram

  • Title

1

Echo V299000290

THUMBSCREW
(Superseded to V299000650)

$2.49

$

In Stock, Qty 10

0

2

Echo E104000090

COVER, INTAKE

$11.99

$

In Stock, only 1 left!

0

3

Echo 90072000003

O-RING 3

$1.49

$

In Stock, Qty 9

0

4

Echo V452000370

SPRING, TORSION

$2.99

$

In Stock, only 3 left!

0

5

Echo 90025604016

SCREW 4×16

$0.99

$

In Stock, Qty 20+

0

6

Echo A473000020

BRACKET, SWITCH

$5.49

$

Usually ships in 2-4 days

0

7

Echo A045000170

SWITCH, SAFETY

$15.99

$

Usually ships in 2-4 days

0

8

Echo A446000000

LEVER, ACTUATOR

$0.99

$

In Stock, only 3 left!

0

9

Echo 90056250005

NUT, LOCK M5

$0.99

$

In Stock, Qty 20+

0

10

Echo 90060300005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

11

Echo X413000020

CUTTER

$6.99

$

In Stock, only 1 left!

0

12

Echo E103000490

COVER, FAN

$35.99

$

Usually ships in 2-4 days

0

13

Echo 90025305020

SCREW 5×20

$1.49

$

In Stock, Qty 20+

0

14

Echo E103000501

CASE, FAN

$55.99

$

Usually ships in 2-4 days

0

15

Echo 90025305020

SCREW 5×20

$1.49

$

In Stock, Qty 20+

0

16

Echo C410000400

COVER, HANDLE

$4.49

$

In Stock, Qty 8

0

17

Echo C410000391

HANDLE, REAR

$5.49

$

In Stock, Qty 8

0

18

Echo 90025305020

SCREW 5×20

$1.49

$

In Stock, Qty 20+

0

19

Echo E162000000

COLLAR, LOCKING

$1.99

$

In Stock, Qty 13

0

20

Echo 90010508015

BOLT 8×15

$0.99

$

In Stock, only 3 left!

0

21

Echo X413000010

CUTTER, SHREDDER

$6.49

$

In Stock, only 1 left!

0

22

Echo 10014319830

WASHER 8.2×31×0.8

$1.49

$

In Stock, only 4 left!

0

23

Echo E100000064

FAN
(Superseded to P021010663)

$

$

Not available

24

Echo 90016204020

BOLT 4×20

$1.49

$

In Stock, Qty 20+

0
