ES-255 - Echo Shred N Vac Blower (SN: P07213001001 - P07213999999) Fuel System S/N: P07213001001 - P07213003956 Parts Diagram

Shred N Vac Blower

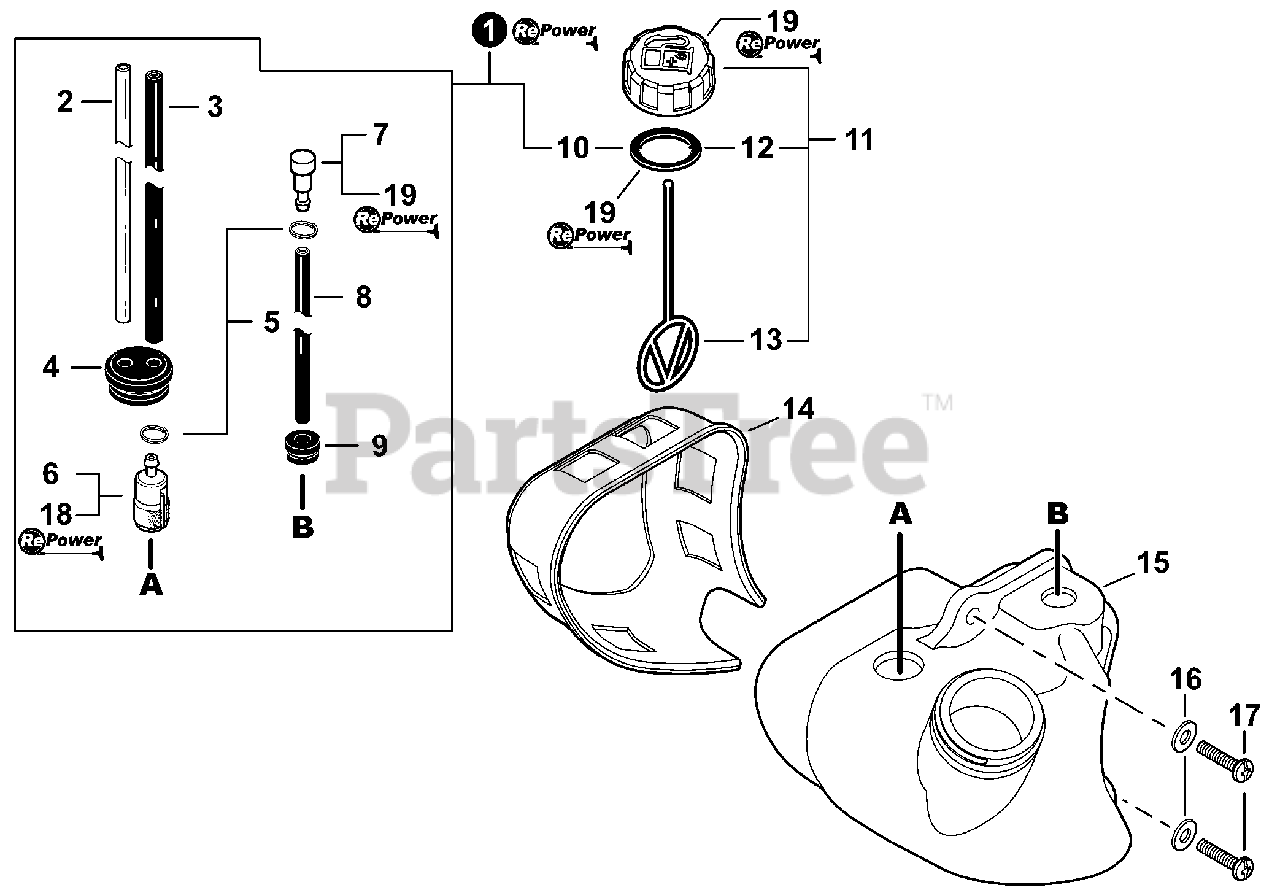

Fuel System S/N: P07213001001 - P07213003956 Parts Diagram

  • Title

1

Echo 90115

FUEL SYSTEM KIT - REPOWER
(Superseded to 90130)

Note: Includes Items 2-10

$27.99

$

In Stock, only 1 left!

0

2

Echo 13201049730

PIPE, FUEL 3×6×85 CLEAR

$2.49

$

In Stock, Qty 5

0

3

Echo V471001860

PIPE

$1.99

$

In Stock, Qty 20+

0

4

Echo 13211544330

GROMMET, FUEL
(Superseded to 13211544331)

$1.99

$

In Stock, Qty 20+

0

5

Echo 13201309820

CLIP 6MM

$0.99

$

In Stock, Qty 20+

0

6

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

7

Echo A356000031

VENT ASSY

$7.99

$

In Stock, Qty 20+

0

8

Echo V471001220

PIPE, FUEL VENT 3×5×50

$1.49

$

In Stock, Qty 18

0

9

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.49

$

In Stock, Qty 17

0

10

Echo 13101655830

GASKET, FUEL CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

11

Echo P021040030

CAP ASSY, FUEL

Note: Includes Items 12-13

$5.99

$

In Stock, Qty 20+

0

12

Echo 13101655830

GASKET, FUEL CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

13

Echo 13105156030

CONNECTOR, CAP L= 100mm

$1.49

$

In Stock, Qty 20+

0

14

Echo V420001430

GUARD, FUEL TANK

$1.99

$

In Stock, Qty 5

0

15

Echo A350000760

TANK, FUEL
(Superseded to A350002550)

$29.99

$

Usually ships in 2-4 days

0

16

Echo 90060300005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

17

Echo 90025305020

SCREW 5×20

$1.49

$

In Stock, Qty 20+

0

18

Echo 90154

TUNE-UP KIT - REPOWER
(Superseded to 90154Y)

$23.99

$

In Stock, only 2 left!

0

19

Echo 90248

CAP/VENT KIT - REPOWER
(Superseded to Discontinued)

$

$

Not available
