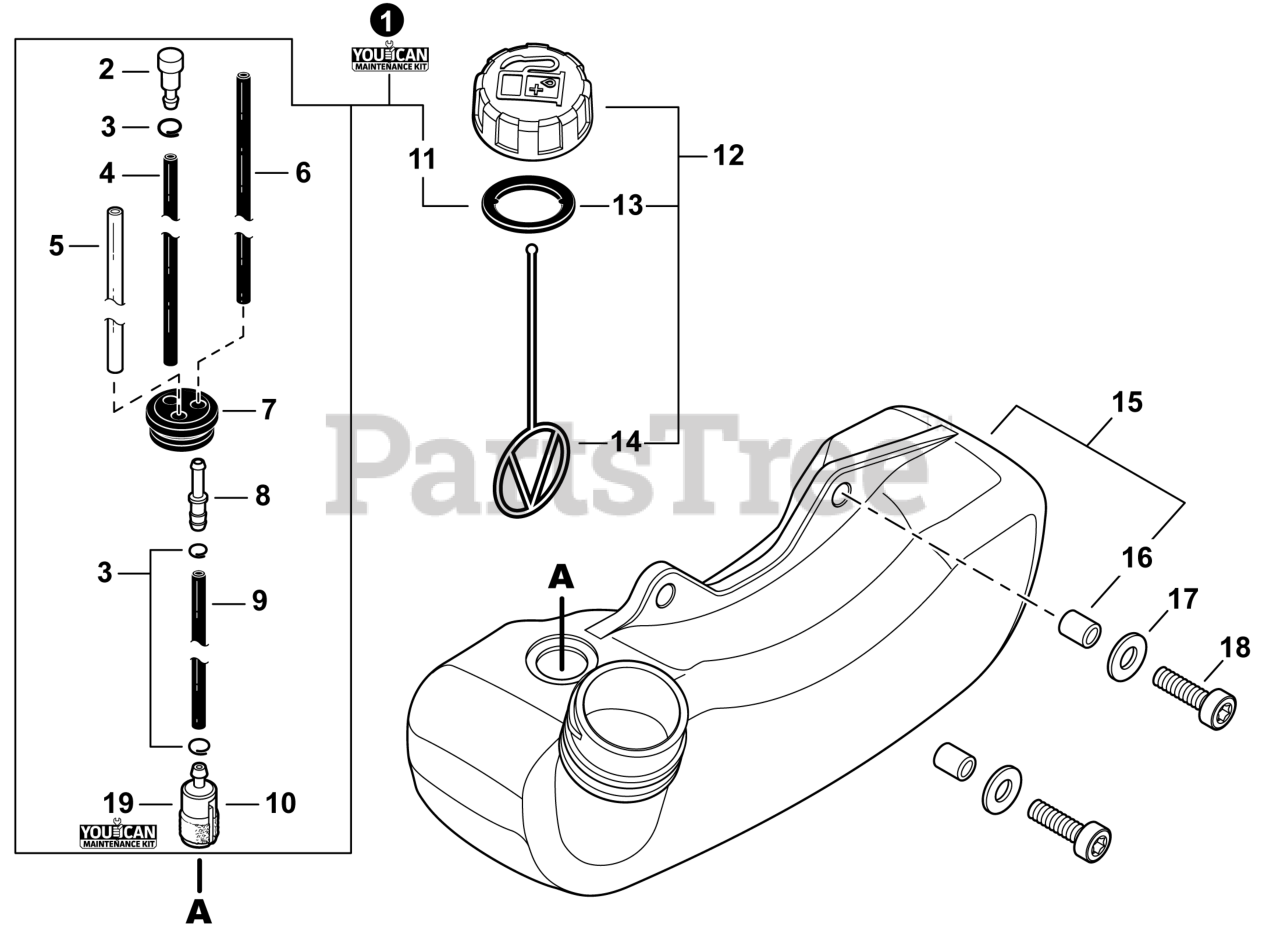

ES-250 - Echo Shred N Vac Blower (SN: P60512001001 - P60512999999) Fuel System Parts Diagram

Shred N Vac Blower

Fuel System Parts Diagram

  • Title

1

Echo 90129Y

FUEL SYSTEM KIT - YOUCANT

Note: Includes Items 2-11

$23.99

$

In Stock, Qty 20+

0

2

Echo A356000031

VENT ASSY

$7.99

$

In Stock, Qty 20+

0

3

Echo V490001240

CLIP 6

$0.99

$

In Stock, Qty 20+

0

4

Echo 13201204632

PIPE, FUEL 3x5x80 BLACK

$3.99

$

In Stock, Qty 16

0

5

Echo 13201049730

PIPE, FUEL 3x6x85 YELLOW

$2.49

$

In Stock, Qty 5

0

6

Echo V471005630

PIPE, FUEL 3x5.5x78 BLACK

$3.49

$

In Stock, Qty 20+

0

7

Echo 13211546730

GROMMET, FUEL 5

$1.99

$

In Stock, Qty 20+

0

8

Echo V186000520

CONNECTOR, PIPE 5x3.5

$0.99

$

In Stock, Qty 20+

0

9

Echo V471003701

PIPE, FUEL 3x5x130 BLACK

$1.49

$

Usually ships in 2-4 days

0

10

Echo A369000480

FILTER, FUEL

$5.49

$

In Stock, Qty 20+

0

11

Echo V107000210

GASKET, FUEL CAP
(Superseded to V107000150)

$4.49

$

In Stock, Qty 20+

0

12

Echo P100011640

CAP ASSY, FUEL

Note: Includes Items 13-14

$

$

Currently unavailable

13

Echo V107000210

GASKET, FUEL CAP
(Superseded to V107000150)

$4.49

$

In Stock, Qty 20+

0

14

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 20+

0

15

Echo A350002541

TANK ASSY, FUEL

Note: Includes Item 16

$24.99

$

In Stock, only 2 left!

0

16

Echo 13104528230

SPACER 6.2x7.8x6

$1.49

$

In Stock, Qty 11

0

17

Echo 90060300005

WASHER 5.5x12x0.8

$0.99

$

In Stock, Qty 20+

0

18

Echo V805000150

BOLT, TORX 5x16

$0.99

$

In Stock, Qty 20+

0

19

Echo 90152Y

TUNE-UP KIT - YOUCANT

$20.99

$

In Stock, Qty 20+

0
