ES-250 - Echo Shred N Vac Blower (SN: P41814001001 - P41814999999) Starter Parts Diagram

Shred N Vac Blower

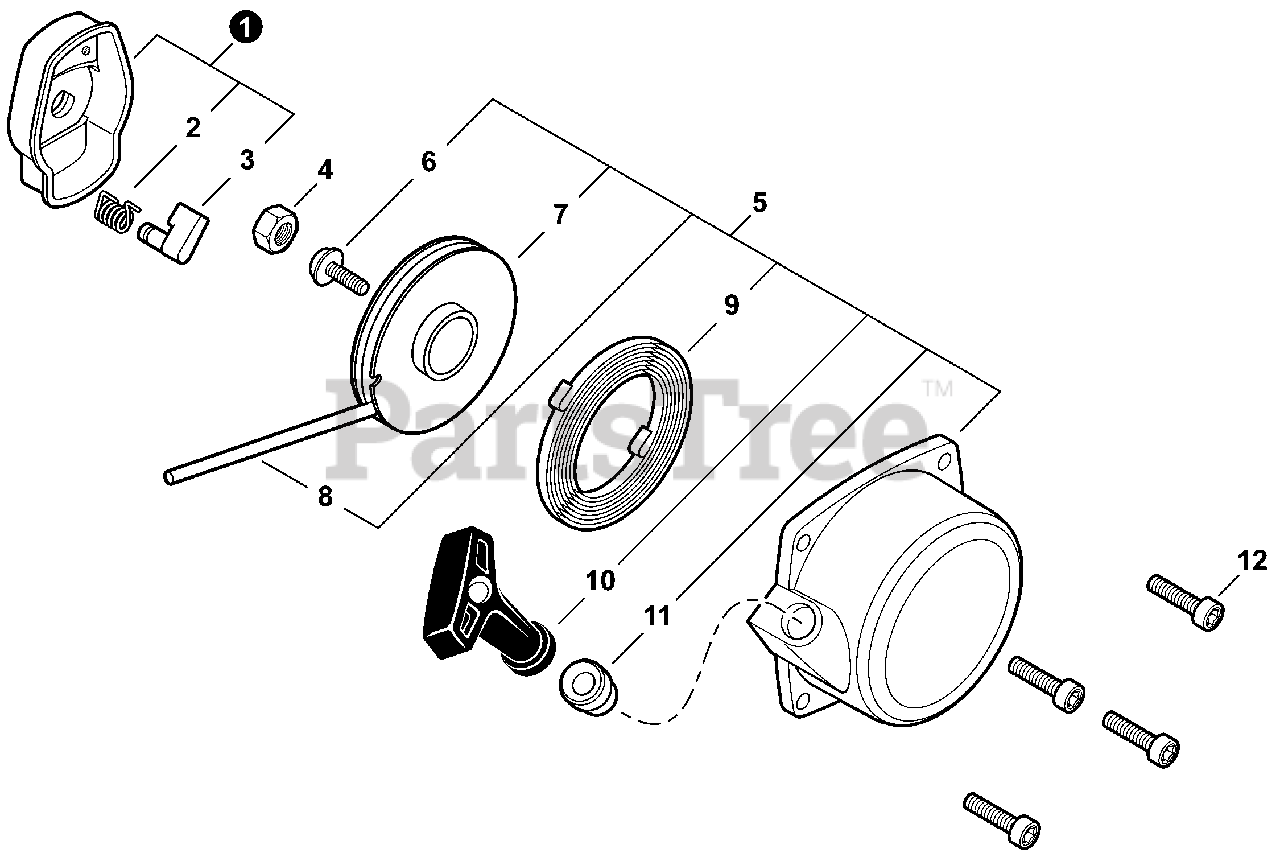

Starter Parts Diagram

  • Title
1

Echo A052000280

PULLEY ASSY, STARTER

Note: Includes Items 2-3

$11.99

$

In Stock, only 1 left!

0

2

Echo 17723412220

SPRING, RETURN

$3.99

$

In Stock, Qty 10

0

3

Echo 17721844330

PAWL, STARTER - BLACK

$3.49

$

In Stock, Qty 20+

0

$0.99

$

In Stock, only 4 left!

0

5

Echo A051000960

STARTER ASSY, RECOIL
(Superseded to A051000961)

Note: Includes Items 6-11

$52.99

$

In Stock, Qty 12

0

$3.49

$

In Stock, only 1 left!

0

7

Echo P022019690

REEL, ROPE
(Superseded to P022019691)

$14.99

$

In Stock, Qty 13

0

8

Echo 17722610120

ROPE, STARTER 3.0×1000

$5.99

$

In Stock, Qty 6

0

9

Echo P022019680

SPRING, RECOIL

$9.99

$

In Stock, Qty 6

0

10

Echo 17722806530

GRIP, STARTER

$4.99

$

In Stock, Qty 20+

0

11

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 14

0

12

Echo V804000060

BOLT, TORX 4×16

$0.99

$

In Stock, Qty 20+

0
